Bus charging stations:
available 24/7 – safe operation.

New mobility concepts present new challenges – the switchover to electric buses changes more than just the type of drive. Lightning, surges and arc faults pose a risk to availability and seamless operation. In order to reliably protect people and charging infrastructure, a professional and comprehensive protection concept is required.

DEHN protection solutions bus charging stations

See the DEHN protection solutions for yourself. You will find an example presentation of our specific solution and all of the products, documents and services associated with it. If you still have more questions, we are here for you.

The DEHN services
for bus charging stations

We also support you as a producer of wall boxes, as an owner, project developer or planning engineer.

DEHN products for bus charging stations

You are ideally set up with us: We offer you a comprehensive, useful and harmonised complete range of products for surge protection, lightning protection and safety equipment for bus charging stations. For efficient planning, convenient purchasing, seamless installation and ongoing maintenance.

990010

DEHNmid

Metal oxide arrester for medium-voltage systems up to 51 kV for protecting the medium-voltage side; e.g. in transformer stations.

Add  Details

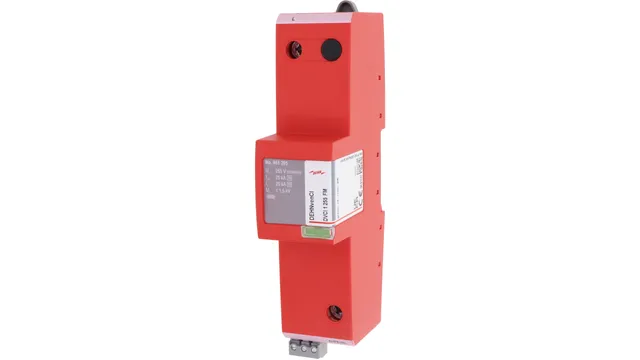

961205

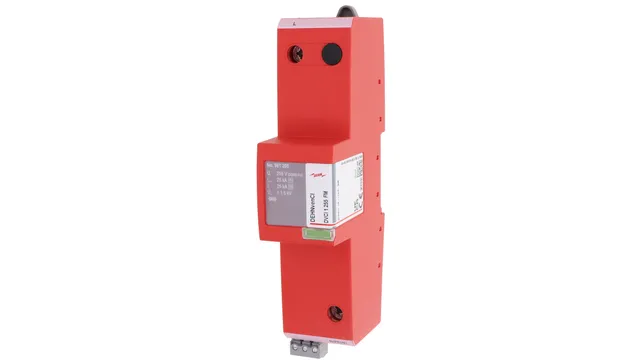

DEHNvenCI FM

Single-pole, spark-gap-based, type 1 + type 2 combined arrester with integrated arrester backup fuse and remote signalling contact. 230/400 V / 50 Hz

Add  Details

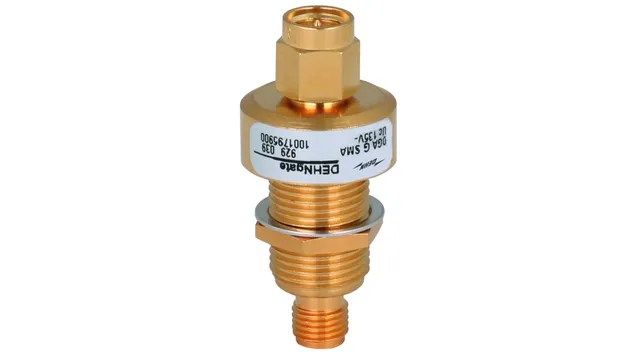

929039

DEHNgate G

TYPE‑2 surge arrester suitable for remote supply, for protecting coaxial antenna systems. With SMA connection system for device and antenna interfaces in coaxial connection systems.

Add  Details

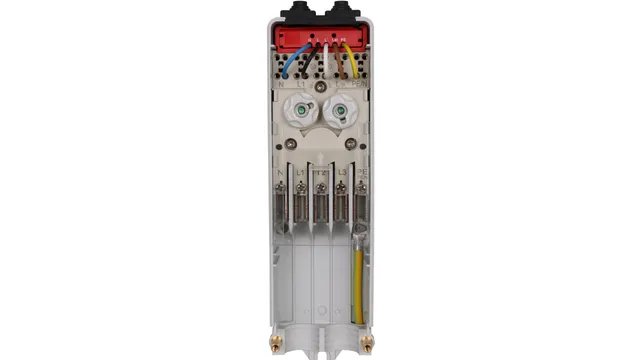

900443

Mast fuse box EK480

With integrated type-2 surge arrester, DEHNcord as a prewired system solution for protecting external LED lighting. With shutdown function in the event of a fault and fault indicator.

Add  Details

961176

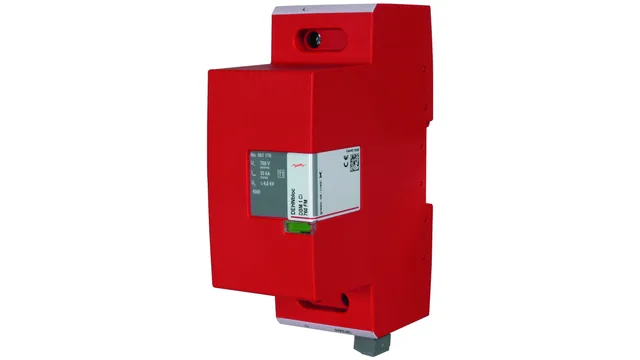

DEHNblox MAXI CI

Single-pole coordinated type-1 lightning current arrester for protecting the low-voltage main distribution board. With integrated arrester backup fuse and remote signalling for 690 V TN and IT systems. Used in transformer stations, for example

Add  Details

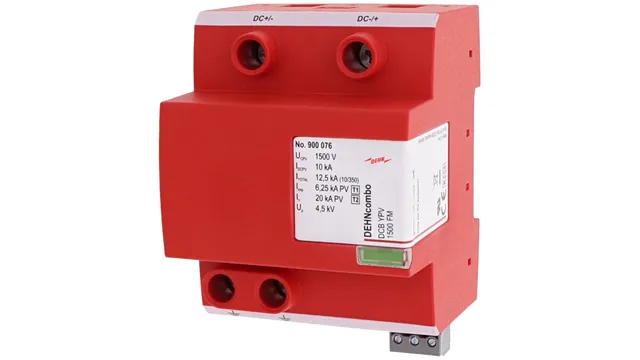

900076

DEHNcombo

Type 1 + type 2 combined arrester with remote signalling contact for PV power supply systems up to 1,500 V DC. Proof of concept for use in battery storage systems up to I sccr 50 kA. Use, for example, in DC-supplied high-power charging stations or battery storage systems.

Add  Details

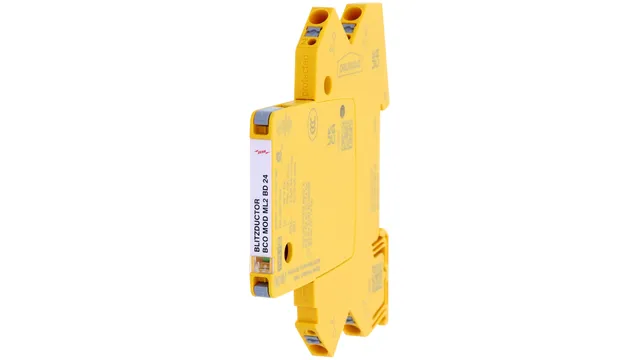

927244

BLITZDUCTORconnect

Space-saving, modular, TYPE‑1 combined arrester of 6 mm width for protecting information and communication technologies. Push-in connection technology with status indication for the protection of 1 pair. Protects, for example, 24 V interfaces or bus signals.

Add  Details

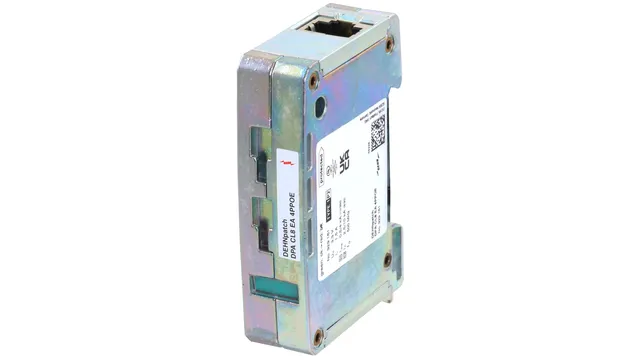

929161

DEHNpatch, Class E

Universal surge arrester for protecting Ethernet applications.

Add  Details

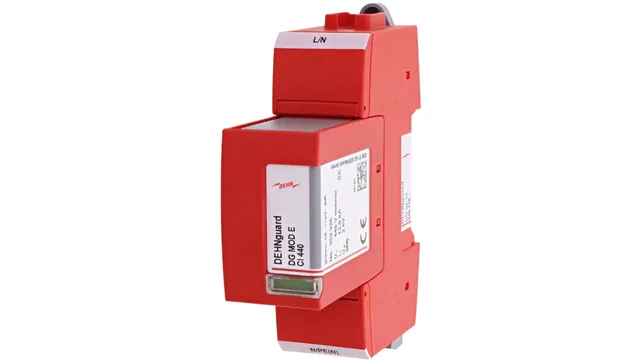

952920

DEHNguard SE CI 440 FM

Single-pole, modular, type 2 surge arrester with integrated arrester backup fuse and remote signalling. For the protection of AC distributors. U n 440 V, for use in TN and IT systems; e.g. use in converter stations.

Add  Details

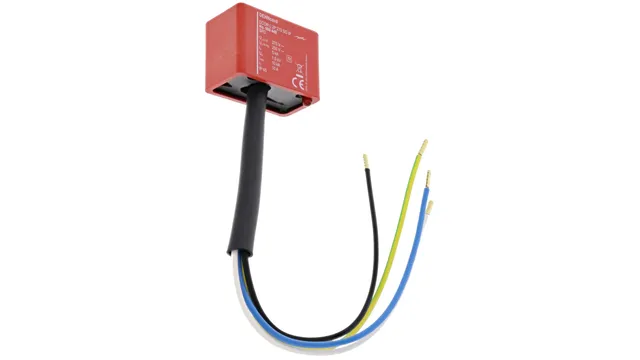

900448

DEHNcord L 2P

DEHNcord type-2 surge arrester, in IP-65 design for the universal protection of outdoor LED lighting. With integrated shutdown function in the event of a fault and fault indication. Also ideal for retrofitting.

Add  Details

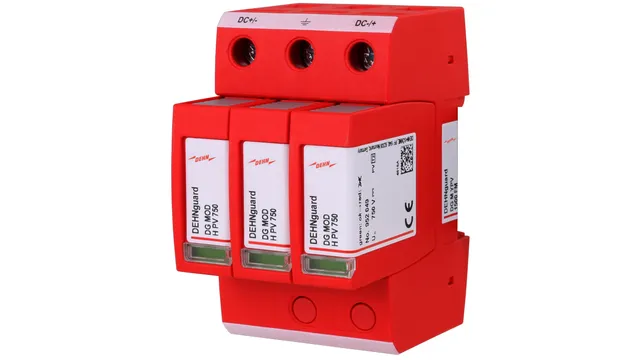

952567

DEHNguard M YPV

Modular, type 2 surge arrester for 1,500 V DC for photovoltaic power supply systems with remote signalling contact. Proof of concept for use in battery storage systems up to I sccr 50 kA. Use, for example, in DC-supplied high-power charging stations or battery storage systems.

Add  Details

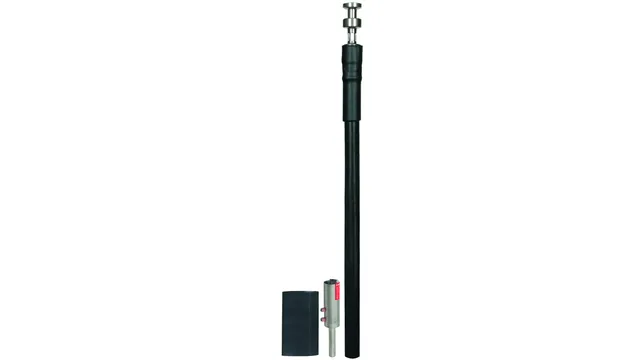

819220

HVI Conductor

High-voltage-resistant, insulated HVI down conductors for safely maintaining separation distances.

Add  Details

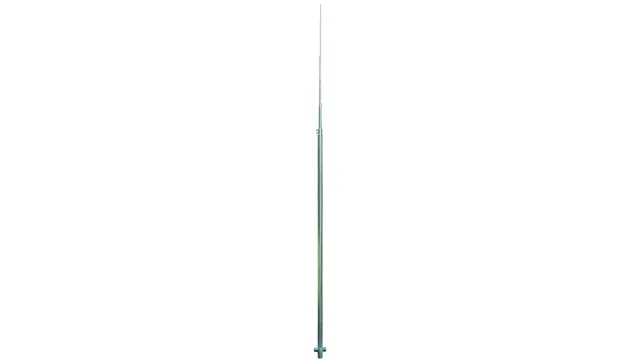

105170

DEHNcon-H

High-voltage-resistant insulated down conductor in a supporting tube. For safely maintaining separation distances.

Add  Details

105400

Air-termination rods, D40

For conventional external lightning protection with earthing clamp and KS connector Dimensioned according to Eurocode 1.

Add  Details

819255

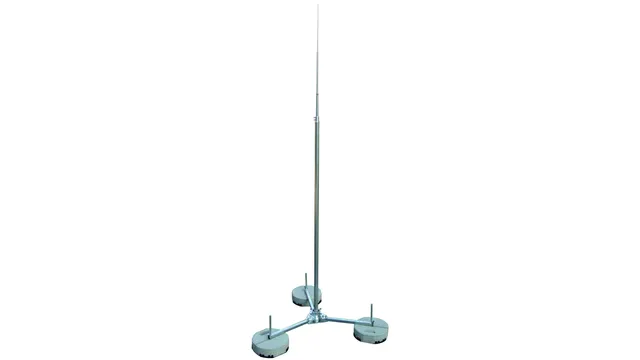

Self-supporting air-termination rods 4 to 9 m

For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°.

Add  Details

620902

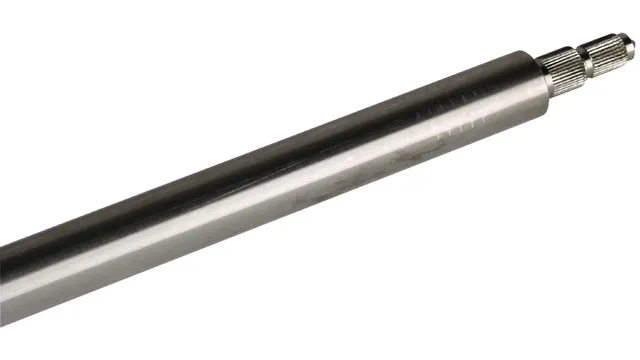

Earth rod

Permanently corrosion-resistant due to StSt (V4A). For setting up earthing systems for down conductors or transformer stations.

Add  Details

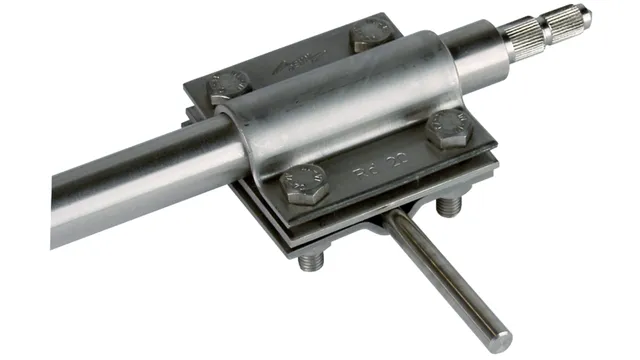

610020

Connection clamps

Permanently corrosion-resistant connection clamps for the cross/parallel connection of earth rods.

Add  Details

556130

Anti-corrosion tape

For the enclosure of above/underground connections.

Add  Details

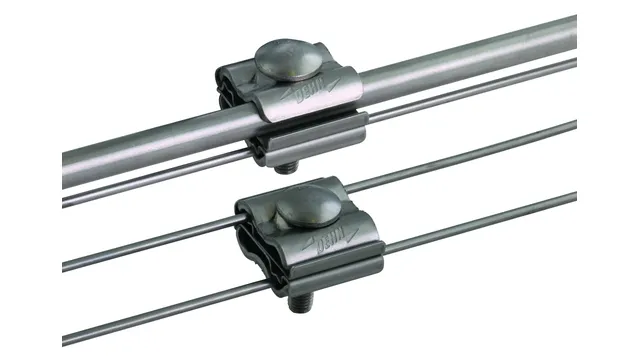

540270

Potential control

Prevent dangerous step and touch voltages; e.g. using tested mesh mats.

Add  Details

319209

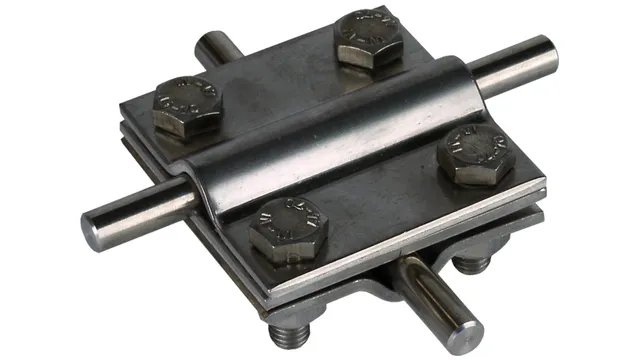

Cross units

Permanently corrosion-resistant due to StSt (V4A). For the aboveground and underground connection of round and flat conductors.

Add  Details

860335

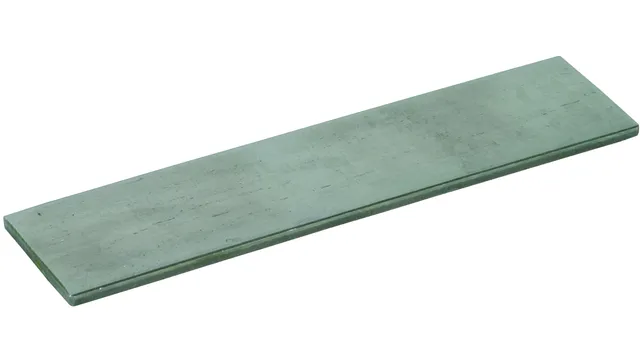

Strips

Flat bar for use in earthing systems, lightning protection systems and in ring equipotential bonding.

Add  Details

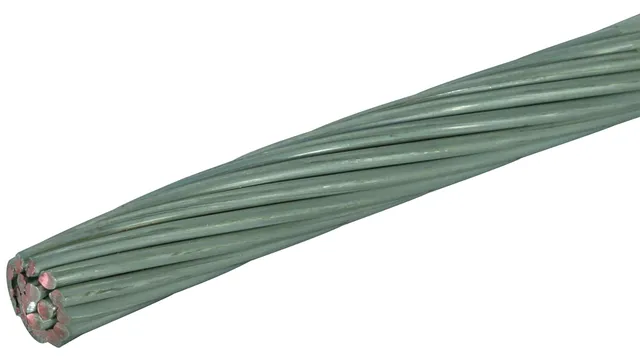

832320

Cables

Tinned copper – for use in lightning protection and earthing systems.

Add  Details

472227

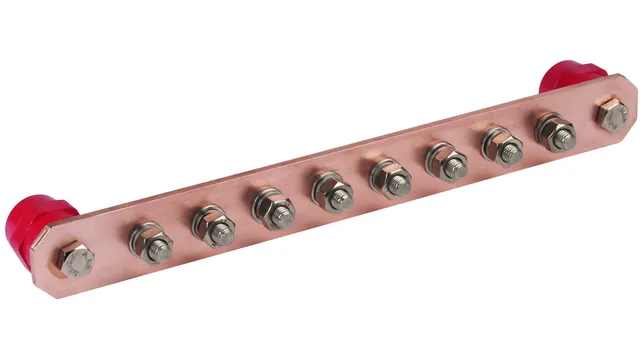

Equipotential bonding bars

Copper design for 8 connections. For connecting to the local earthing system.

Add  Details

785645

Rule 1: Disconnect completely

NH fuse puller with sleeve, for actuating NH fuses of sizes 00, 1, 2 and 3.

Add  Details

785637

Rule 2: Secure against re-connection

Locking element for DIN-rail-mounted devices, 3 modules.

Add  Details

766665

Rule 3: Verify that the installation is dead

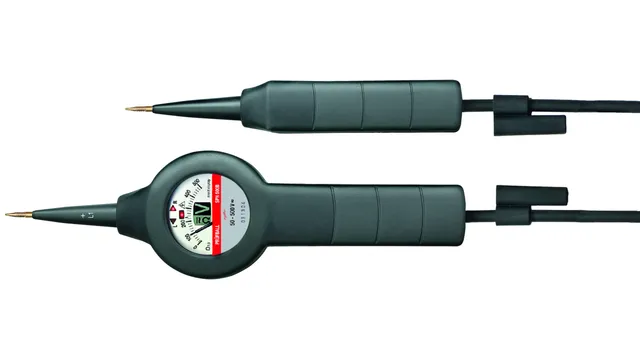

Two-pole SPN voltage detector with phase, rotating field and continuity test.

Add  Details

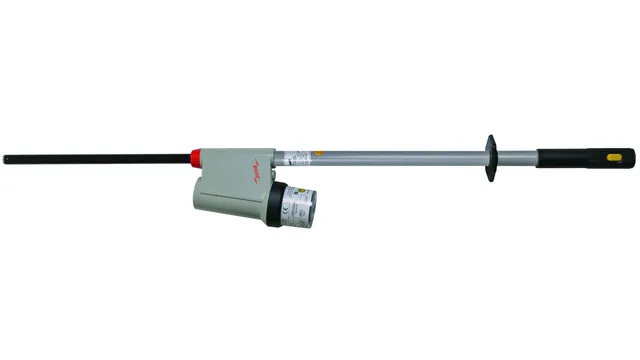

745500

Rule 3: Verify that the installation is dead

Voltage detector PHE 4 30 S: Nominal voltage range 10–30 kV, 50 Hz.

Add  Details

785465

Rule 4: Earthing and short-circuiting

Earthing and short-circuiting devices in a robust sheet metal case.

Add  Details

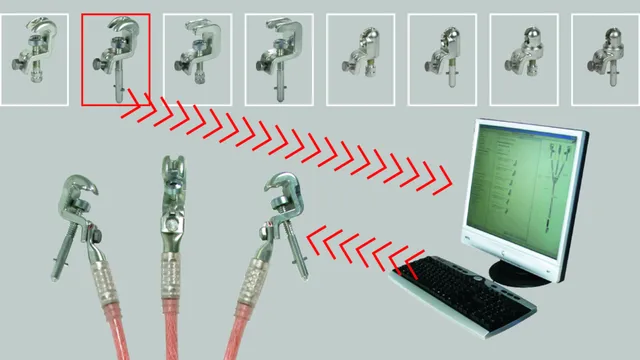

783003

Rule 4: Earthing and short-circuiting

Compose an earthing and short-circuiting device quickly and simply online with the EaS configurator.

Add  Details



Rule 4: Earthing and short-circuiting

Covering materials and insulated mats for covering adjacent live parts. Nominal voltage up to 1,000 V.

Details

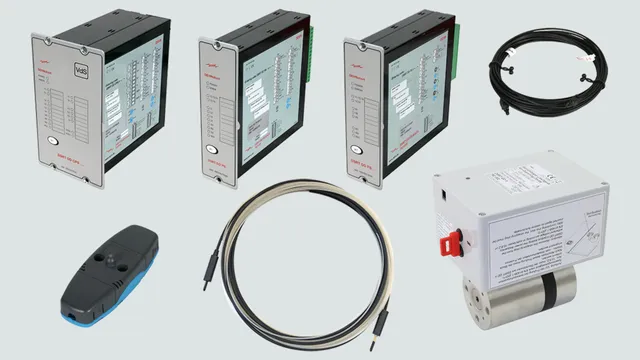

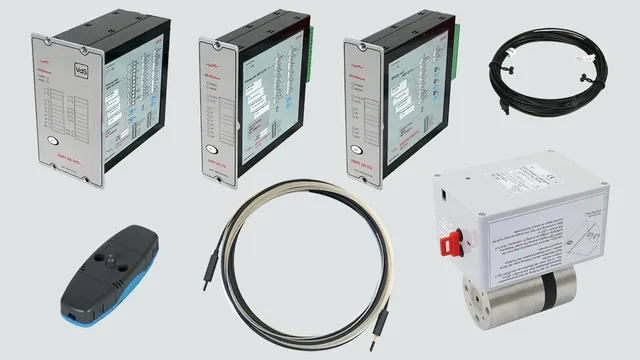

DEHNshort

Active arc fault protection system for switchgear installations up to 110 kA / 690 V.

Details

Downloads

If you need more information or another document format, we are ready to help you.

Brochure Properly protected – Safe charging Protection concepts for the charging infrastructure of electric mobility .pdf 2.3 MB
Brochure Reliable Power for the Industry Arc Fault Protection System DEHNshort .pdf 1.4 MB
Brochure Safety Kit Protect your employees .pdf 5.5 MB
Brochure DEHN protects intelligent power grids Security of supply for today and tomorrow with lightning and surge protection .pdf 3.8 MB
Brochure DEHNconcept Planning Service .pdf 1.1 MB
White Paper  Electromobility Lightning and surge protection for electromobility .pdf 3.1 MB
White Paper Electromobility Lightning and surge protection for electric bus charging stations .pdf 1.2 MB
White Paper Electromobility Earthing and equipotential bonding measures for the charging infrastructure of electric mobility .pdf 1.5 MB
DEHNconcept

DEHNconcept

Use DEHN engineering know-how for your projects. From a risk analysis to the planning of external lightning protection, earthing and surge protection concepts.

DEHNconcept planning service – details

Help and support

We are happy to answer any questions you may have on the topic of the e-mobility.
You can reach your contact person at [email protected]
