HVI light plus
The all-rounder for insulated lightning protection
The all-rounder for insulated lightning protection
The high-voltage-resistant insulated down conductor provides advantages for installation and planning. This makes the multitude of product properties combined within it possible: the integrated protection against electric shock, the unnecessary additional equipotential bonding connection, the approval for use in hazardous areas, an inner conductor of just 16 mm2 and much more. This makes it suitable for a wide range of lightning protection.
All-in-One
20 years of experience rolled into in one conductor
- Solid inner conductor
- Seperation distance in air of 60 cm
- Protection against eelctric shock with an additional grey sheath
- Approval for use in hazardous areas
- Fire class Eca
- Halogen-free
- Signal grey; can be painted over if preffered
- No additional equipotential bonding necessary
All the benefits at a glance
Easy installation and cost savings
thanks to a solid inner conductor and additional equipotential bonding being rendered unnecessary.
Protection against electric shock
with an additional grey sheath.
Visual integration
by using a grey tone that matches concrete walls.
Product versions

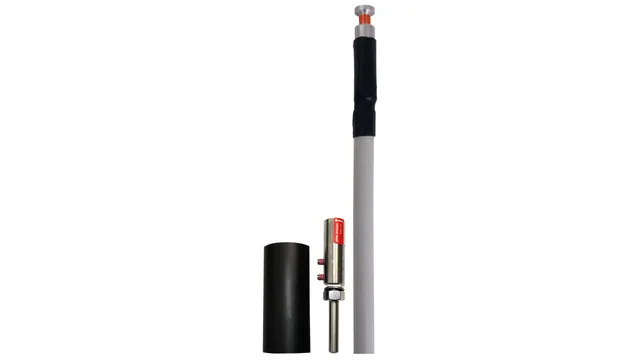

819636
HVI light plus Leitung für Rohrinnenverlegung
Mit einem Kopfstück für die Innenverlegung und einem Anschlusselement (lose beigefügt).

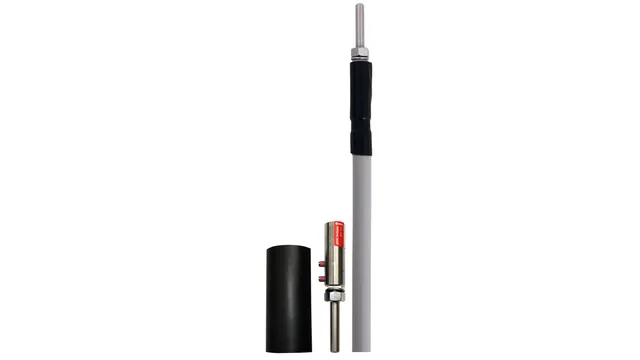

819638
HVI light plus Leitung für Rohraußenverlegung
Mit einem Kopfstück für die Außenverlegung und einem Anschlusselement (lose beigefügt).

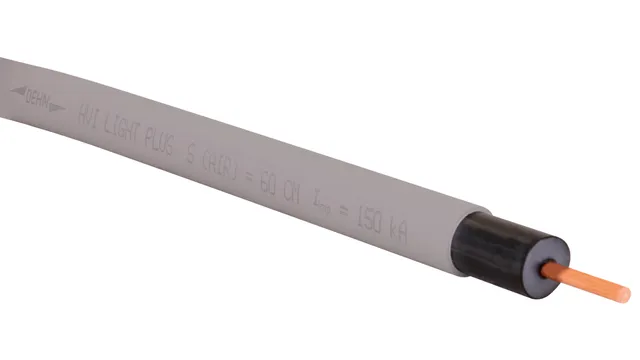

819609
HVI light plus Leitung (abgelängt)
HVI light plus Leitung abgelängt für die Konfektionierung vor Ort. Die Leitung wird als Bund geliefert.

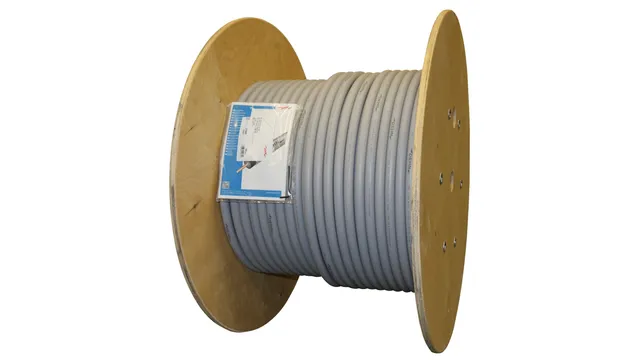

819600
HVI light plus 100 m
Die HVI light plus Leitung für die Konfektionierung vor Ort wird auf einer Einwegtrommel aus Sperrholz inkl. einem Innensechskantschlüssel geliefert. Länge 100 m.
HVI lightning protection:
Which conductor do you need and when?
Downloads
| Flyer | HVI light plus | The all-rounder for insulated lightning protection | .pdf 3.6 MB |
