Supporting tubes for HVI light plus Conductor

Discreet supporting tube with integrated EB spring element for the applications
– Wall mounting
– Inside and outside routing with installation in an n-legged stand (with/without side outlet)
– Installation on metal roof/roof rafter bracket

Without side outlet

Supporting tube with internal sealing end / EB spring element without side outlet. Air-termination tip, StSt, Ø10 mm, length 500/1000 mm.

4 Products

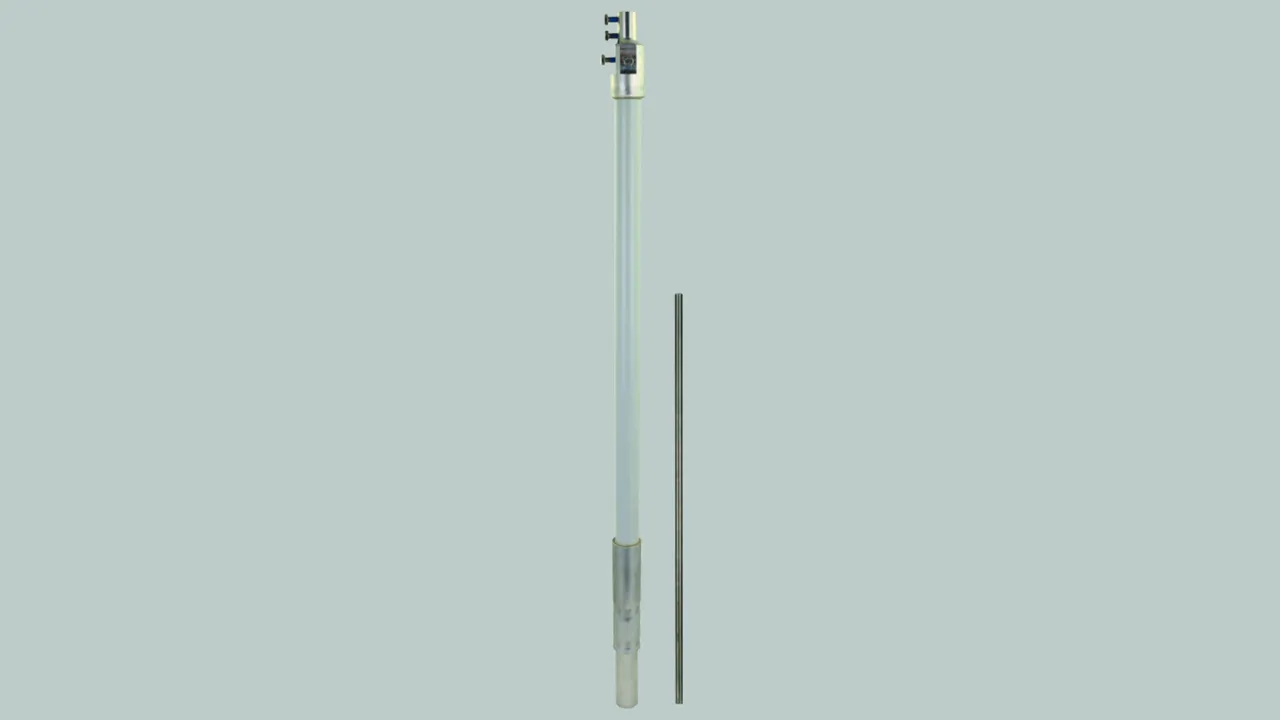

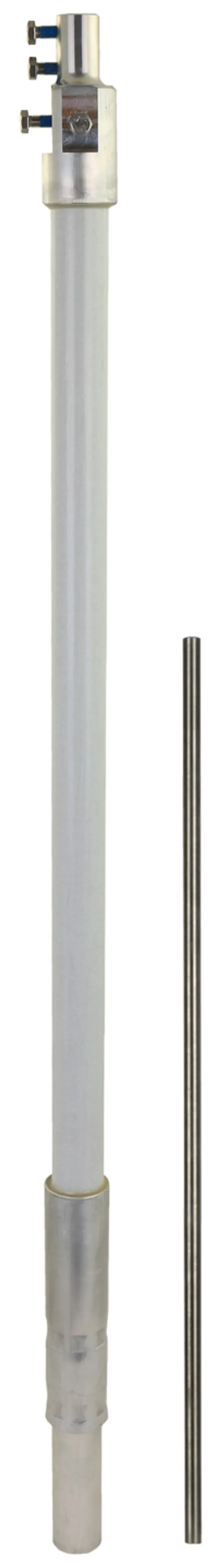

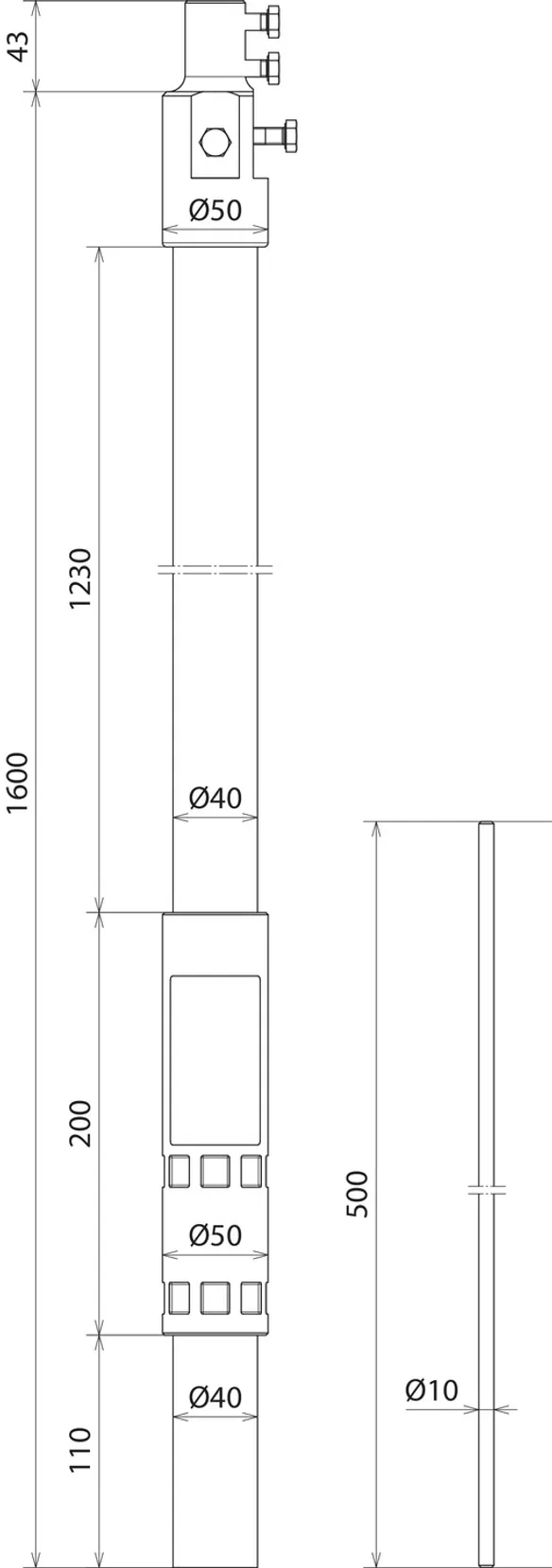

Part No. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

GTIN 4013364494473, Customs tariff No. (EU): 85389099, Gross weight: 2.53 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,100 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 1600 FSP500 HVI LI PL GFK AL V2A
Part No.: 105672
or equivalent.

Certificates

Technical data

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50 °C ... +100 °C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105672 was added to Notepad.

Go to Notepad

Product 105672 was added to the cart.

Go to Web-Shop

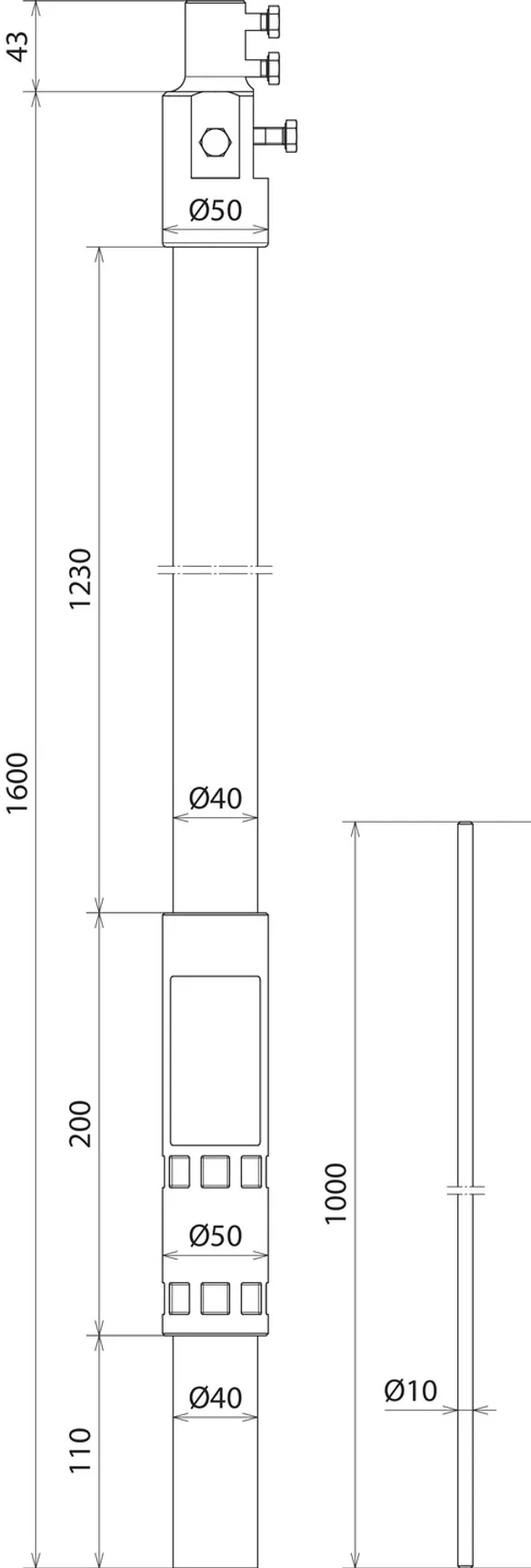

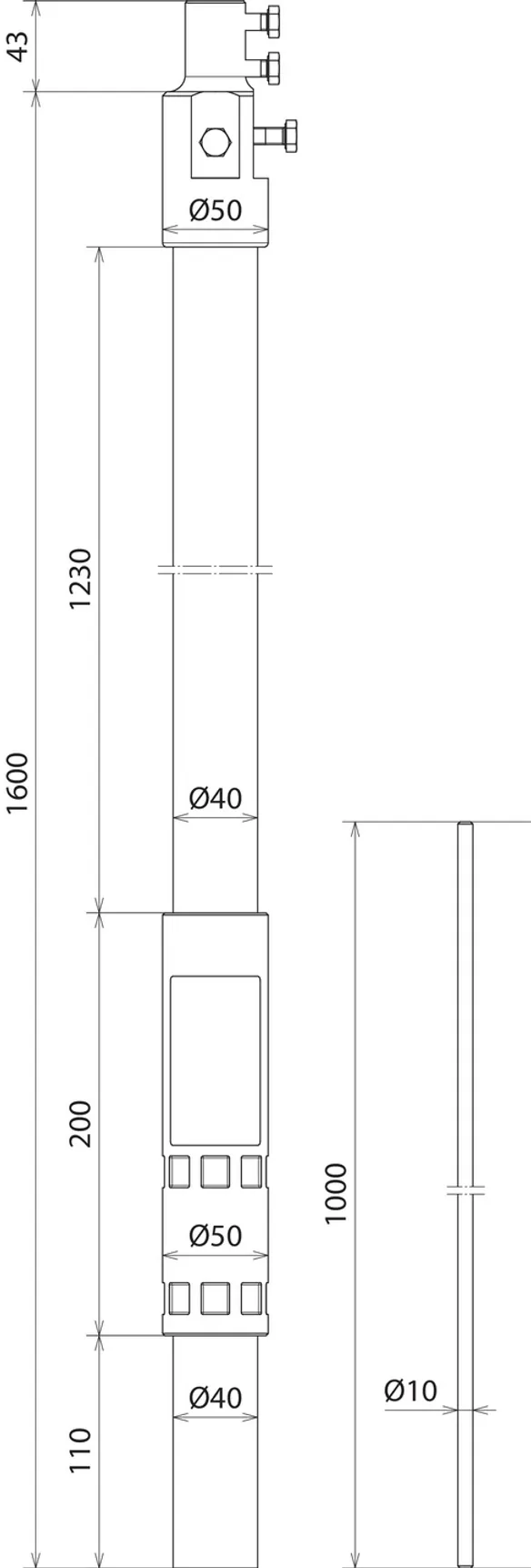

Part No. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

GTIN 4013364494497, Customs tariff No. (EU): 85389099, Gross weight: 2.80 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,600 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 1600 mm
Transport length: 1600 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 1600 FSP1000 HVI LI PL GFK AL V2A
Part No.: 105673
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	1600 mm
Transport length	1600 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105673 was added to Notepad.

Go to Notepad

Product 105673 was added to the cart.

Go to Web-Shop

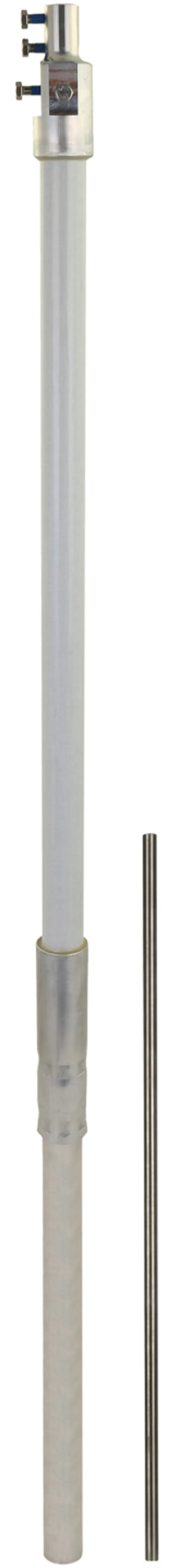

Part No. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

GTIN 4013364494503, Customs tariff No. (EU): 85389099, Gross weight: 3.53 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip, length: 2,900 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP500 HVI LI PL GFK AL V2A
Part No.: 105674
or equivalent.

Certificates

Technical data

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105674 was added to Notepad.

Go to Notepad

Product 105674 was added to the cart.

Go to Web-Shop

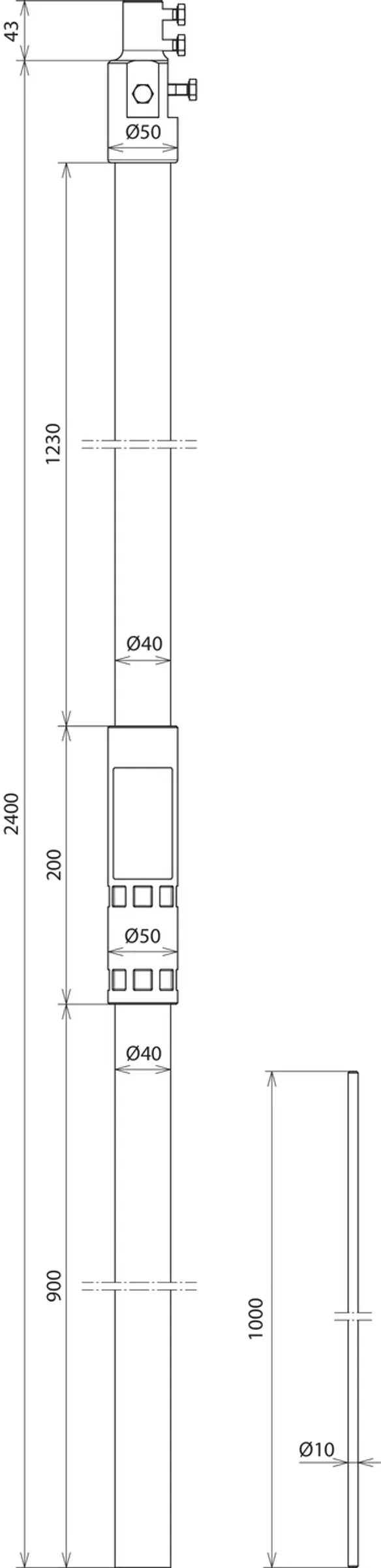

Part No. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

GTIN 4013364494510, Customs tariff No. (EU): 85389099, Gross weight: 3.80 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip, length: 3,400 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP1000 HVI LI PL GFK AL V2A
Part No.: 105675
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105675 was added to Notepad.

Go to Notepad

Product 105675 was added to the cart.

Go to Web-Shop

With side outlet

Supporting tube with internal sealing end / EB spring element with side outlet | air-termination tip, StSt, Ø10 mm, length: 500 / 1,000 mm.

2 Products

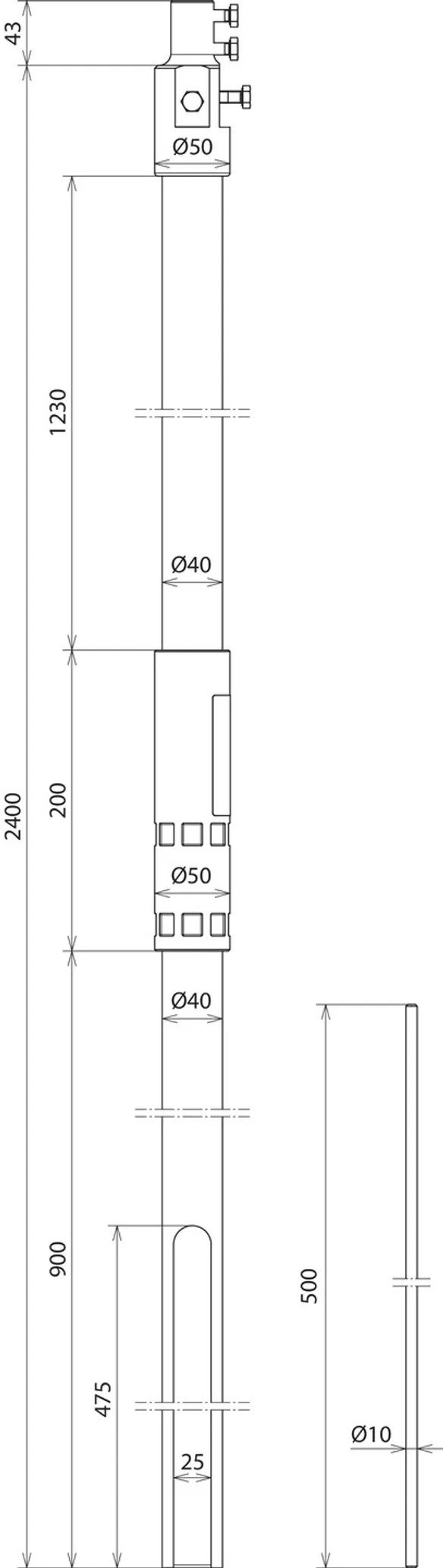

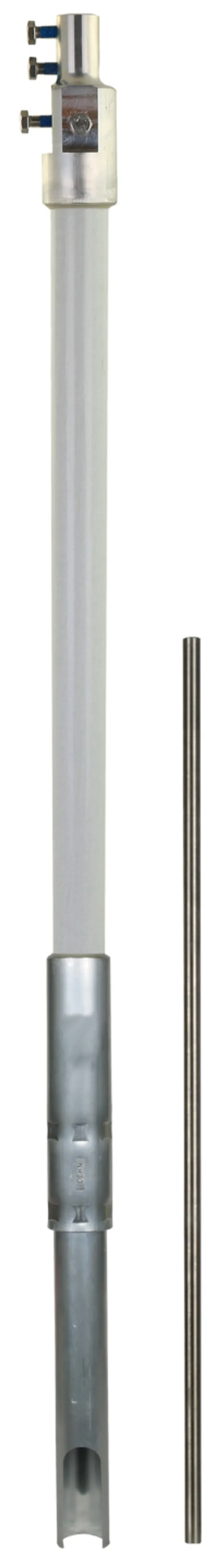

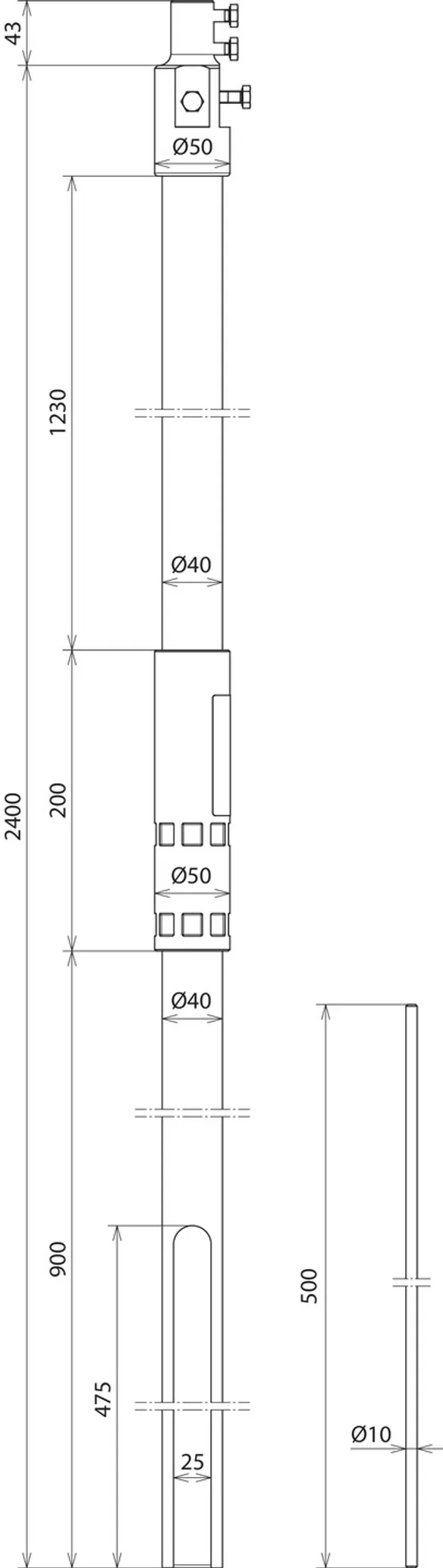

Part No. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

GTIN 4013364500044, Customs tariff No. (EU): 85389099, Gross weight: 3.35 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip
and side outlet, length: 2,900 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 500 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP500 SA HVI LI PL GFK AL
Part No.: 105677
or equivalent.

Certificates

Technical data

Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	500 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105677 was added to Notepad.

Go to Notepad

Product 105677 was added to the cart.

Go to Web-Shop

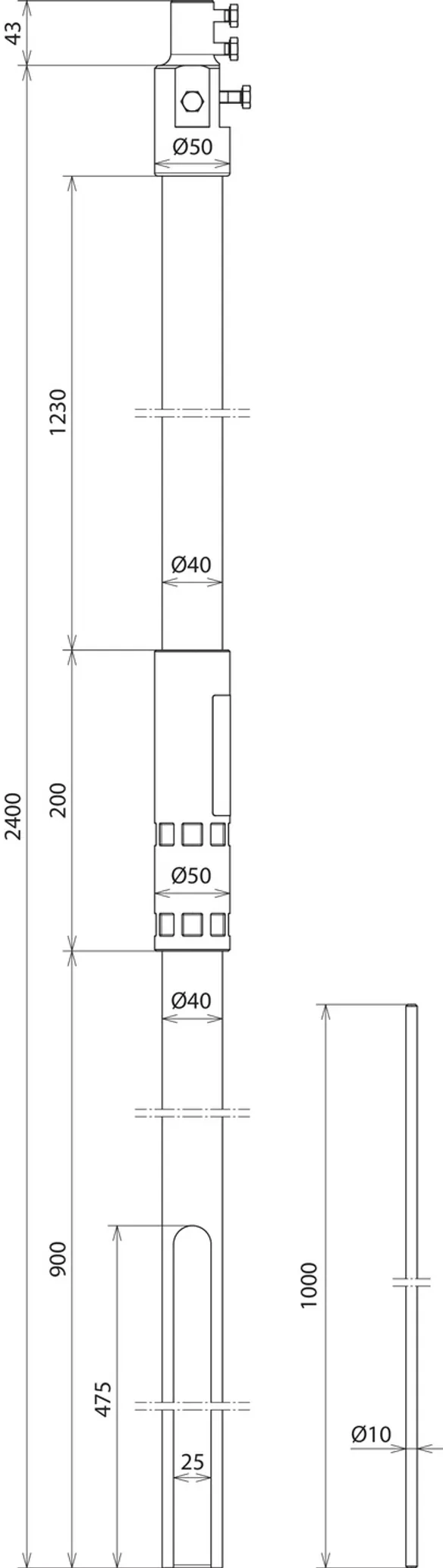

Part No. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

GTIN 4013364500051, Customs tariff No. (EU): 85389099, Gross weight: 3.62 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip
and side outlet, length: 3,400 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2400 mm
Transport length: 2400 mm
Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2400 FSP1000 SA HVI LI PL GFK AL
Part No.: 105678
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2400 mm
Transport length	2400 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105678 was added to Notepad.

Go to Notepad

Product 105678 was added to the cart.

Go to Web-Shop

For metal roof/roof rafter bracket

Supporting tube with internal sealing end / EB spring element for sub-roof installation. Air-termination tip, StSt, Ø10 mm, length 1000 mm.

1 Product

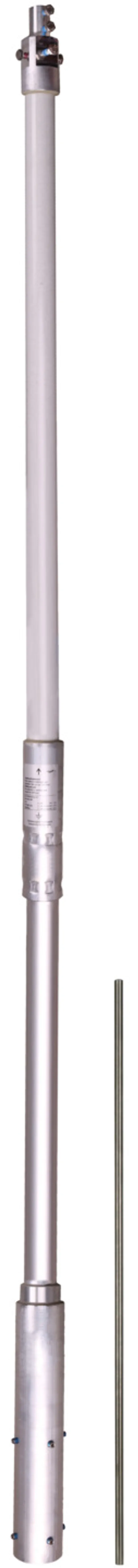

Part No. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

GTIN 4013364499775, Customs tariff No. (EU): 85389099, Gross weight: 4.83 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Supporting tube for HVI light plus Conductor with air-termination tip, length: 3,680 mm, GRP/Al
GRP/Al supporting tubes with internal sealing end
and EB spring element for the HVI light plus Conductor
for maintaining the separation distance to electrically
conductive parts as per DIN EN 62305 (VDE 0185-305-3).
The supporting tubes are dimensioned to Eurocode 1
(DIN EN 1991-1-4 + DINEN 1991-1-4/NA).
Insulating clearance made of glass-fibre reinforced plastic (GRP)
Material factor km = 0.7
Light grey colour, UV-stabilised, one-piece
Combined with air-termination tip, Ø10 mm, length 1000 mm, StSt
Material of supporting tube: GRP / Al
Length of supporting tube: 2680 mm
Transport length: 2680 mm

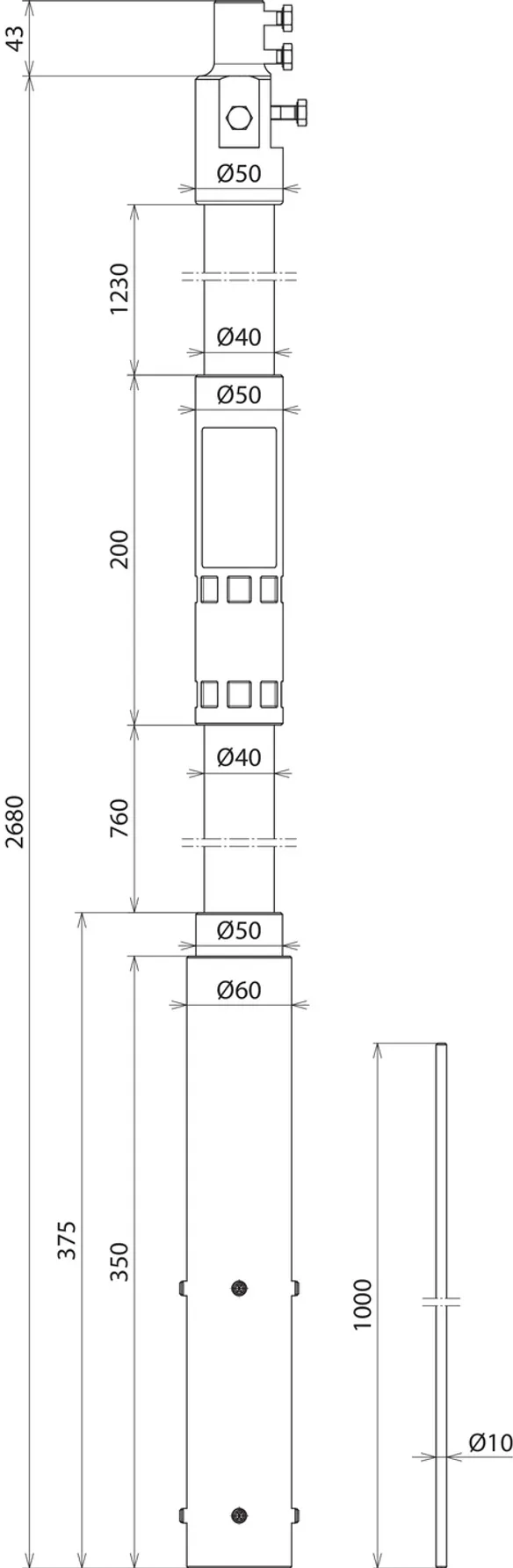

Outside diameter Ø : 40 mm
Length of insulating clearance: 1230 mm
Standard: DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Brand: DEHN
Type: SR D40 2680 FSP1000 DSH GFK AL V2A
Part No.: 105688
or equivalent.

Certificates

Technical data

Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2680 mm
Transport length	2680 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Material of air-termination tip	StSt
Length of air-termination tip	1000 mm
Material of supporting tube	GRP / Al
Length of supporting tube	2680 mm
Transport length	2680 mm
Outside diameter Ø	40 mm
Length of insulating clearance	1230 mm
Wall thickness	4 mm
Material factor km	0.7
Permanent temperature range	-50°C to +100°C
Type	UV-stabilised
Sleeve	50 x 5 mm
Pull-out force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Bending force with a length of 500 mm	200 N (supporting tube insulator as per 62561-8)
Standard	DIN IEC/TS 62561-8 (VDE V 0185-561-8)

Product 105688 was added to Notepad.

Go to Notepad

Product 105688 was added to the cart.

Go to Web-Shop

Results for products (0)

Results for content (0)

Supporting tubes for HVI light plus Conductor

Without side outlet

Part No. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

Product 105672 was added to Notepad.

Product 105672 was added to the cart.

Part No. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

Product 105673 was added to Notepad.

Product 105673 was added to the cart.

Part No. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

Product 105674 was added to Notepad.

Product 105674 was added to the cart.

Part No. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

Product 105675 was added to Notepad.

Product 105675 was added to the cart.

With side outlet

Part No. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

Product 105677 was added to Notepad.

Product 105677 was added to the cart.

Part No. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

Product 105678 was added to Notepad.

Product 105678 was added to the cart.

For metal roof/roof rafter bracket

Part No. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

Product 105688 was added to Notepad.

Product 105688 was added to the cart.

Supporting tubes for HVI light plus Conductor

Without side outlet

Part No. 105672 SR D40 1600 FSP500 HVI LI PL GFK AL V2A

You are not authorized to download 105672_819672.stp

You are not authorized to download 105672_819672.igs

You are not authorized to download 105672_819672.jt

You are not authorized to download 105672_819672.dwg

You are not authorized to download 105672m_D.dxf

Product 105672 was added to Notepad.

Product 105672 was added to the cart.

Part No. 105673 SR D40 1600 FSP1000 HVI LI PL GFK AL V2A

You are not authorized to download 105673_819673.stp

You are not authorized to download 105673_819673.igs

You are not authorized to download 105673_819673.jt

You are not authorized to download 105673_819673.dwg

You are not authorized to download 105673m_D.dxf

Product 105673 was added to Notepad.

Product 105673 was added to the cart.

Part No. 105674 SR D40 2400 FSP500 HVI LI PL GFK AL V2A

You are not authorized to download 105674_819674.stp

You are not authorized to download 105674_819674.igs

You are not authorized to download 105674_819674.jt

You are not authorized to download 105674_819674.dwg

You are not authorized to download 105674m_D.dxf

Product 105674 was added to Notepad.

Product 105674 was added to the cart.

Part No. 105675 SR D40 2400 FSP1000 HVI LI PL GFK AL V2A

You are not authorized to download 105675_819675.stp

You are not authorized to download 105675_819675.igs

You are not authorized to download 105675_819675.jt

You are not authorized to download 105675_819675.dwg

You are not authorized to download 105675m_D.dxf

Product 105675 was added to Notepad.

Product 105675 was added to the cart.

With side outlet

Part No. 105677 SR D40 2400 FSP500 SA HVI LI PL GFK AL

You are not authorized to download 105677.stp

You are not authorized to download 105677.igs

You are not authorized to download 105677.jt

You are not authorized to download 105677.dwg

You are not authorized to download 105677m_D.dxf

Product 105677 was added to Notepad.

Product 105677 was added to the cart.

Part No. 105678 SR D40 2400 FSP1000 SA HVI LI PL GFK AL

You are not authorized to download 105678.stp

You are not authorized to download 105678.igs

You are not authorized to download 105678.jt

You are not authorized to download 105678.dwg

You are not authorized to download 105678m_D.dxf

Product 105678 was added to Notepad.

Product 105678 was added to the cart.

For metal roof/roof rafter bracket

Part No. 105688 SR D40 2680 FSP1000 DSH GFK AL V2A

You are not authorized to download 105688_819688.stp

You are not authorized to download 105688_819688.igs

You are not authorized to download 105688_819688.jt

You are not authorized to download 105688_819688.dwg

You are not authorized to download 105688m_D.dxf

Product 105688 was added to Notepad.

Product 105688 was added to the cart.
