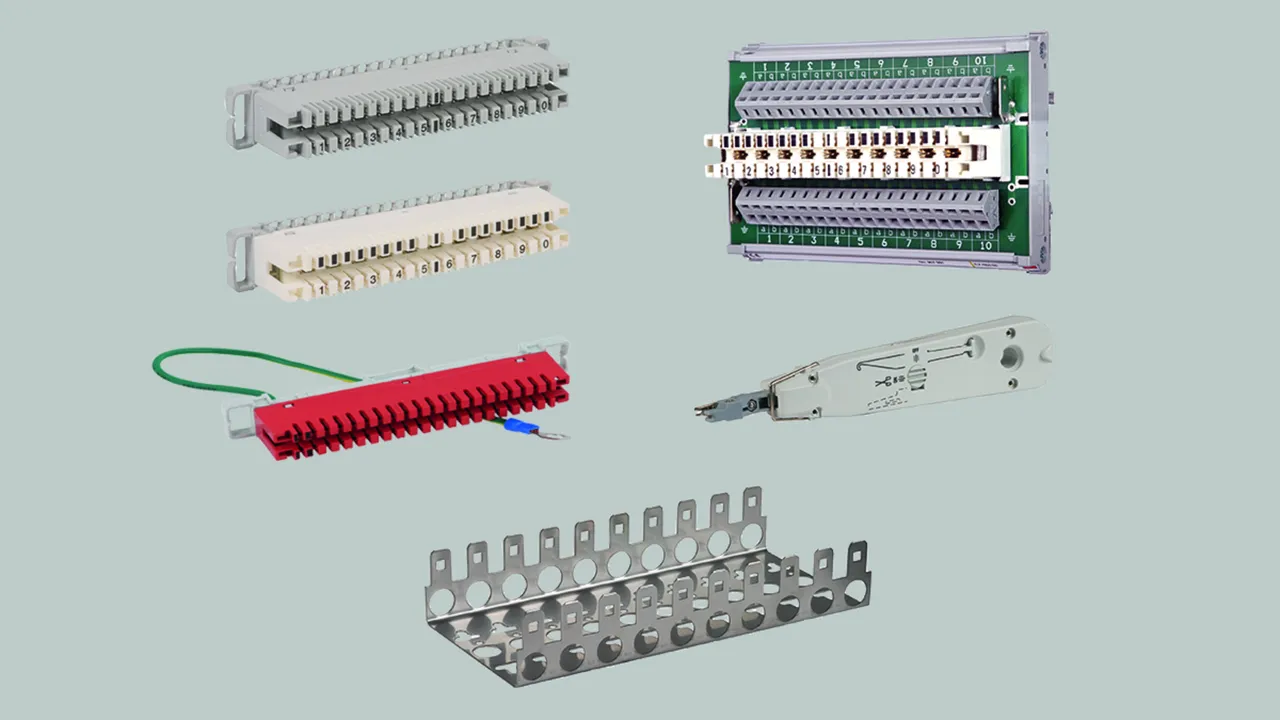

Accessories for LSA Technology

  • Proven insulation displacement method
  • 45° angled blades in the disconnection block ensure a minimum change in cross-section
  • Enhanced stability of the conductor
  • Enhanced corrosion resistance
  • Further accessories available on request

Mounting Frame

Mounting frame for 10 LSA blocks of the 2/10 series, total width: 104.5 mm

1 Product

Part No. 907995 MB2 10 LSA

GTIN 4013364033528, Customs tariff No. (EU): 85389099, Gross weight: 228.00 g, PU: 1.00 pc(s)

Images

Additional information

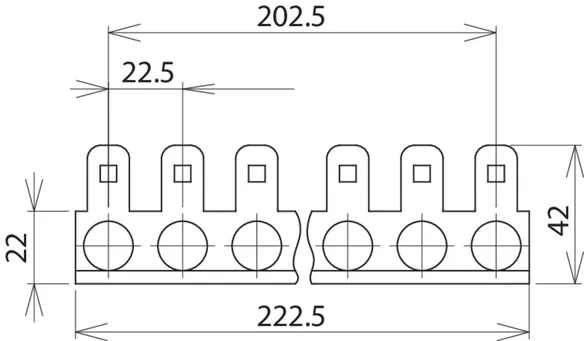

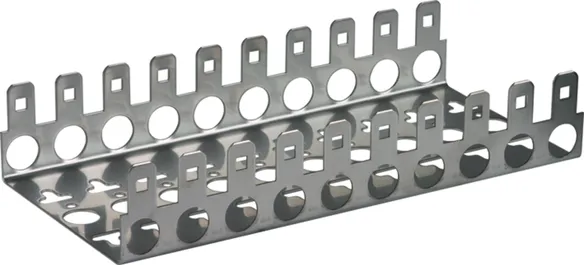

MB2 10 LSA mounting bracket for 10 LSA blocks
Mounting frame LSA, type series 2/10,
out of stainless steel, for supporting 10 LSA
blocks 2/10 for surge protective components
DEHNrapid LSA and DPL 10 G3...

Brand: DEHN
Type: MB2 10 LSA
Part No.: 907995
or equivalent.



Technical data

Dimensions 223 x 105 x 42 mm

Product 907995 was added to Notepad.

Go to Notepad

Product 907995 was added to the cart.

Go to Web-Shop

Insertion Tool

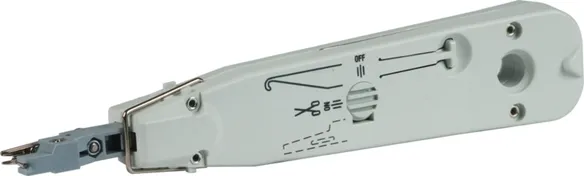

Insertion tool with sensor for LSA technology for connecting the wires and simultaneously cutting them to the required length. With fold-out extraction hook and blade.

1 Product

Part No. 907994 AW2 LSA

GTIN 4013364033511, Customs tariff No. (EU): 82055980, Gross weight: 105.20 g, PU: 1.00 pc(s)

Images

Additional information

AW2 LSA insertion tool for LSA technology
Insertion tool for LSA terminal blocks, series 2/10,
with sensor, for connecting the wires and
simultaneous cutting of residual lengths,
with extractor hook and unlatching blade

Brand: DEHN
Type: AW2 LSA
Part No.: 907994
or equivalent.



Technical data

Colour white ○

Product 907994 was added to Notepad.

Go to Notepad

Product 907994 was added to the cart.

Go to Web-Shop

Terminal Block

Series 2 for LSA technology for inseparably connecting 10 pairs each on the cable and routing side. Accommodates DPL 10 G3 arresters. Parallel protective circuit only.

1 Product

Part No. 907997 AL2 10DA LSA

GTIN 4013364033542, Customs tariff No. (EU): 85369010, Gross weight: 51.40 g, PU: 1.00 pc(s)

Images

Additional information

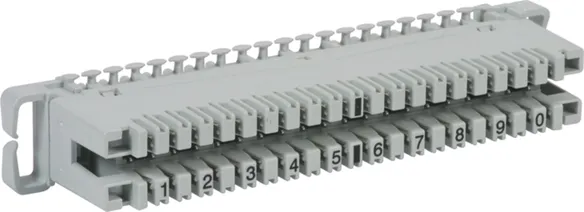

AL2 10DA LSA terminal block for LSA technology
Terminal block LSA, type series 2/10,
for connecting 10 pairs each - on the cable and
routing side, conductor diameter 0,4 – 0,8 mm,
also for plugging of surge protective components
DPL 10 G3...

Brand: DEHN
Type: AL2 10DA LSA
Part No.: 907997
or equivalent.

Certificates



Technical data

Test standards DIN 47608-1, -2
Diameter of solid conductors 0.40-0.80 mm
Conductor diameter with insulation 0.70-1.50 mm

Product 907997 was added to Notepad.

Go to Notepad

Product 907997 was added to the cart.

Go to Web-Shop

Disconnection Block

Series 2 for LSA technology for connecting 10 pairs each on the cable and routing side. Protection is provided between the disconnection contacts as soon as DRL components are plugged in. DPL 10 G3 arresters can also be plugged into the disconnection block.

1 Product

Part No. 907996 TL2 10DA LSA

GTIN 4013364033535, Customs tariff No. (EU): 85369010, Gross weight: 60.00 g, PU: 1.00 pc(s)

Images

Additional information

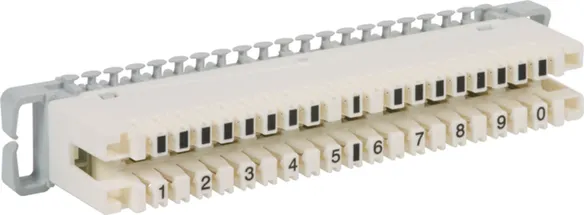

TL2 10DA LSA disconnection block for LSA technology
Disconnection block LSA, type series 2/10,
for connecting 10 pairs each - on the cable and
routing side, conductor diameter 0,4 – 0,8 mm,
also for plugging of surge protective components
DEHNrapid LSA

Brand: DEHN
Type: TL2 10DA LSA
Part No.: 907996
or equivalent.

Certificates



Technical data

Test standards DIN 47608-1, -2
Approvals compliance with DTAG TS 0272/96
Diameter of solid conductors 0.40-0.80 mm
Conductor diameter with insulation 0.70-1.50 mm

Product 907996 was added to Notepad.

Go to Notepad

Product 907996 was added to the cart.

Go to Web-Shop

Earthing Plug

Series 2 for LSA technology for connecting up to 38 earth drain wires or unused signal cores. With earth wire and M4 ring cable lug.

1 Product

Part No. 907993 EL2 38EA LSA

GTIN 4013364048584, Customs tariff No. (EU): 85369010, Gross weight: 59.80 g, PU: 1.00 pc(s)

Images

Additional information

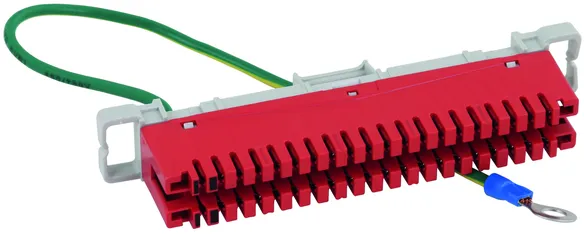

Earthing plug for LSA technology
Earth wire block LSA, type series 2,
for connecting 38 earth wires,
wire diameter 0.4 – 0.8 mm

Brand: DEHN
Type: EL2 38EA LSA
Part No.: 907993
or equivalent.

Certificates



Technical data

Earthing via earthing conductor with M4 ring cable lug
Diameter of solid conductors 0.40 - 0.80 mm
Conductor diameter with insulation 0.70 - 1.50 mm
Colour red ●

Product 907993 was added to Notepad.

Go to Notepad

Product 907993 was added to the cart.

Go to Web-Shop

Routing Module for Disconnection Blocks with LSA Spring-Loaded Terminal

DIN rail mounted routing module with LSA disconnection block of the 2/10 series as well as spring-loaded terminals for variable wire connection. DPL and DEHNrapid LSA surge arresters can be plugged into the routing module.

1 Product

Part No. 907991 TL2 10DA CC

GTIN 4013364112988, Customs tariff No. (EU): 85389099, Gross weight: 213.20 g, PU: 1.00 pc(s)

Images

Additional information

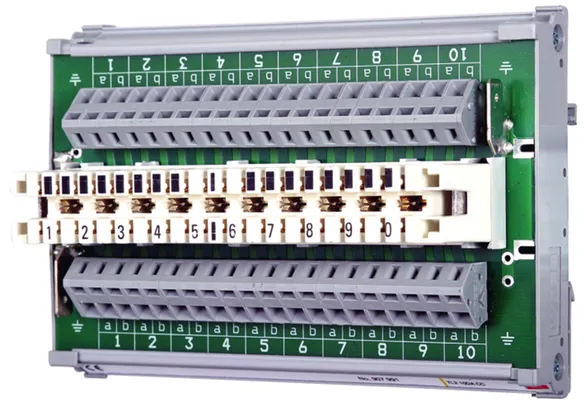

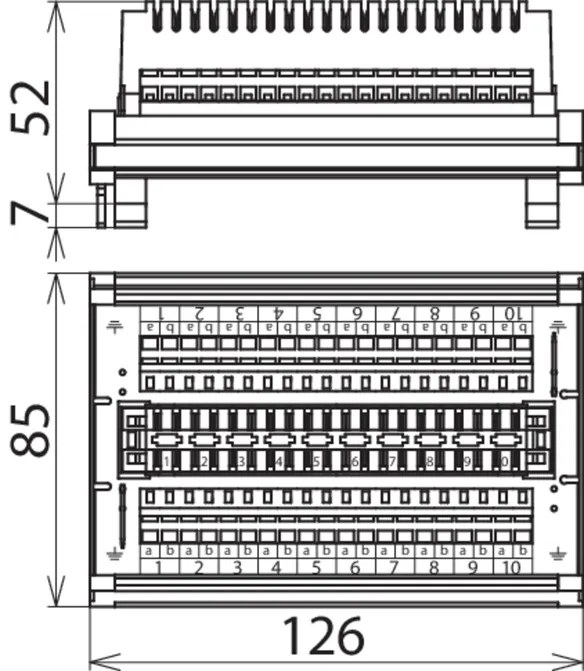

DIN rail mounted TL2 10DA CC routing module for disconnection blocks
DIN rail mounted routing module for disconnection blocks equipped
with LSA disconnection block 2/10 as well as spring loaded terminals
for variable wire connection. DPL and DEHNrapid LSA surge arresters
can be plugged into the routing module.


Brand: DEHN
Type: TL2 10DA CC
Part No.: 907991
or equivalent.

Certificates



Technical data

Carrying capacity of connection components D1 Total lightning impulse current (10/350 µs) (Iimp ) 5 kA
For mounting on 35 mm DIN rails acc. to EN 60715
Connection (input / output) spring or LSA / spring or LSA
Earthing via DIN rail / flat connector 6.3 mm
Diameter of solid conductors 0.40-0.80 mm
Conductor diameter with insulation 0.70-1.60 mm
