Lightning protection
of data centres
of data centres
Reliably intercept lightning strikes and channel them into the earthing system via the down-conductor system – this is the task of the external lightning protection system.
Product recommendation

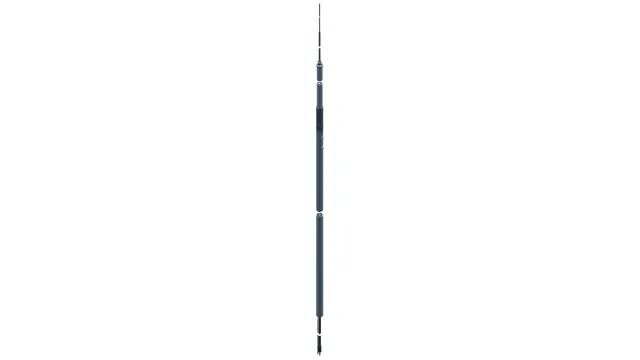

819730
Air-Termination Mast with HVI Conductor
Air termination mast with HVI Conductor, for keeping the separation distance from conductive parts according to IEC 62305-3

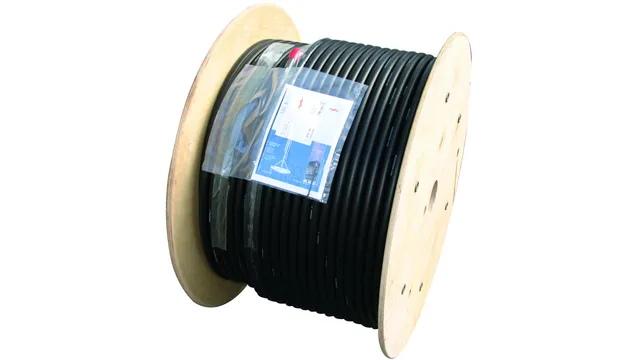

819135
HVI long Conductor
High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts as per DIN EN 62305-3 (VDE 0185-305-3).
840018

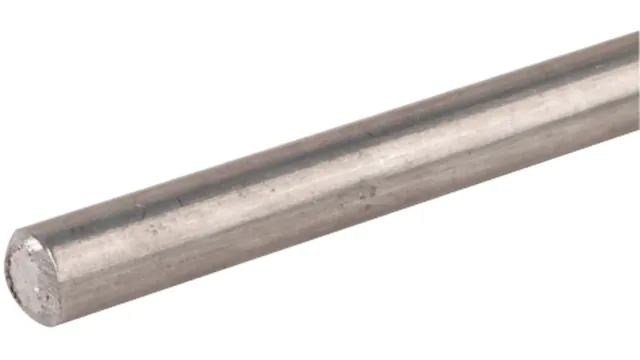

Roundwire
Aluminium wire according to EN 62561-2, soft, twistable, for use in lightning protection systems as an air-termination, down or equipotential bonding conductor.

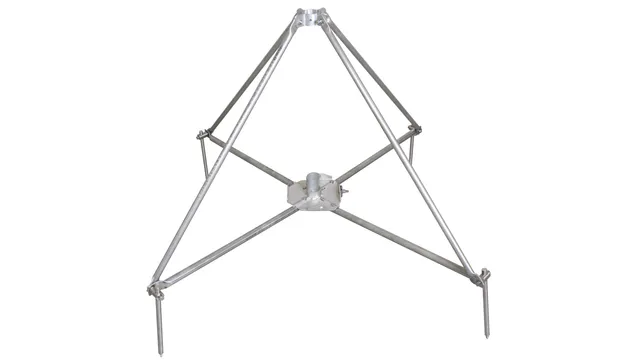

107490
Four-legged stand
for supporting tubes D 50 mm with side outlet or air-termination rod D 40 mm with reduction accessories.

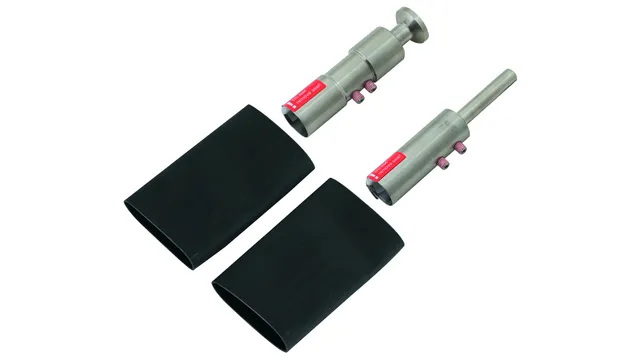

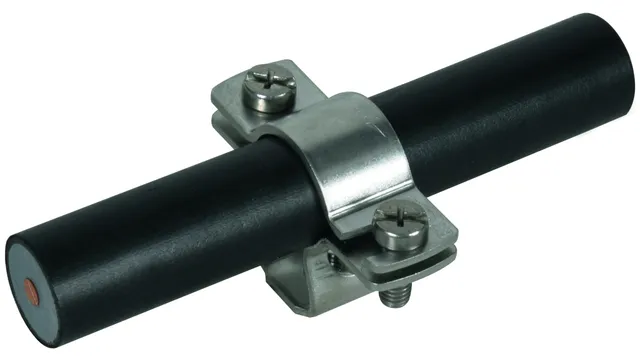

819145
Conductor fixings
Connection elements for sealing the HVI long Conductor at both ends

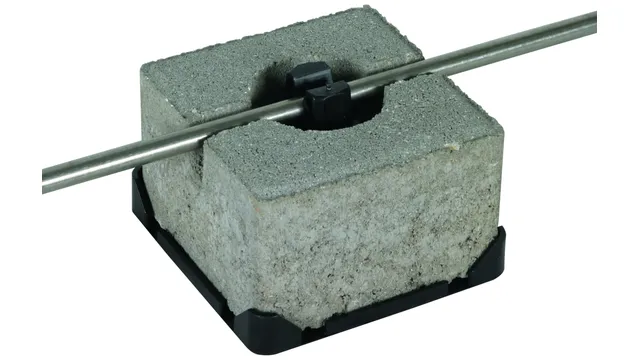

253026

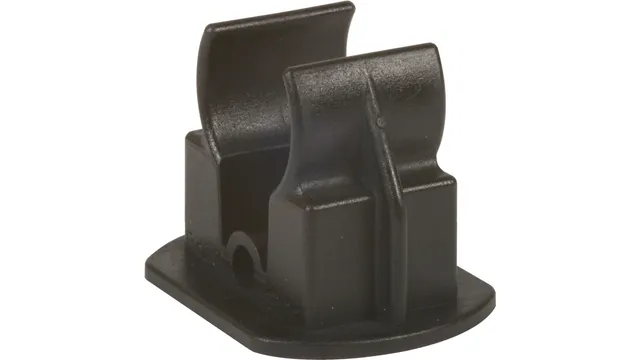

Conductor fixings
For laying the HVI light Conductor / HVI Conductor on a flat roof.
472209
UNI disconnecting clamp
For connecting the down conductors with the earth entry rods or for combining conductors made of different materials.

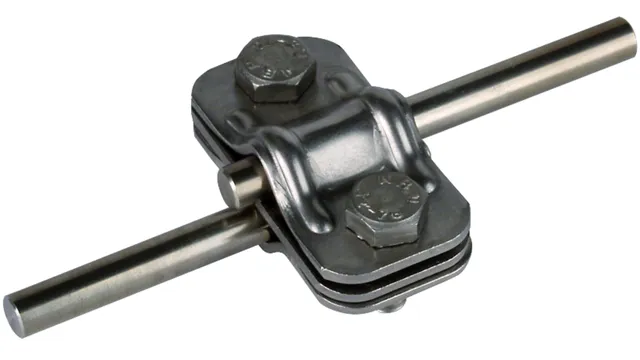

459129
UNI Disconnecting Clamps
UNI disconnecting clamp according to EN 62561-1, for connecting down conductors with earth entry rods, with intermediate plate for two round conductors.

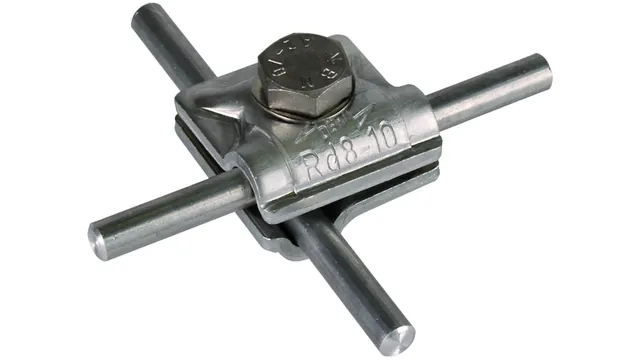

390551
MMV clamp
Mini multipurpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp, with anti-rotation element.

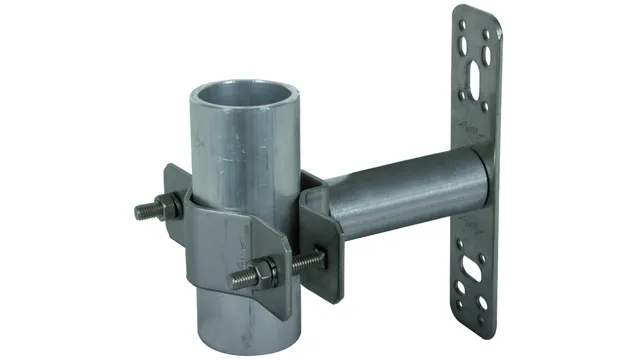

105348
Wall mounting bracket
for vertical mounting, for air-termination rods D40, DEHNcon-H or DEHNiso Combi supporting tubes.

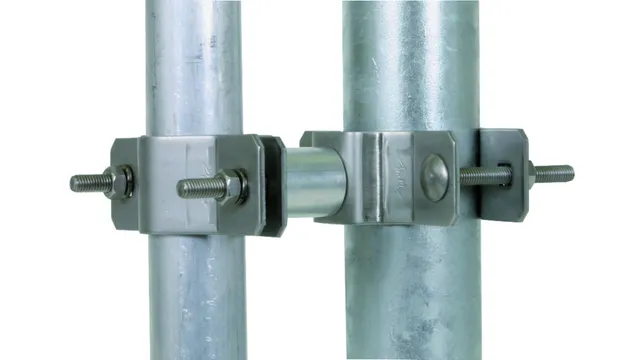

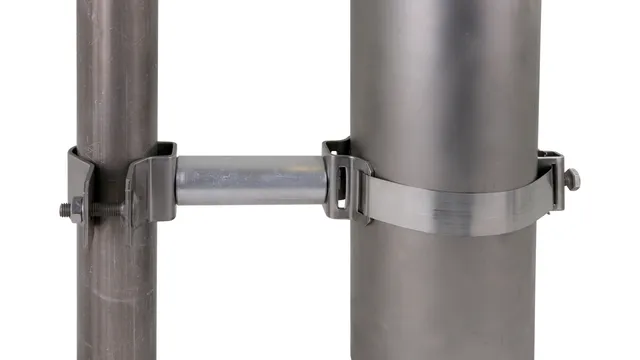

105161
Fixing clamp for pipes
Clamp for fixing the supporting tube, e.g. on the antenna pole. With spacer, length 30 mm for adjusting antenna supports.

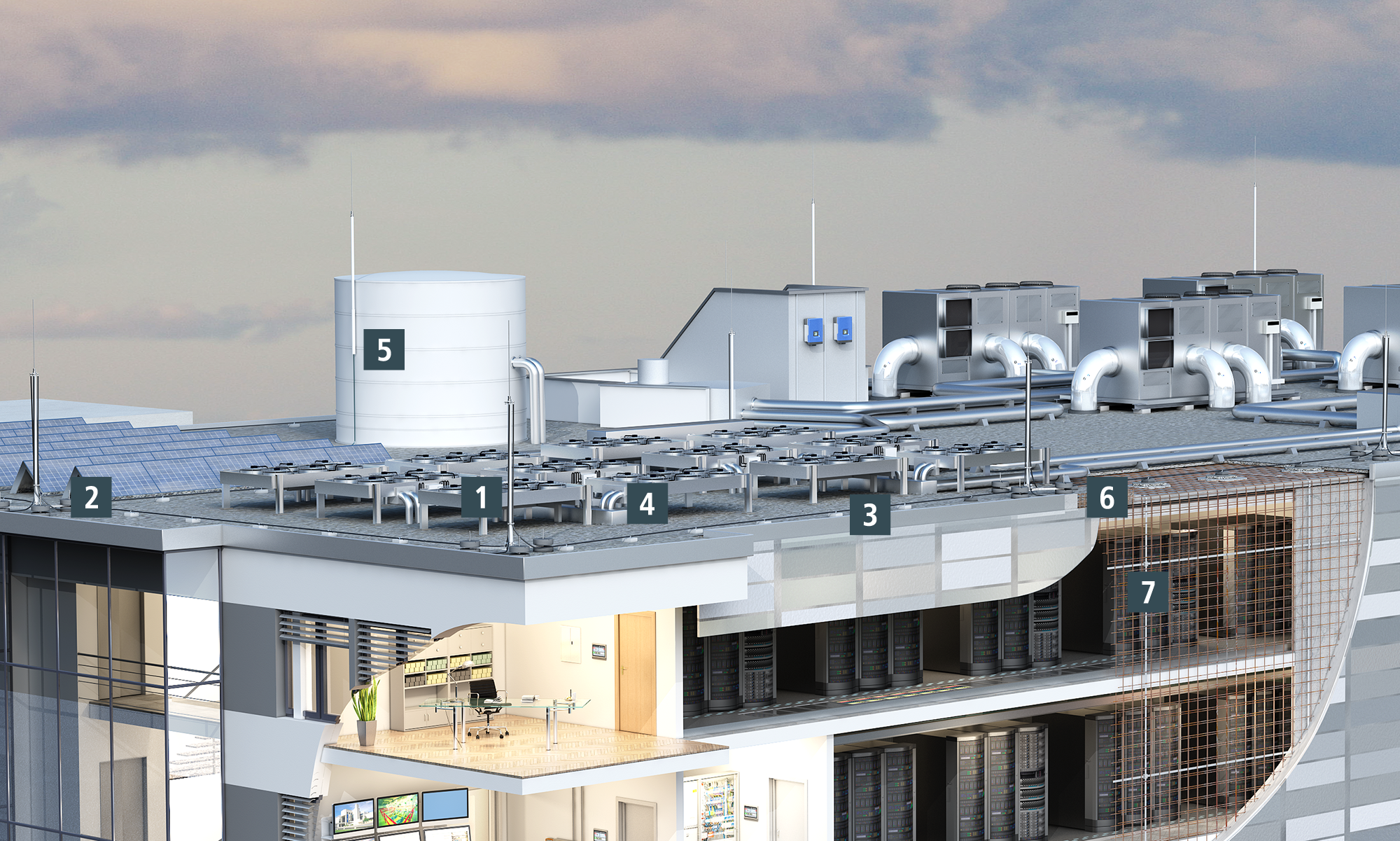

Protection concept for external lightning protection and shielding
Reliably maintain separation distances with HVI Conductors
When it comes to data centres with LPS class I, the planning engineer is faced with the challenge of placing the required number of air-termination rods at the correct separation distances. Roofs dense with mounted structures make this placement difficult.
The HVI lightning protection system offers a reliable, space-saving and simple solution. Here the conductor carrying the lightning current is wrapped in insulating material so that you can very easily maintain the necessary separation distances to other conductive building parts or electrical cables and pipelines. And no further actions are necessary.
Using parts of a building for lightning protection
Another option for minimising the separation distance is to use the building structure as a component of the lightning protection system. The shielding measures and the arising equipotential surfaces reduce the electromagnetic field and relieve electrical cables and systems.
