HVI Conductor / HVI long Conductor

HVI Conductor / HVI long Conductor

High-voltage-resistant, insulated down conductor for maintaining the separation distance from electrically conductive parts according to IEC 62305-3.

For use up to an equivalent separation distance of s ≤ 75 cm (in air) or s ≤ 150 cm (solid building material).
The HVI long Conductor meets the requirements of DIN IEC/TS 62561-8 (VDE V 0185-561-8).
Processing temperature -5 to +40 °C and permanent temperature range (in case of fixed installation) of -30 to +70 °C to be observed.

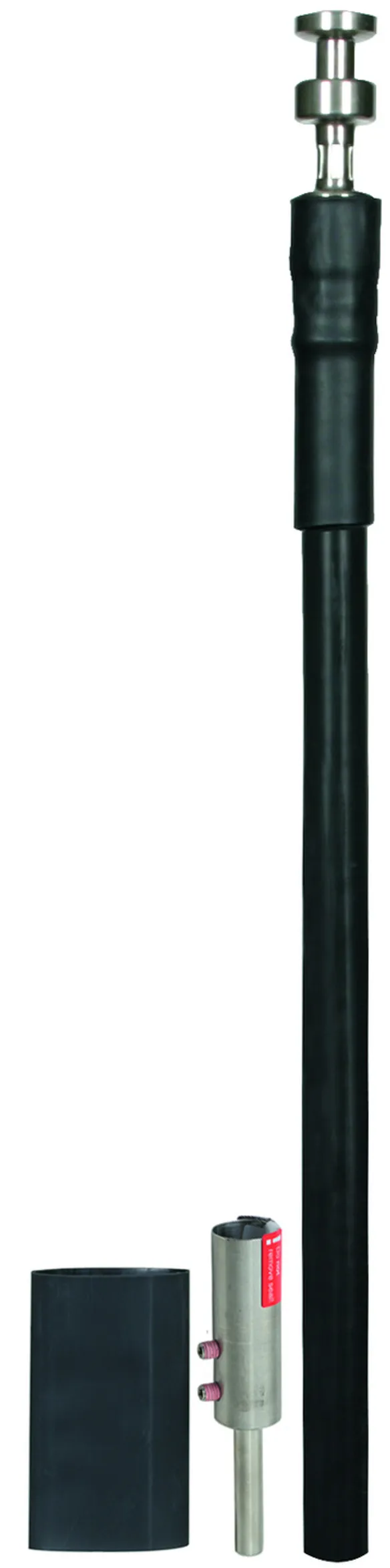

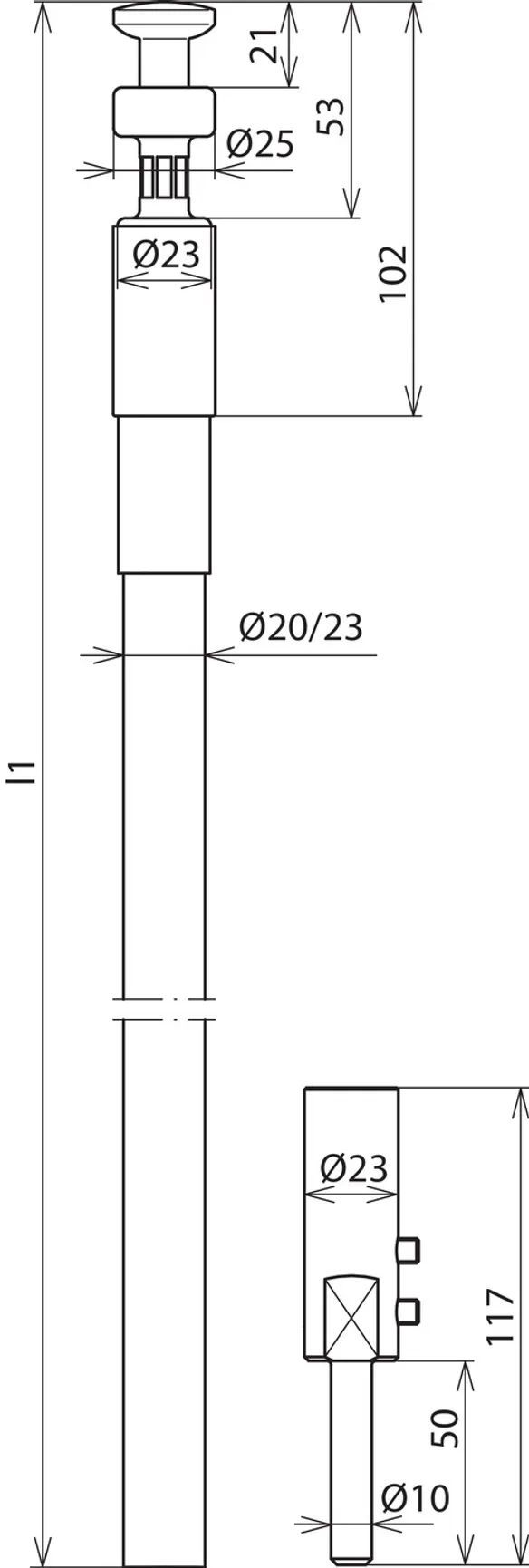

HVI Conductor (pre-assembled, installation inside the supporting tube)

Art.-Nr. 819220
HVI RIV 75 20 L6M SW M
  • Loading
  •
  •
item

HVI long Conductor (cut to length)

Art.-Nr. 819131
HVI LO 75 20 L... SW M
  • Loading
item

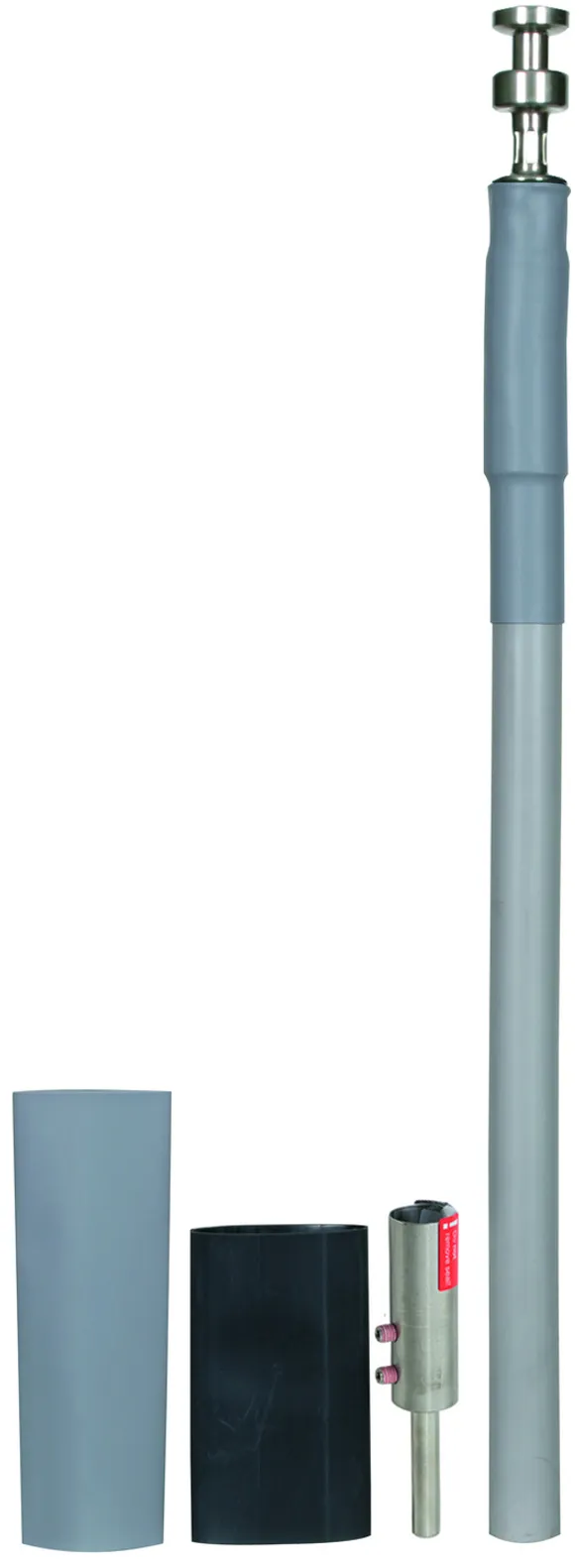

HVI Conductor (pre-assembled, installation inside the supporting tube)

Art.-Nr. 819223
HVI RIV 75 23 L6M GR M
  • Loading
  •
  •
item

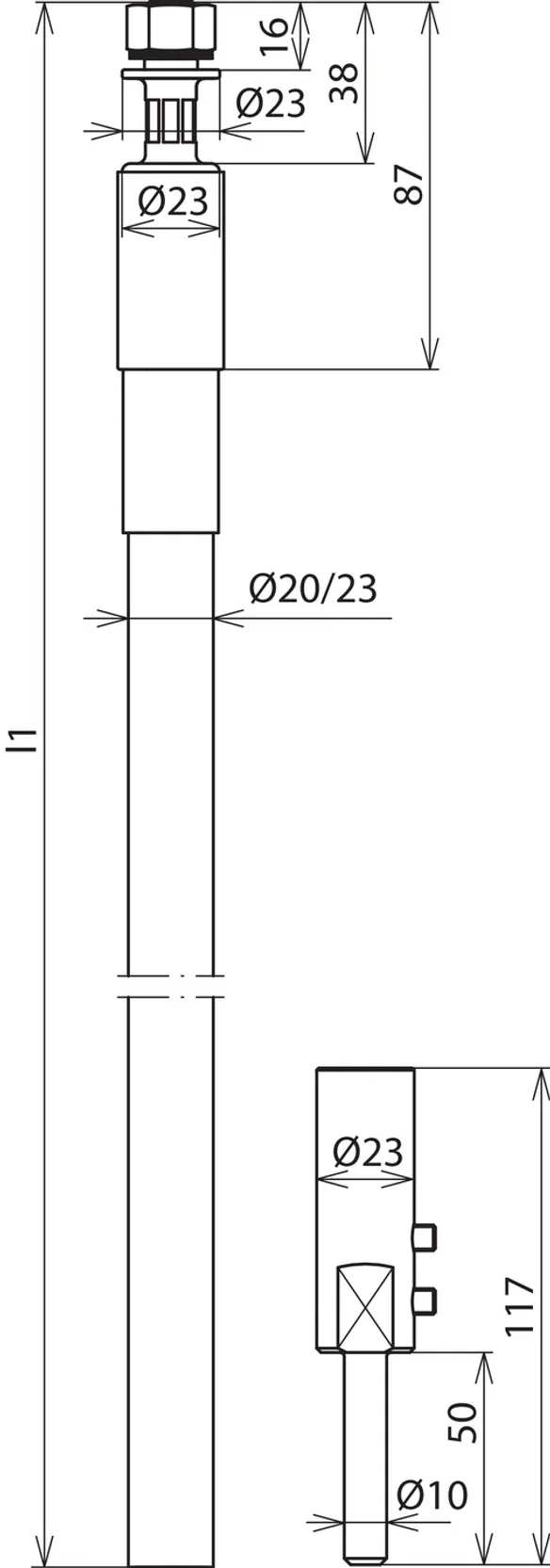

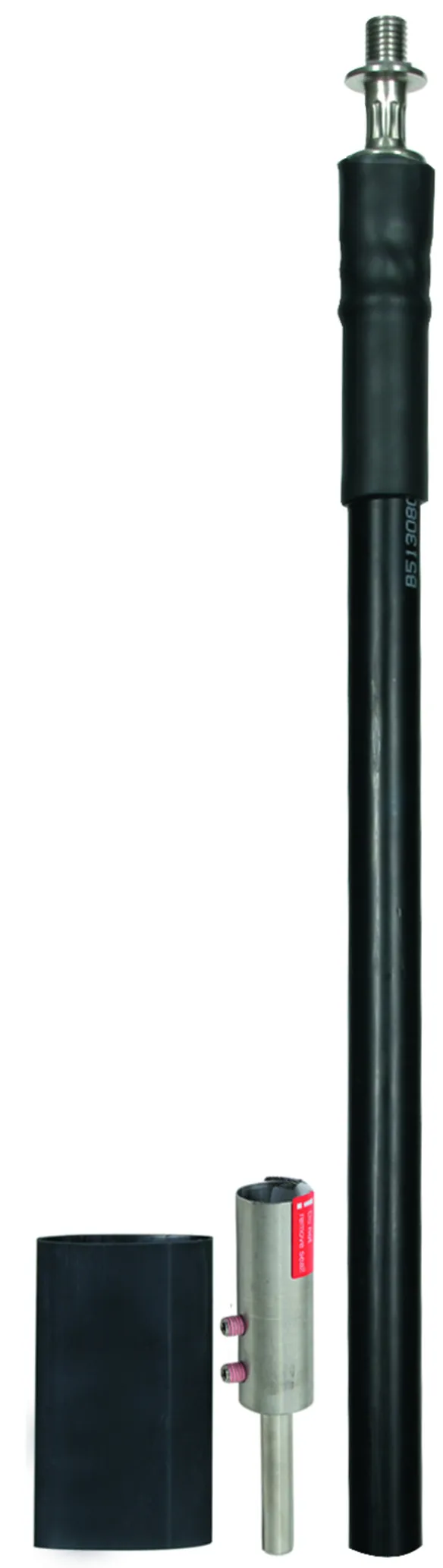

HVI Conductor (pre-assembled, installation outside the supporting tube)

Art.-Nr. 819226
HVI RAV 75 20 L6M SW M
  • Loading
  •
  •
item

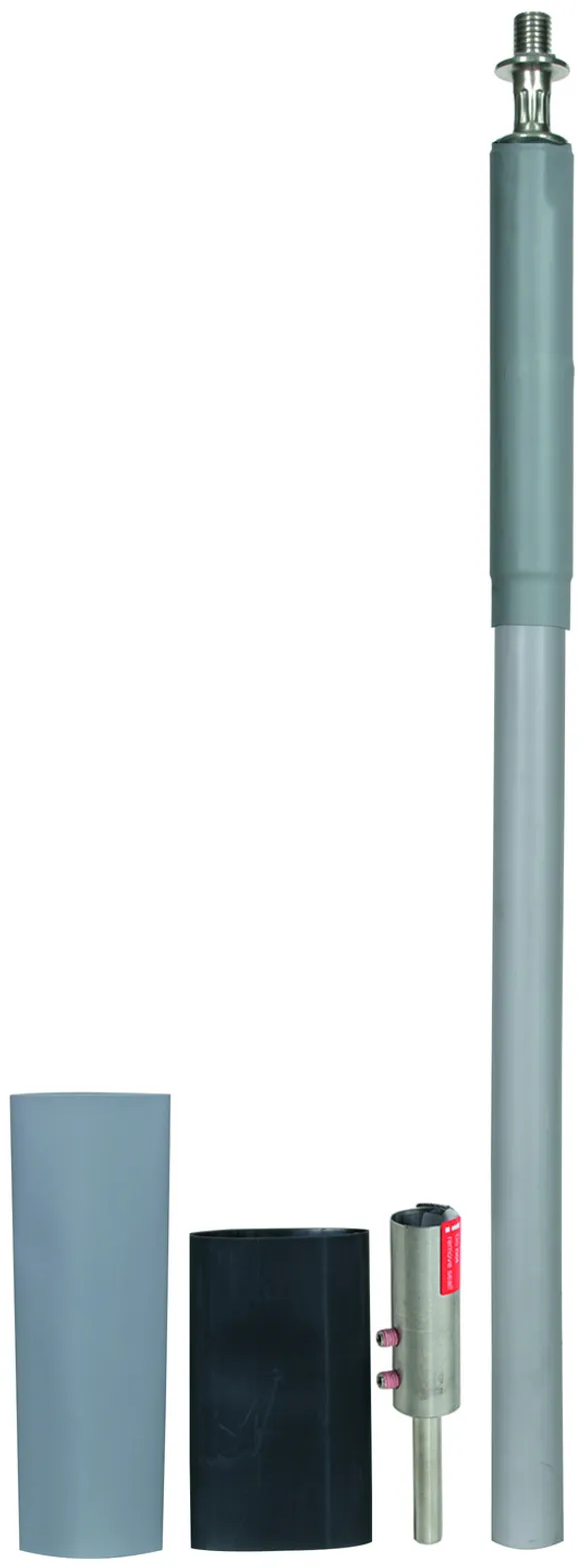

HVI Conductor (pre-assembled, installation outside the supporting tube)

Art.-Nr. 819227
HVI RAV 75 23 L6M GR M
  • Loading
  •
  •
item

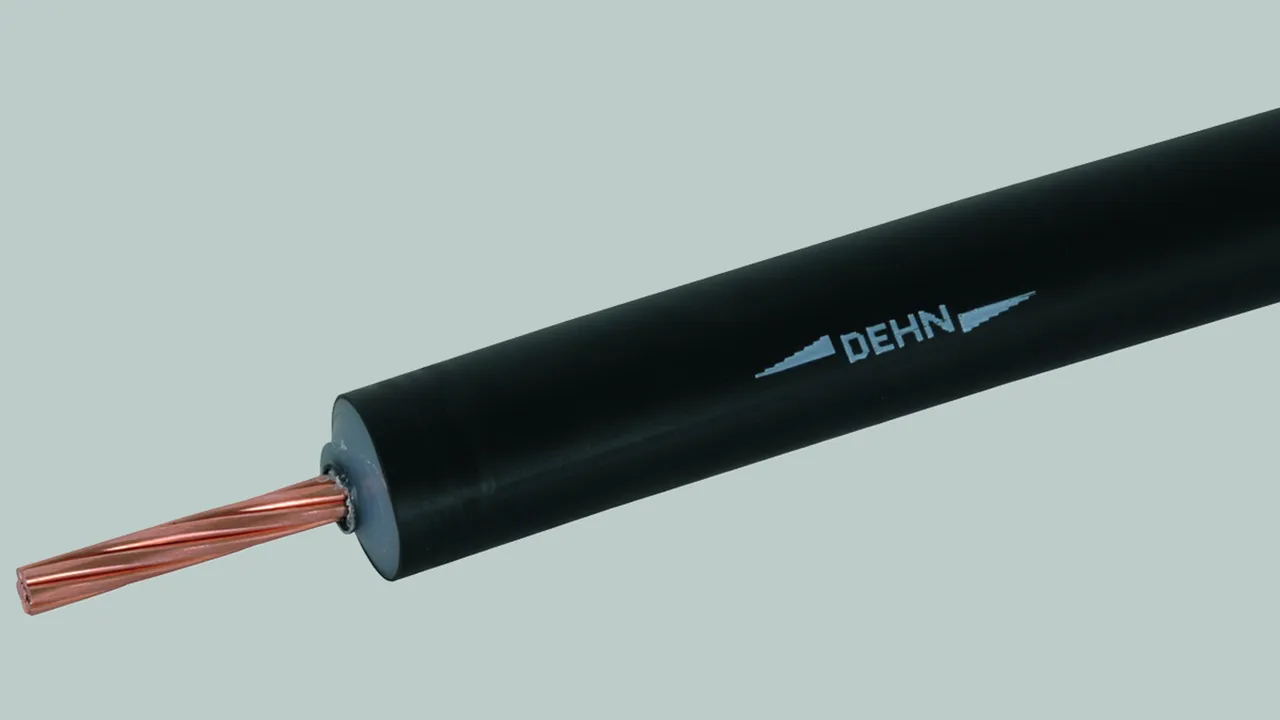

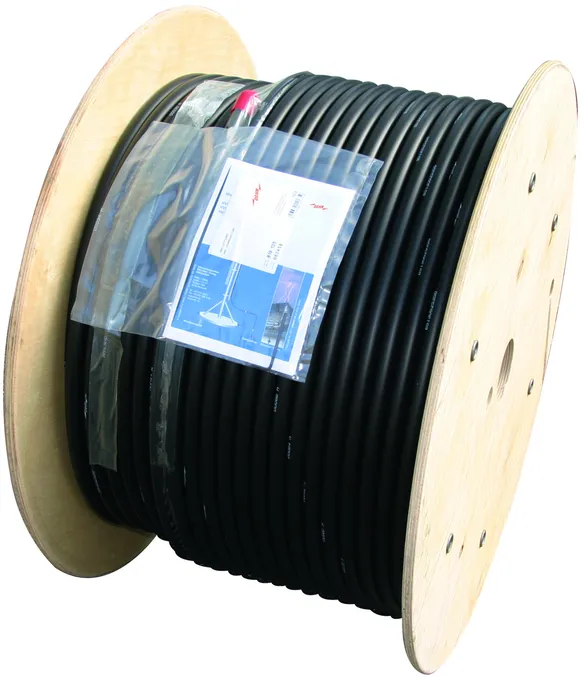

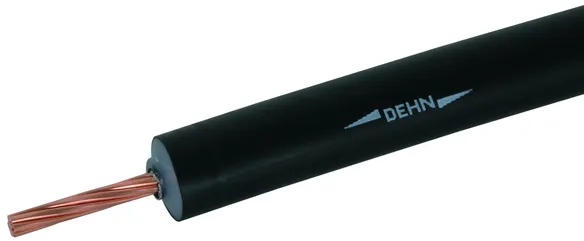

HVI long Conductor (on cable reel)

The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
Art.-Nr. 819135
HVI LO 75 20 L100M SW M
  • Loading

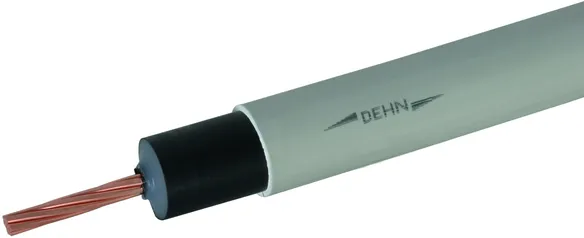

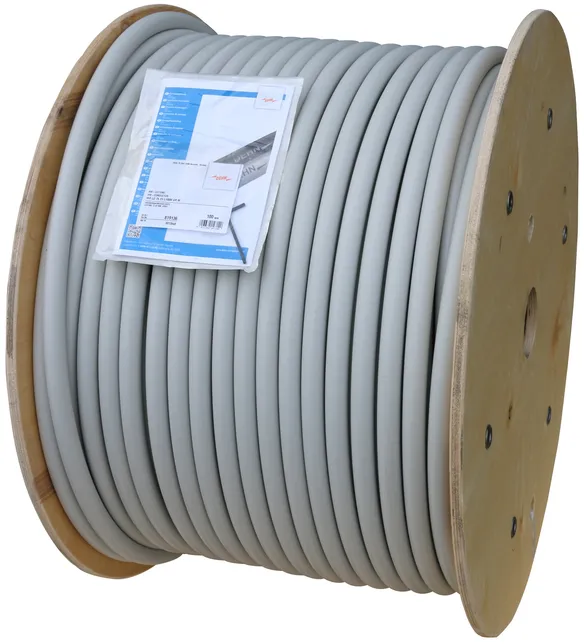

HVI long Conductor (on cable reel)

The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
Art.-Nr. 819136
HVI LO 75 23 L100M GR M
  • Loading

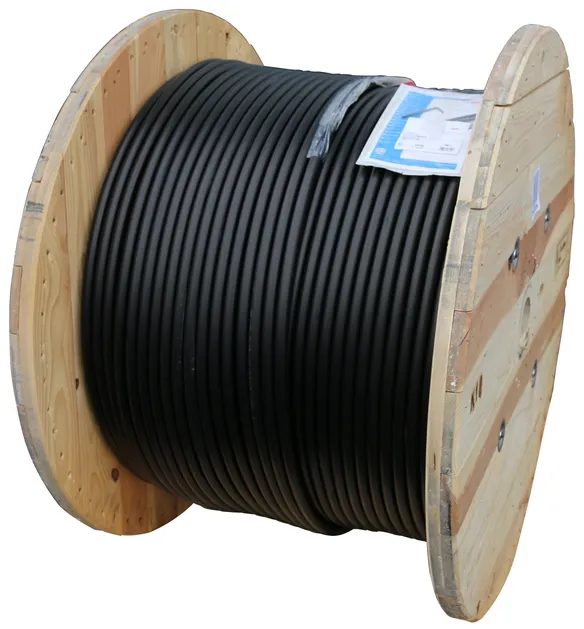

HVI long Conductor (on cable reel)

The HVI long Conductor for on-site assembly is delivered in a length of 500 m on a disposable plywood reel (diameter approx. 990 mm, width approx. 700 mm, total weight approx. 330 kg) incl. an Allen key.
Art.-Nr. 819138
HVI LO 75 20 L500M SW M
  • Loading

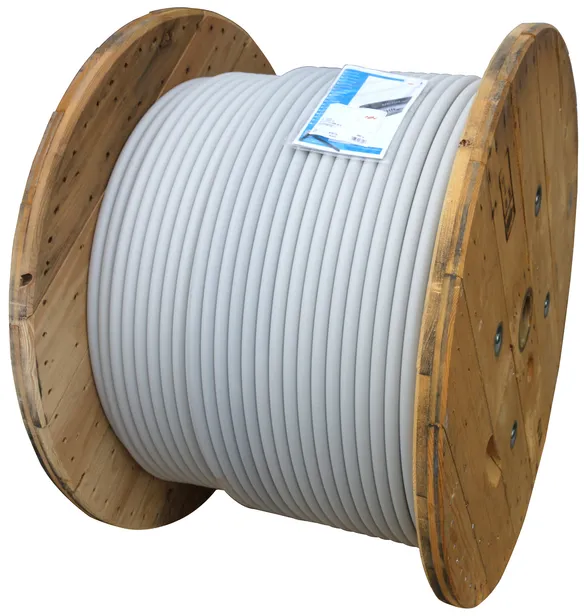

HVI long Conductor (on cable reel)

The HVI long Conductor for on-site assembly is delivered in a length of 400 m on a disposable plywood reel (diameter approx. 1000 mm, width approx. 690 mmtotal weight approx. 300 kg), incl. an Allen key.
Art.-Nr. 819110
HVI LO 75 23 L400M GR M
  • Loading

HVI long Conductor (cut to length)

Art.-Nr. 819132
HVI LO 75 23 L... GR M
  • Loading
item

HVI long Conductor with solid inner conductor (on a reel)

The HVI long Conductor for on-site assembly is delivered in a length of 100 m on a disposable plywood reel (diameter approx. 800 mm, width approx. 485 mm), incl. an Allen key.
Art.-Nr. 819156
HVI LO 75 23 L100M GR E
New
  • Loading

HVI long Conductor with solid inner conductor (on a reel)

The HVI long Conductor for on-site assembly is delivered in a length of 400 m on a disposable plywood reel (diameter approx. 1000 mm, width approx. 690 mmtotal weight approx. 300 kg), incl. an Allen key.
Art.-Nr. 819158
HVI LO 75 23 L400M GR E
New
