Base plate to protect the roof sheeting under the concrete base, large design for the 17 kg base.

Concrete base for air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors or for self-supporting air-termination rods with tripod. Stackable, for air-termination rods Ø16 mm, chamered, tapered, or DEHNiso spacers Ø16 mm.

Base plate to protect the roof sheeting under the concrete base, small version for the 8.5 kg base.

Wall mounting bracket for vertical mounting, for air-termination rods D40, DEHNcon-H or DEHNiso Combi supporting tubes.

Same as Part No. 105 342, however, with spacing sleeve length 95 mm

Wall mounting bracket, adjustable from 150 to 200 mm, for air-termination rods D40, DEHNcon-H or DEHNiso Combi supporting tubes, with double clamp for connecting 2x Rd 8-10 mm.

Same design as Part No. 105 343, but adjustable from 230-400 mm.

Concrete bases for air-termination tips Ø 10 mm (length 1000 mm) for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors with DEHNiso spacers Ø 16 mm, length up to 675 mm (distance 0.8 m).

Insulating caps for the dielectric withstand test on high-voltage-resistant, insulated down conductors
Kit: 5 units
The insulating caps allow the connection elements to be safely insulated, thus preventing contact and errors of measurement.

Same design as Part No. 105 343, however, adjustable from 700-1300 mm.

Clamp for fixing the supporting tube, e.g. on the antenna pole. With spacer, length 30 mm for adjusting antenna supports.

With spacer for adjusting e.g. antenna supports.

Three supports should be mounted for each air-termination mast.
Clamping range of air-termination mast Ø60 mm.

Spacer for establishing the variable sealing end of the HVI power Conductor.
With MV clamp for connection to the equipotential bonding (Rd 16 mm / Rd 8-10 mm).
Concrete base (Part No. 102 010, weight 17 kg) and base plate (Part No. 102 050) must be ordered separately.

Tripod (hinged) with variable spacer (large) for establishing the sealing end of the HVI power Conductor.
With UNI earthing clamp for connecting 1x Rd 8-10 mm and 1x conductor 4-50 mm².
Adjustable to the roof inclination up to max. 10°.
The three concrete bases (Part No. 102 075, weight 8.5 kg) and the base plates (Part No. 102 060) must be ordered separately.

For fastening (clamping) conductor holders (e.g. part no. 275 319) and the HVI Ex P200 holder (part no. 275 442) to pipes.

For combination with endless tensioning strap (Part No. 540 901) in case of larger pipe diameters.

Tripod (hinged) with variable spacer (small) for establishing the variable sealing end of the HVI power Conductor.
With UNI earthing clamp for connecting 1x Rd 8-10 mm and 1x conductor 4-50 mm².
Adjustable to the roof inclination up to max. 10°.
The three concrete bases (Part No. 102 075, weight 8.5 kg) and base plates (Part No. 102 060) must be ordered separately.

Spacer for additional mechanical fastening in the variable sealing end range.
The spacer is erected with two concrete bases (Part No. 102 010, weight 17 kg). Concrete bases and base plate (Part No.Nr. 102 050) must be ordered separately.

With pre-punched points for bending and hooking into the roof tile and for screwing onto battens to install the HVI power Conductor on gable roofs.

Roof conductor holder with slotted saddle clamp for fixing the HVI power Conductor onto metal roofs with round standing seam.

Roof conductor holder with slotted saddle clamp for fixing the HVI power Conductor onto metal roofs with clamping seam.

Roof conductor holder with slotted saddle clamp for fixing the HVI power Conductor onto metal roofs with standing seam.

Roof conductor holder with slotted saddle clamp for HVI power Conductor and Z-shaped connection lug for riveting or screwing to metal roofs.

With slotted saddle clamp for HVI power Conductor to be fixed in the concrete block (Part No. 253 301) and base plate (Part No. 253 300).

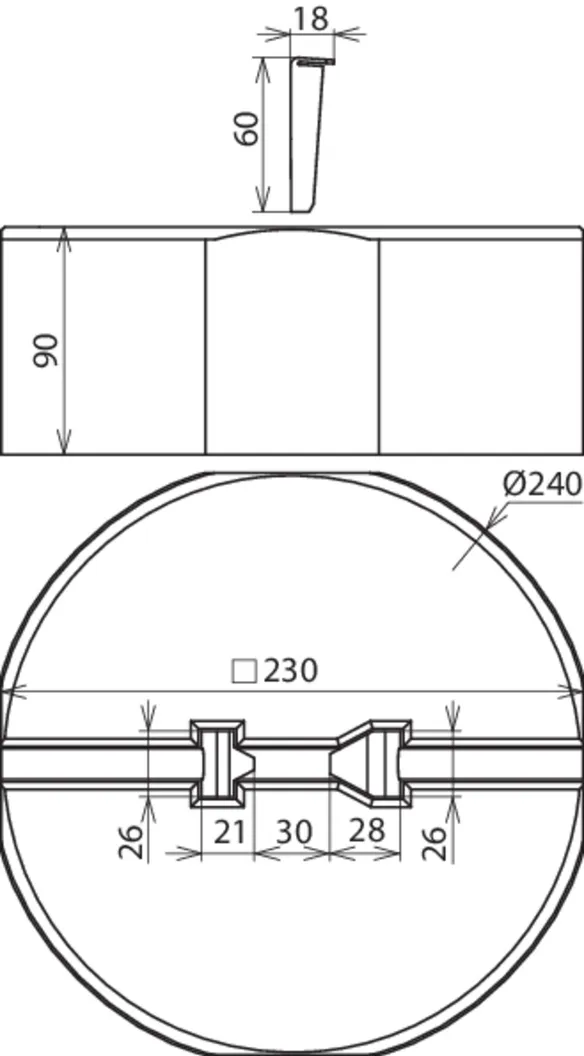

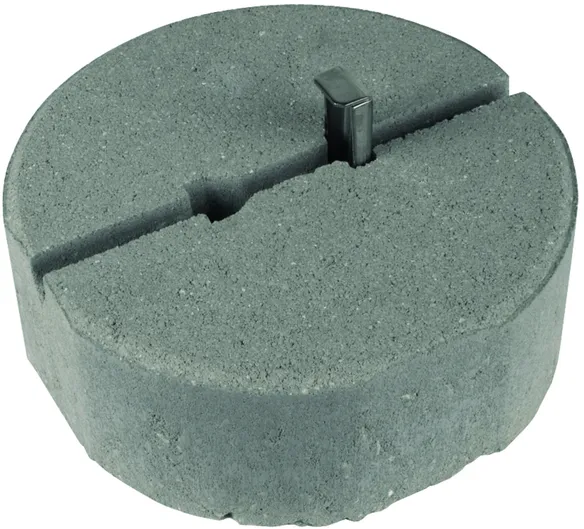

Conductor holder with slotted saddle clamp for HVI power Conductor for mounting in the concrete base with wedge (Part No. 102 075).

For flat roofs, weight approx. 4.7 kg.

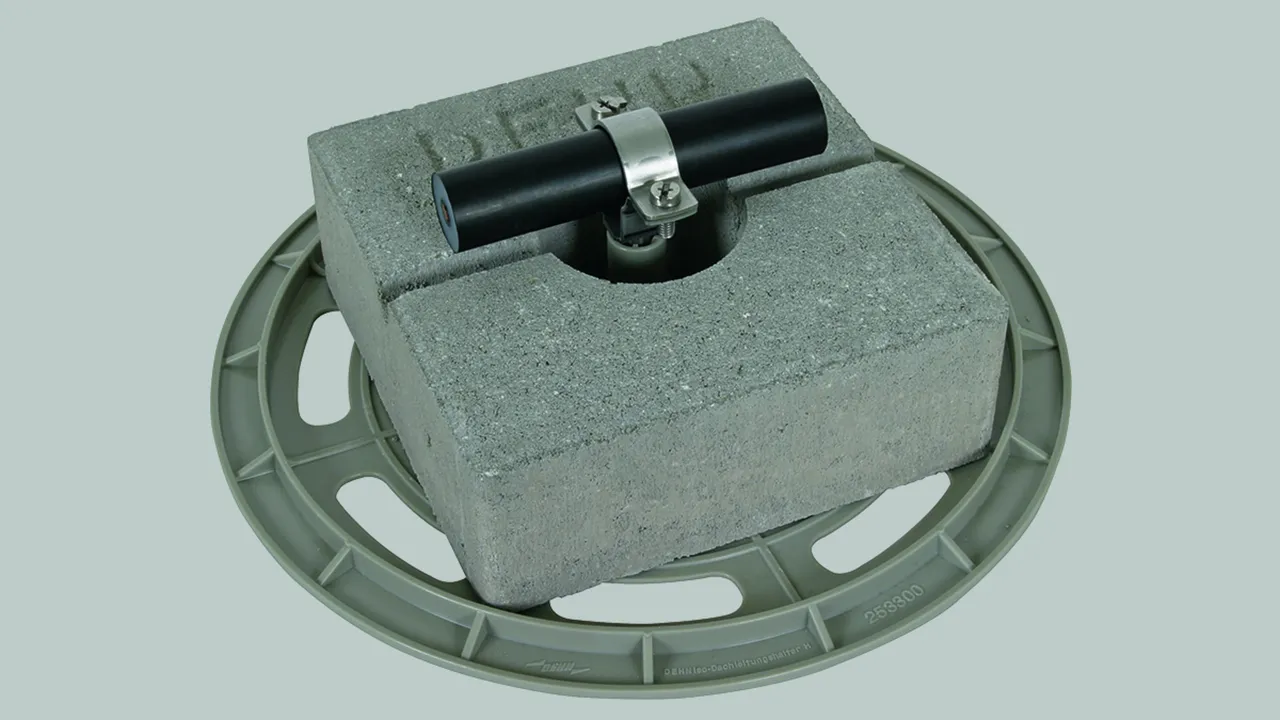

Conductor holder, concrete block and base plate for installing the HVI power Conductor on flat roofs.

Base plate to hold the spacer bar (Part Nos. 253 315, 253 325) and conductor holder (Part No. 253 289) and to protect the roof sheeting under the concrete block (Part No. 253 301).

For flat roofs, weight approx. 8.6 kg.
Conductor holder, concrete block and base plate to install the HVI power Conductor on flat roofs.

For stabilising the base plate.

With thread.
For wall mounting with two-screw conductor clamp (not for use in the sealing end range).

With thread.
For wall mounting with two-screw conductor clamp (not for use in the sealing end range).

With slot hole.
For wall mounting, with two-screw conductor clamp (not for use in the sealing end range).

With plastic base.
For wall mounting, with two-screw conductor clamp (not for use in the sealing end range).

Two-screw clamp for direct wall mounting of the HVI power or HVI ultra Conductor. Stainless steel version.

For fixing the HVI power Conductor, e.g. to pipes.

For fixing the HVI power Conductor at pipes e.g. with pipe clamp (Part No. 106 323).

Information sign

Front German
""Achtung! Getrennter Blitzschutz mit HVI Leitung""

Back English
""Attention! Separated Lightning Protection with HVI conductor system""

Information sign

Front German
""ACHTUNG! Potentialausgleich""

Back English
""ATTENTION! Equipotential Bonding""

Hole spacing suitable for two-screw clamp Part No. 480 291.

Fixing kit for installing the HVI long Conductor on supporting tubes, consisting of two half shells and one cable tie for fixing up to four HVI Conductors in the GRP area of the supporting tube.

Aluminium reduction adapter for Ø22-mm fixtures for the central mounting of Ø16-mm air-termination rods on support tubes.

Stainless steel reducing adapter for Ø22-mm fixtures for the central mounting of Ø16-mm air-termination rods on support tubes.

Stainless steel reducing adapter for Ø22-mm fixtures for the central mounting of Ø10-mm air-termination rods on support tubes.

Aluminium reducing adapter for Ø22-mm fixtures for the central mounting of Ø10-mm air-termination rods on support tubes.

Cable ties for routing the various HVI Conductors with the plastic holder half shells.

Fixing kit for installing lateral/horizontal air-termination tips to HVI long supporting tubes and HVI power supporting tubes. Consisting of four air-termination tips and a fixing ring.

Note: The additional wind load stress on the air-termination system resulting from the side-mounted air-termination tips must be taken into account!

Fixing kit for installing lateral/horizontal air-termination tips to HVI long supporting tubes and HVI power supporting tubes. Consisting of four air-termination tips and a fixing ring.

Note: The additional wind load stress on the air-termination system resulting from the side-mounted air-termination tips must be taken into account!

Fixing kit for installing lateral/horizontal air-termination tips to HVI long supporting tubes and HVI power supporting tubes. Consisting of four air-termination tips and a fixing ring.

Note: The additional wind load stress on the air-termination system resulting from the side-mounted air-termination tips must be taken into account!

Fixing kit for installing lateral/horizontal air-termination tips to HVI long supporting tubes and HVI power supporting tubes. Consisting of four air-termination tips and a fixing ring.

Note: The additional wind load stress on the air-termination system resulting from the side-mounted air-termination tips must be taken into account!
