Enclosure and Protective Conductor Terminal

  • High-quality accessories
  • Suitable for DIN rail mounted arresters

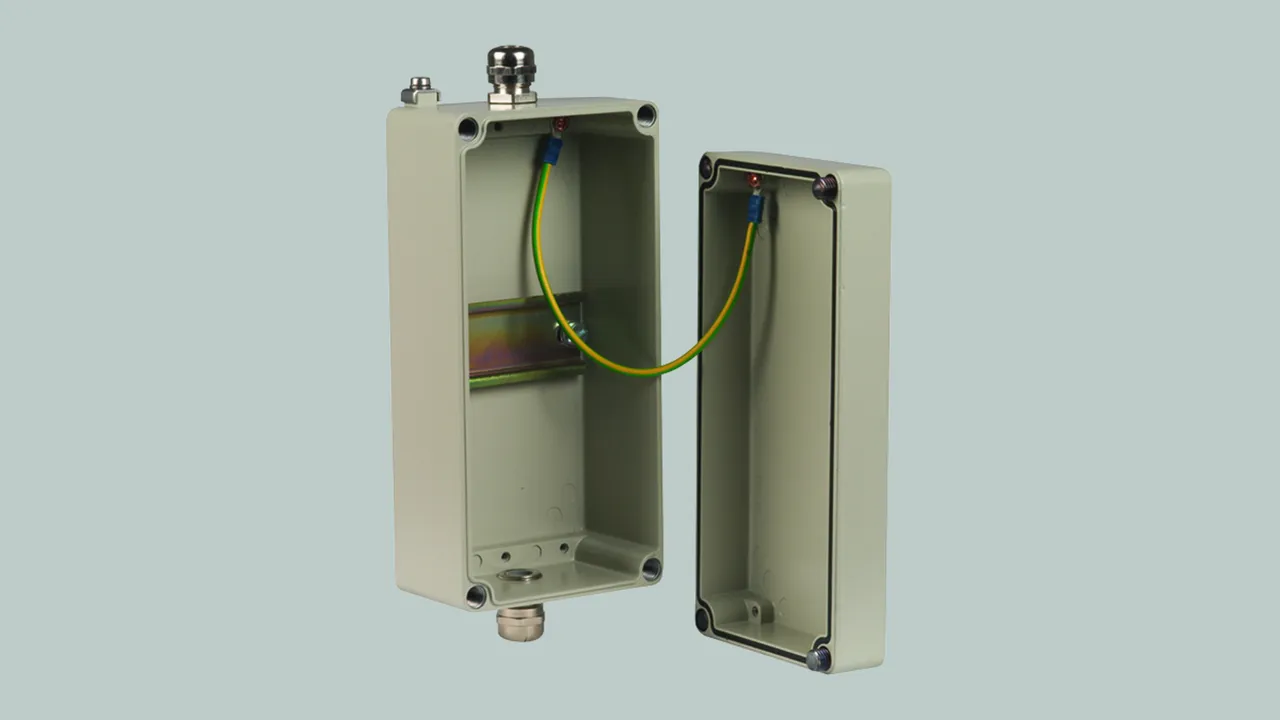

Aluminium Enclosure

For the installation of DIN rail mounted devices. With two M20 brass glands.

1 Product

Part No. 906055 ALGA 5

GTIN 4013364071513, Customs tariff No.: 85381000, Gross weight: 1.00 kg, PU: 1.00 pc(s)


Images

Additional information

M20 ALGA 5 aluminium enclosure with two brass glands
Aluminium enclosure for installation of
DIN rail mountable devices,
with 2 brass glands PG 11,

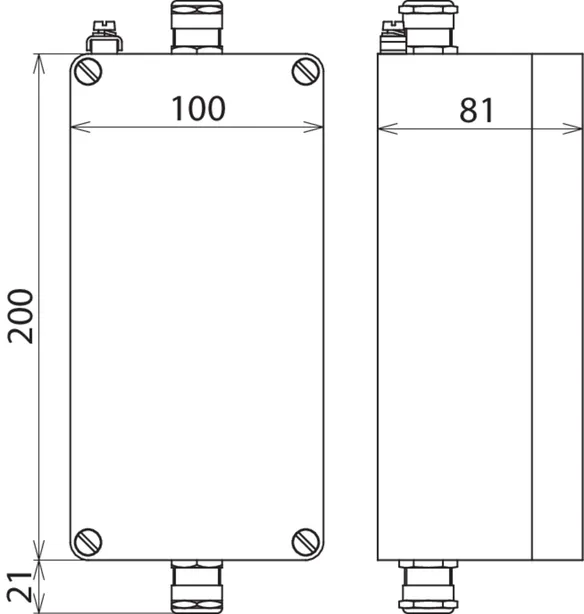

dimensions W x H x D 100 x 200 x 81 mm
maximum assembly: 5 TE
Degree of protection: IP 65
Enclosure colour: grey


Brand: DEHN
Type: ALGA 5
Part No.: 906055
or equivalent.



Technical data

Degree of protection IP 65
For mounting on walls
Dimensions (W x H x D) 100 x 200 x 81 mm
Enclosure material Al

Product 906055 was added to Notepad.

Product 906055 was added to the cart.

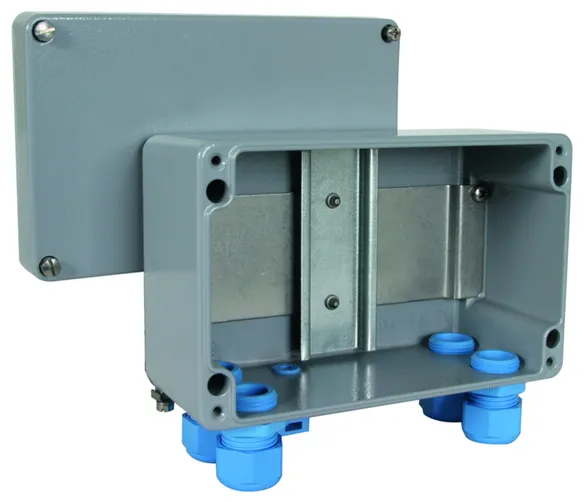

Aluminium Enclosure for Ex(i) Surge Arresters

With four plastic glands M20 x 1.5, sealable, pressure compensating grommets.

1 Product

Part No. 906058 ALGA 5 X

GTIN 4013364091658, Customs tariff No.: 85381000, Gross weight: 899.00 g, PU: 1.00 pc(s)


Images

Additional information

Aluminium enclosure for Ex (i) ALGA 5 X
Aluminium enclosure for installation of
Ex(i) surge arresters as DIN rail mountable devices,
with 4 plastic glands M20 x 1,5, sealable,
with pressure compensating membrane

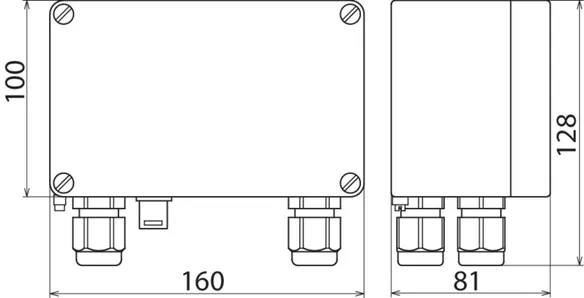

dimensions W x H x D 160 x 100 x 81 mm
maximum assembly: 5 TE
Degree of protection: IP 65
Enclosure colour: grey

Brand: DEHN
Type: ALGA 5 X
Part No.: 906058
or equivalent.



Technical data

Degree of protection IP 65
For mounting on walls
Dimensions (W x H x D) 160 x 100 x 85 mm
Enclosure material Al

Product 906058 was added to Notepad.

Product 906058 was added to the cart.

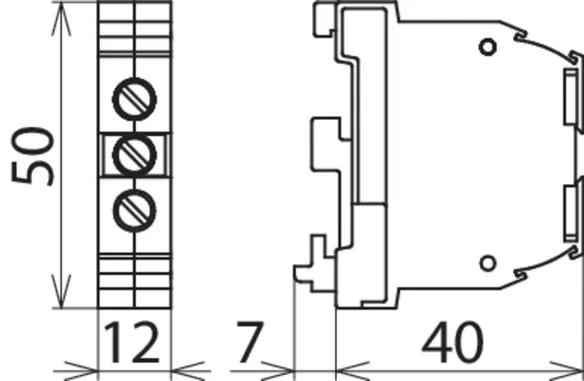

Protective Conductor Terminal

For earthing DIN rails

1 Product

Part No. 910099 SLK 16

GTIN 4013364037298, Customs tariff No.: 85369095, Gross weight: 37.80 g, PU: 1.00 pc(s)


Images

Additional information

Protective conductor terminal
Protective conductor terminal with
all-purpose base, for
DIN rail installation according to EN 60715
Enclosure made of polyamide (green/yellow)
Clamping range 6 – 16 mm² (flexible)
6 – 25 mm² (solid/stranded)
Width: 12 mm

Brand: DEHN
Type: SLK 16
Part No.: 910099
or equivalent.



Technical data

Cross-sectional area, flexible 6-16 mm2
Cross-sectional area, solid 6-25 mm2
For mounting on DIN rails acc. to EN 60715
Enclosure material polyamide 6.6

Product 910099 was added to Notepad.

Product 910099 was added to the cart.


back to top
