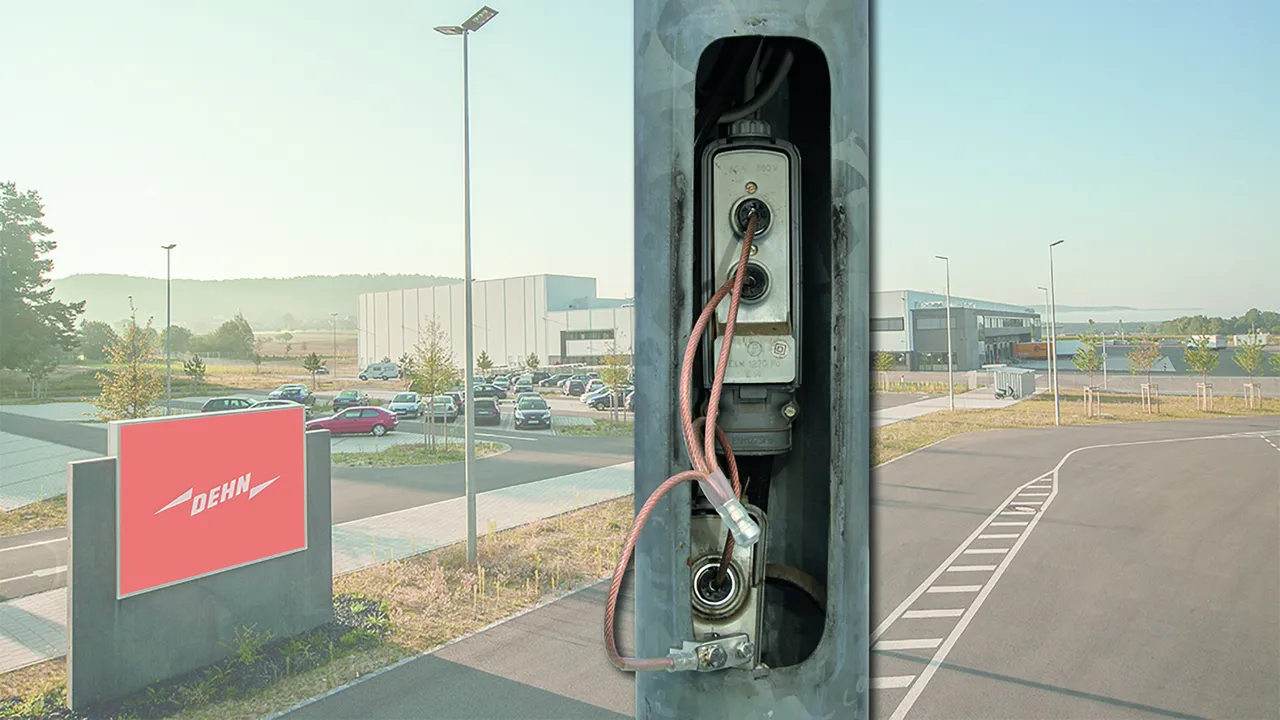

    Earthing and short-circuiting device installed at a junction and fuse box of a street lighting mast.

Earthing and Short-Circuiting Device for Street Lighting Systems

  • For junction and fuse boxes of street lighting systems
  • For E14 fuse links
  • E27 to E14 thread aluminium adapter
  • Max. 125 A backup fuse, operating class: gL/gG

Compact clamp for street lighting

With M8 x 12 mm threaded screw and hexagon locking screw WS10.
To be fixed by means of turning handle with flexible shaft.
Art.-Nr. 745509
KKS M8 0 24 SK10
  • Loading
  •
  •
item

E27 / E14 adapter

Reducing insert for converting from E27 to E14 threads.
Allows to use earthing and short-circuiting devices with E14 screw-in earthing inserts even for E27 threads.
Art.-Nr. 745108
RED E27 E14 ÜGK MB
  • Loading
  •
  •
item

Earthing and short-circuiting device for street lighting systems

With three fixed E14 screw-in earthing inserts and spring-loaded earth clamp, clamping range up to 24 mm (fixed via rotary handle DGF EKV VI).
Art.-Nr. 745107
EKV ÜGK MB
  • Loading
item

Plastic case, empty

With foam padding.
Art.-Nr. 745106
KKL EKV ÜGK MB
  • Loading
  •
  •
item

Installation adapter

For installing E27 / E14 adapters and gauge rings for D-fuses DII and DIII.
Art.-Nr. 745109
PSS DII
  • Loading
  •
  •
item

Earthing and short-circuiting device for street lighting systems

With two permanently mounted E14 screw-in earthing inserts and two spring-loaded earth clamp, clamping range up to 24 mm (fixing via adjustable handle DGF EKV VI).
Art.-Nr. 745121
EKV ÜGK MB SN7724
New
  • Loading
item

Earthing and short-circuiting device for street lighting systems

With three permanently mounted E14 screw-in earthing inserts and spring-loaded earth clamp, clamping range up to 24 mm (fixing via adjustable handle DGF EKV VI).
Type Süwag
Art.-Nr. 745115
EKV ÜGK MB SN7354
New
  • Loading
item

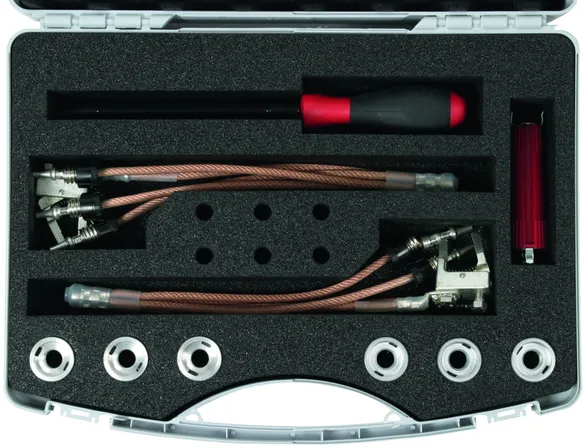

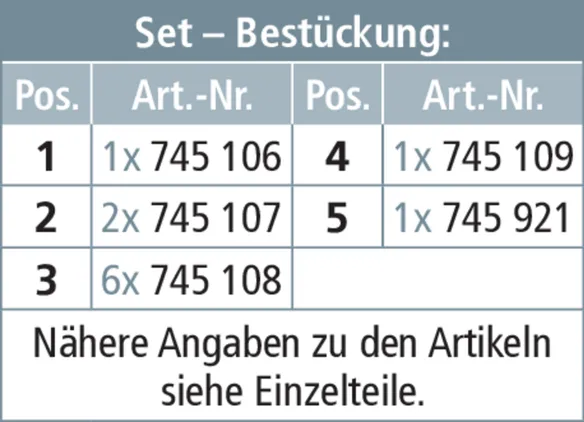

Kit in Plastic Case

Art.-Nr. 745105
EKV ÜGK MB S
