DEHNcube PV

  • Prewired multipole surge arrester with IP 65 degree of protection for use in photovoltaic systems
  • No space required in a distribution board enclosure
  • Pre-assembled connecting cable available for simple connection of the surge arrester directly upstream of the inverter to be protected
  • Combined disconnection and short-circuiting device with safe electrical isolation in every protective circuit (patented SCI principle)
  • Spring-loaded terminals for easy and quick connection without tools
  • Tested to EN 61643-31
  • For use in all PV systems according to IEC 60364-7-712

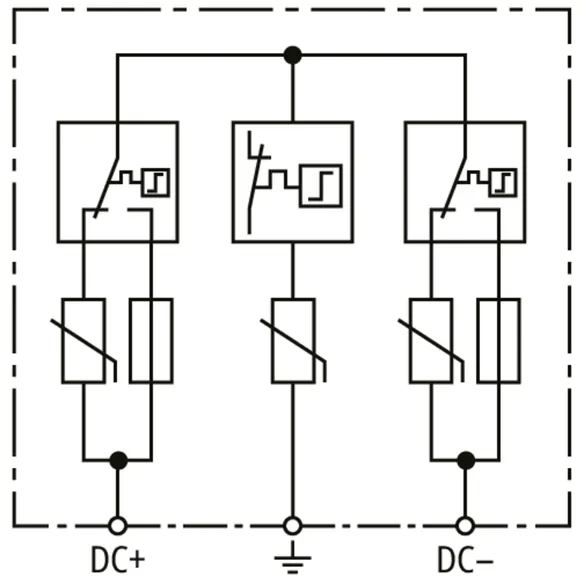

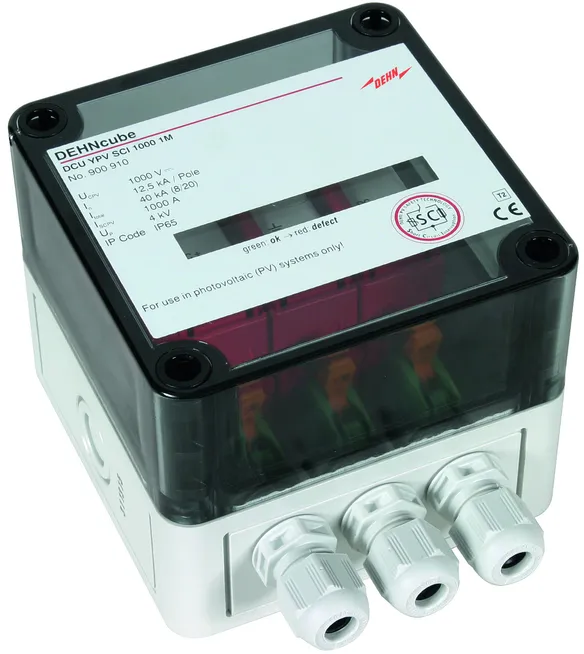

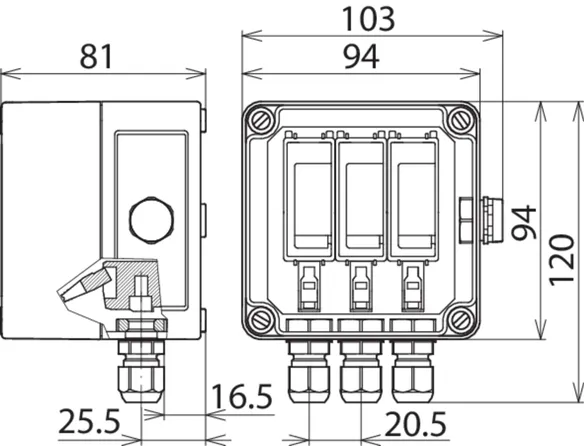

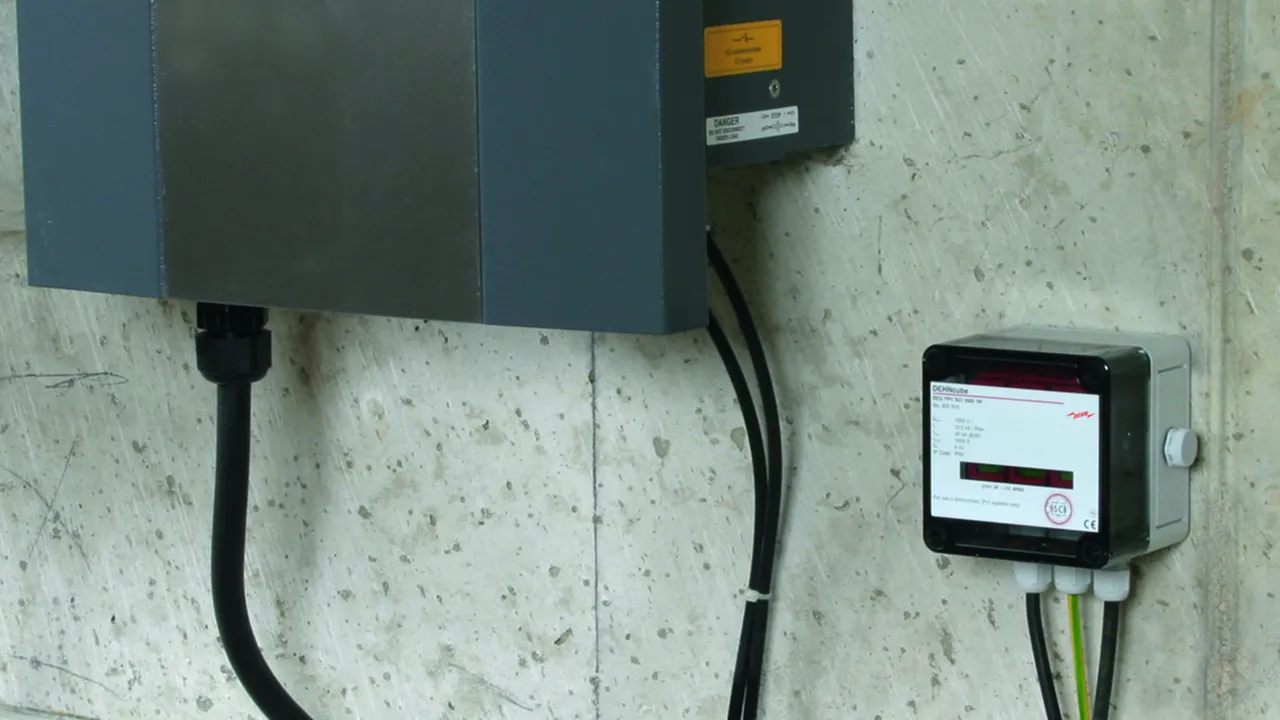

DEHNcube YPV SCI 1000 1M

Two-pole surge arrester with IP65 degree of protection and three-step d.c. switching device for PV inverters for protecting one MPP input.
Art.-Nr. 900910
DCU YPV SCI 1000 1M
  • Loading
  •
  •
  •
item

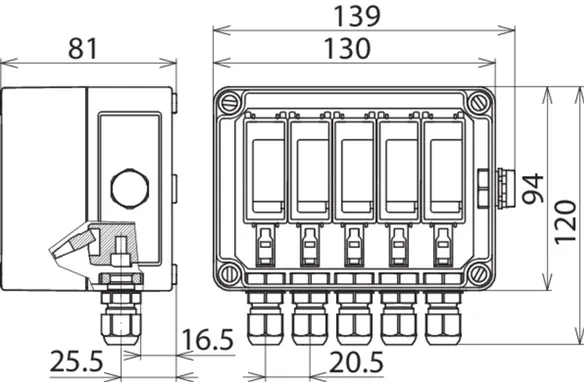

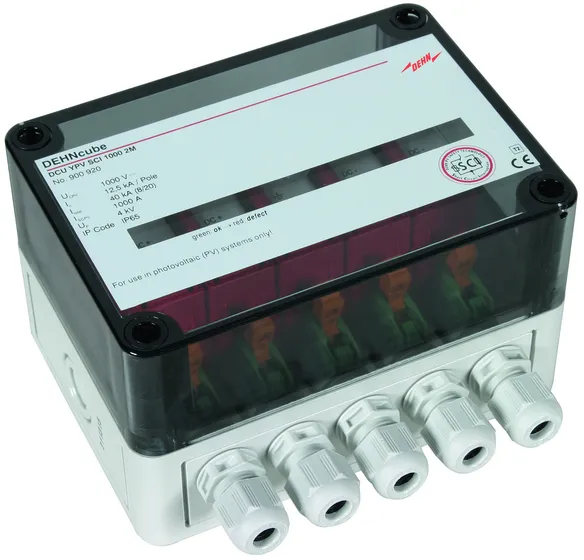

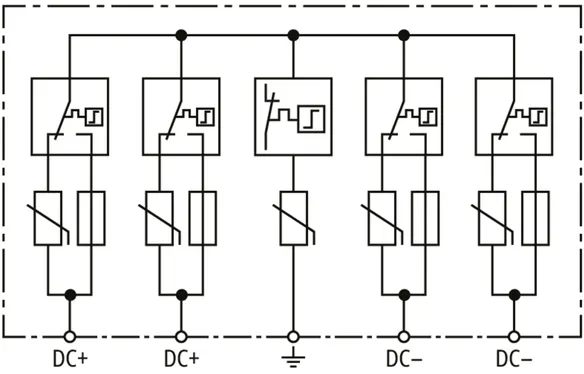

DEHNcube YPV SCI 1000 2M

Four-pole surge arrester with IP 65 degree of protection and three-step d.c. switching device for PV inverters for protecting two MPP inputs.
Art.-Nr. 900920
DCU YPV SCI 1000 2M
  • Loading
  •
  •
  •
item

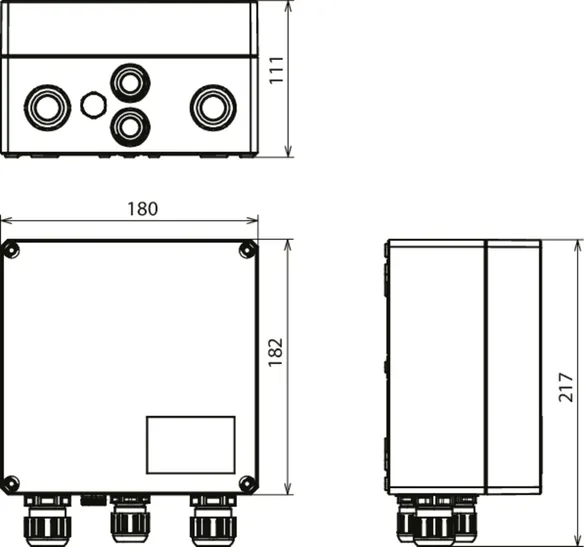

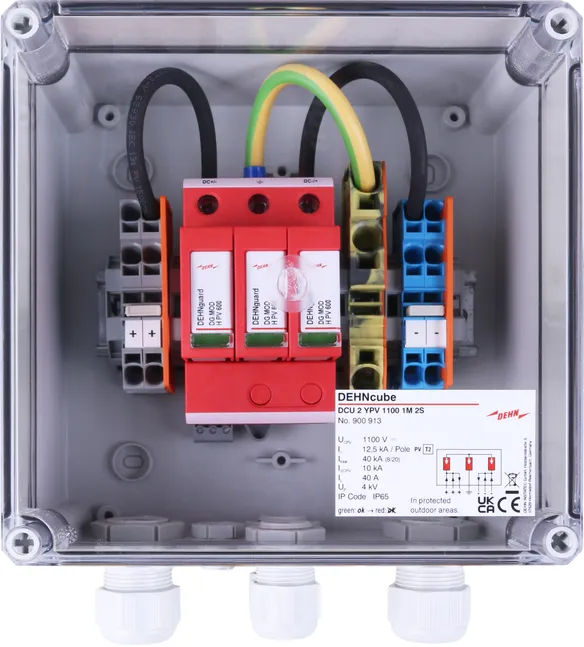

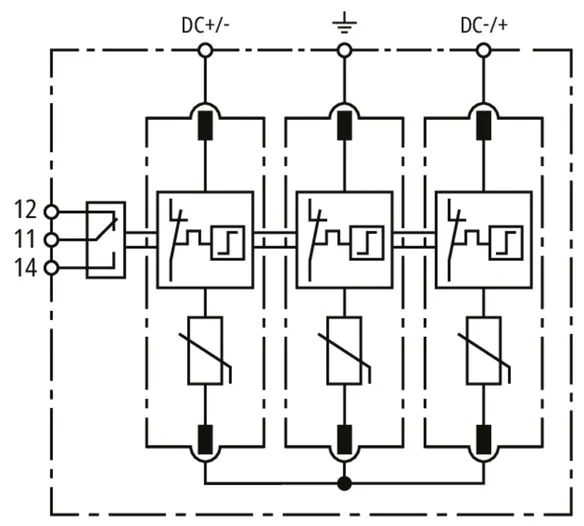

DEHNcube 2 YPV 1100 1M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900913
DCU 2 YPV 1100 1M 2S
New
  • Loading
  •
  •
  •
item

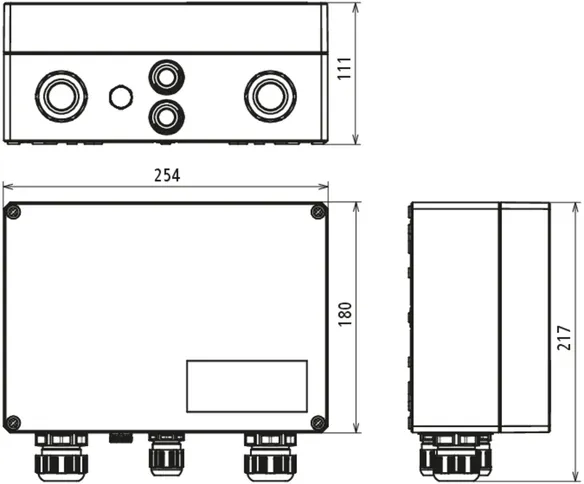

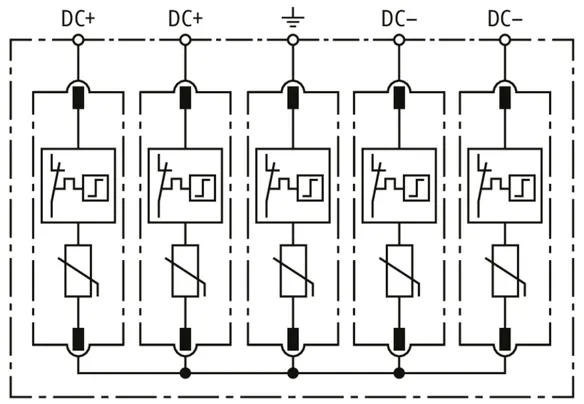

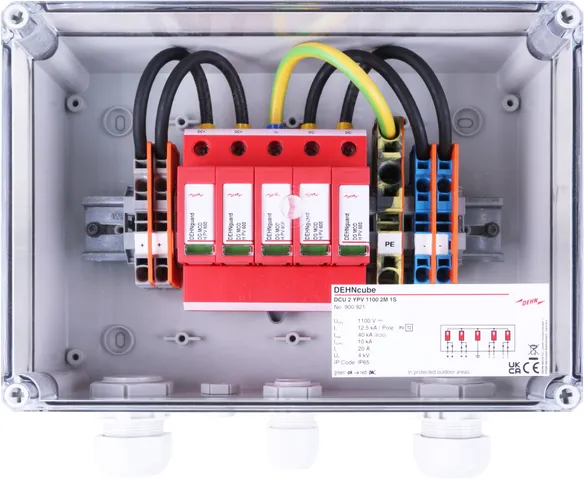

DEHNcube 2 YPV 1100 2M 1S

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900921
DCU 2 YPV 1100 2M 1S
  • Loading
  •
  •
  •
item

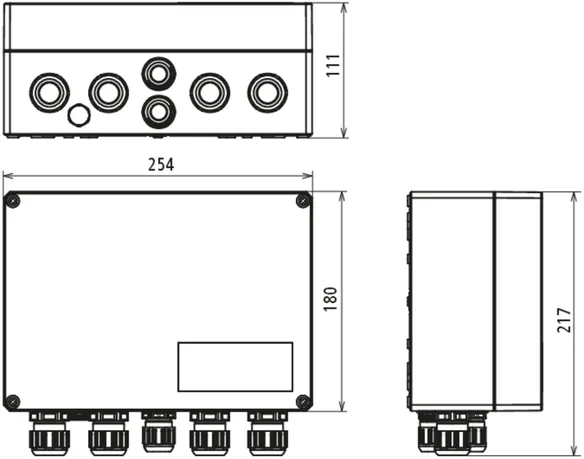

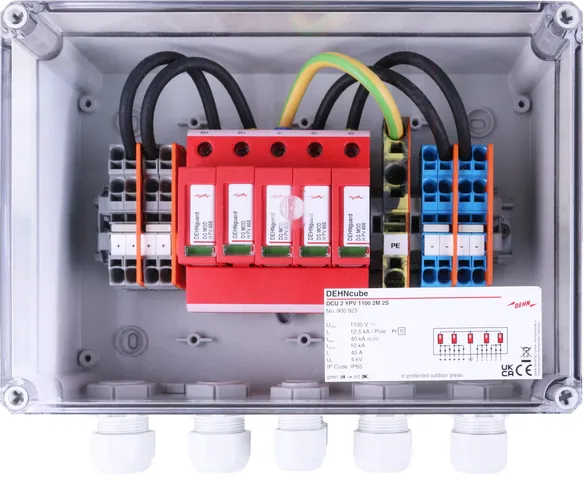

DEHNcube 2 YPV 1100 2M 2S

Generator junction box for PV systems of up to 1100 V DC for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900923
DCU 2 YPV 1100 2M 2S
  • Loading
  •
  •
  •
item

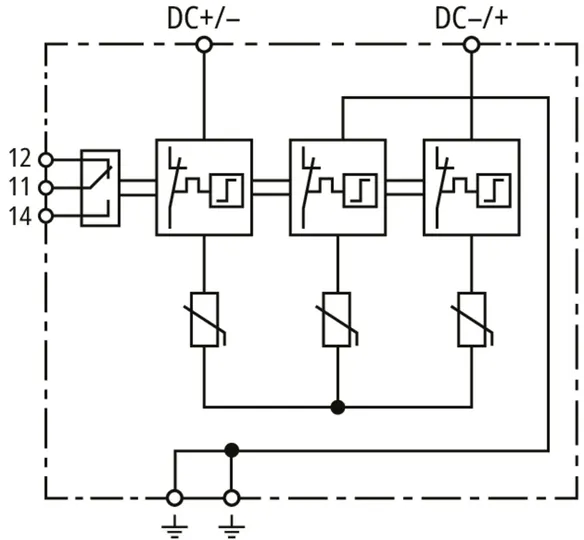

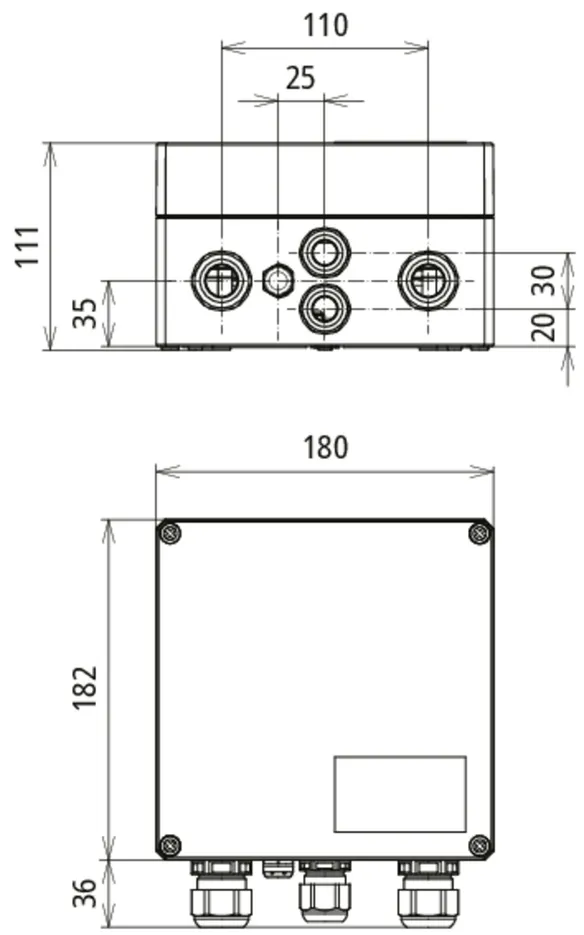

DEHNcube 2 YPV 1+2 1000 1M 2S FM

Generator junction box for PV systems of up to 1,000 V DC with disconnecting clamps for protecting one MPP input and two strings.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900975
DCU 2 YPV 1+2 1000 1M 2S FM
New
  • Loading
  •
  •
  •
item

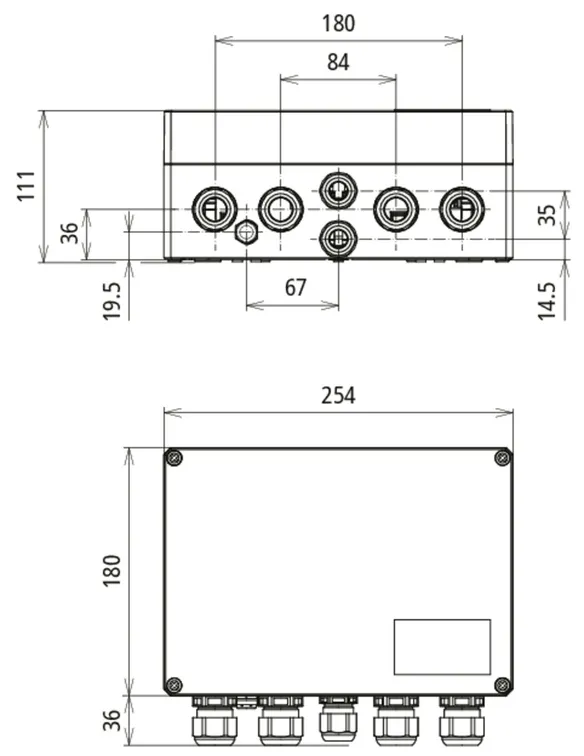

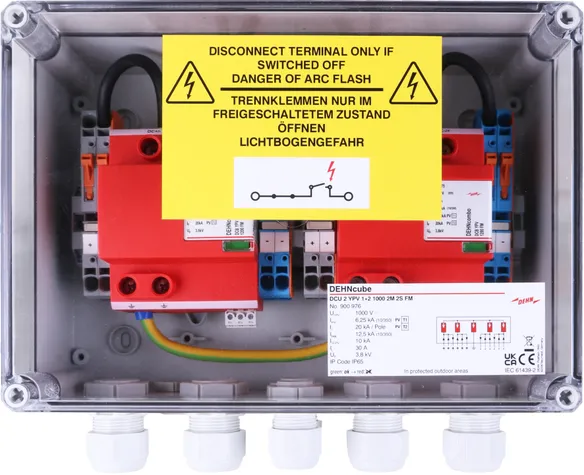

DEHNcube 2 YPV 1+2 1000 2M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting two MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900976
DCU 2 YPV 1+2 1000 2M 2S FM
New
  • Loading
  •
  •
  •
item

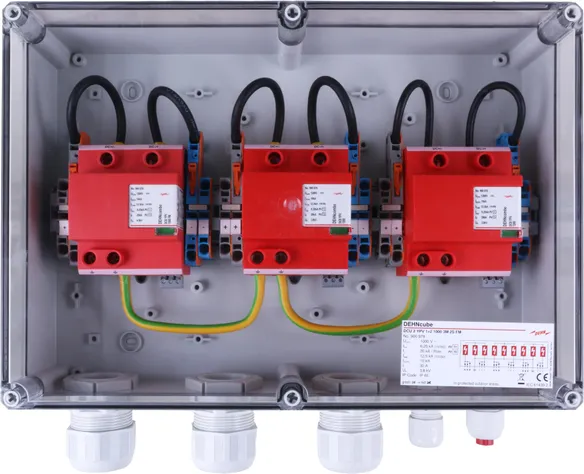

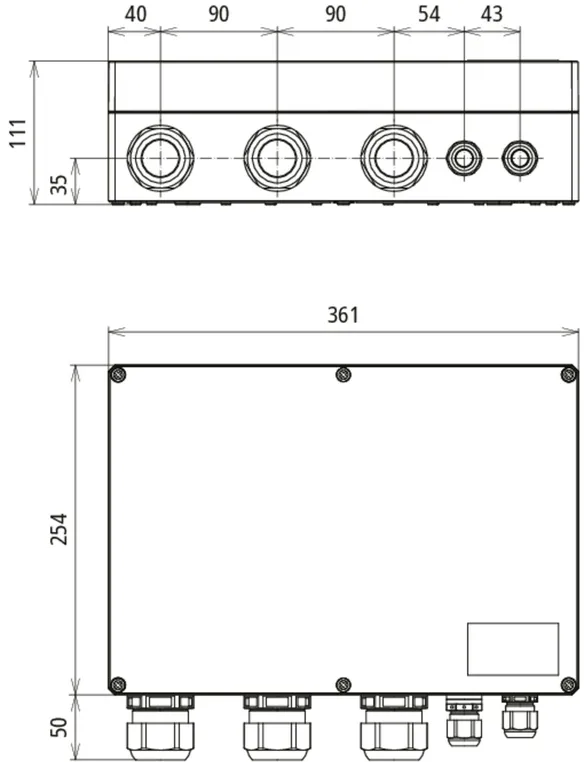

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900978
DCU 2 YPV 1+2 1000 3M 2S FM
New
  • Loading
  •
  •
  •
item

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900989
DCU 2 YPV 1+2 1100 4M 2S
New
  • Loading
  •
  •
  •
item

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900990
DCU 2 YPV 1+2 1100 5M 2S
New
  • Loading
  •
  •
item

DEHNcube 2 YPV 1+2 1100 6M 1S

Generator junction box for PV systems of up to 1,100 V DC for protecting six MPP inputs and one string each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900979
DCU 2 YPV 1+2 1100 6M 1S
New
  • Loading
  •
  •
item

DEHNcube 2 YPV 1+2 1000 3M 2S FM

Generator junction box for PV systems of up to 1000 V DC with disconnecting clamps for protecting three MPP inputs and two strings each.
With surge protection and push-in terminals for the input and output.
Art.-Nr. 900991
DCU 2 YPV 1+2 1100 12M 2S
New
  • Loading
  •
  •
item

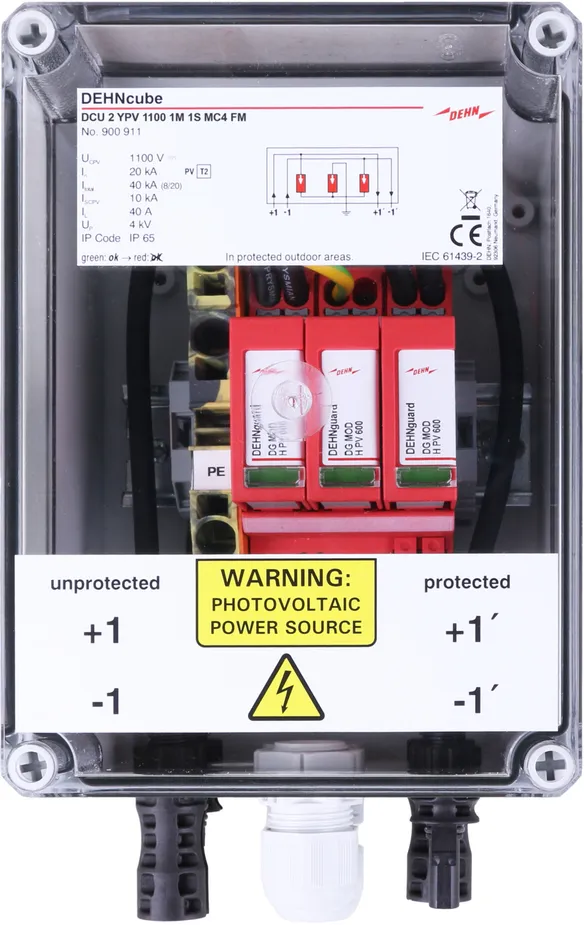

DEHNcube 2 YPV 1100 1M 1S MC4 FM

Generator junction box for PV systems of up to 1,100 V DC for protecting one MPP input and one string.
Art.-Nr. 900911
DCU 2 YPV 1100 1M 1S MC4 FM
New
  • Loading
  •
  •
  •
item

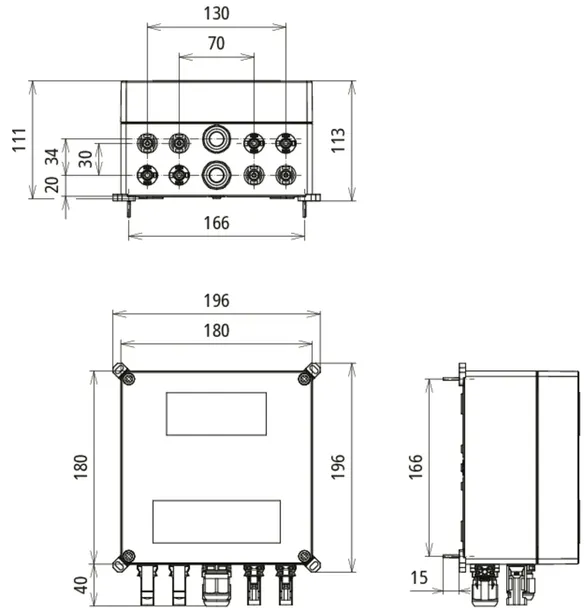

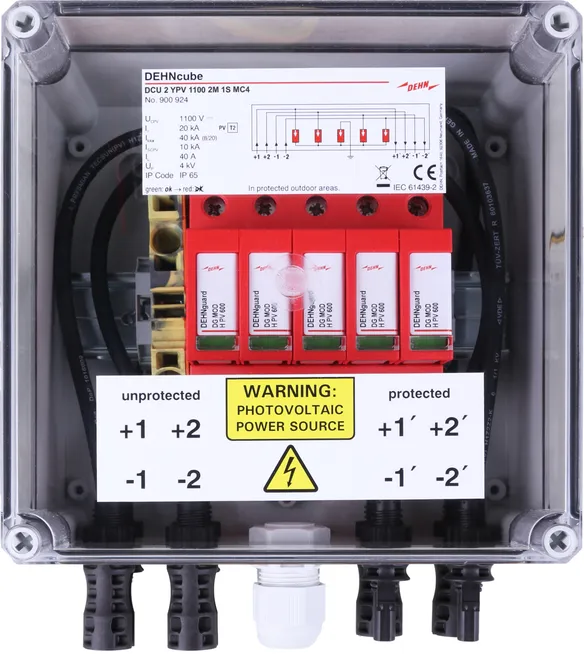

DEHNcube 2 YPV 1100 2M 1S MC4

Generator junction box for PV systems of up to 1,100 V DC for protecting two MPP inputs and one string each.
Art.-Nr. 900924
DCU 2 YPV 1100 2M 1S MC4
New
  • Loading
  •
  •
  •
item

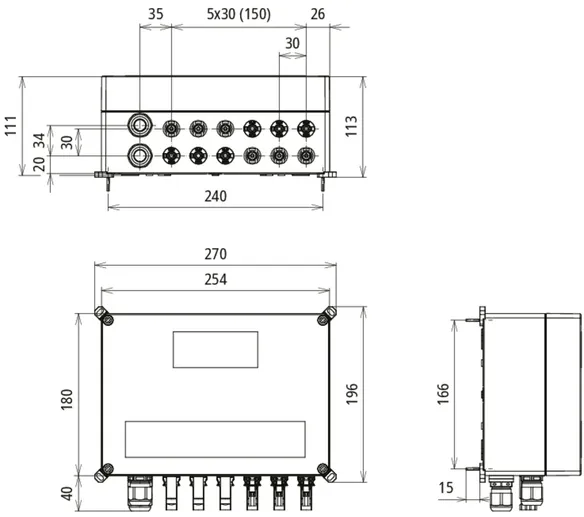

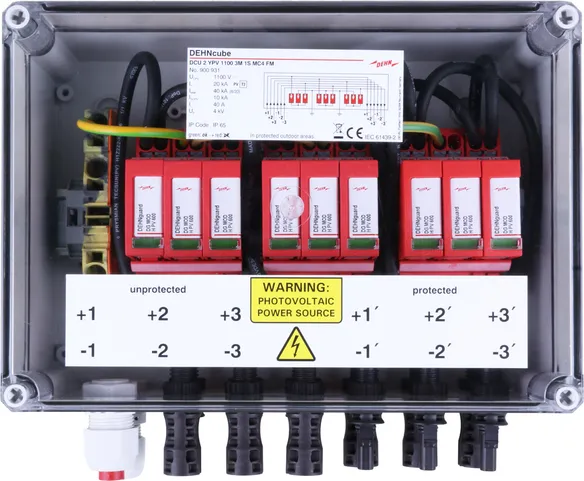

DEHNcube 2 YPV 1100 3M 1S MC4 FM

Generator junction box for PV systems of up to 1100 V DC for protecting three MPP inputs and one string each.
Art.-Nr. 900931
DCU 2 YPV 1100 3M 1S MC4 FM
New
  • Loading
  •
  •
  •
item

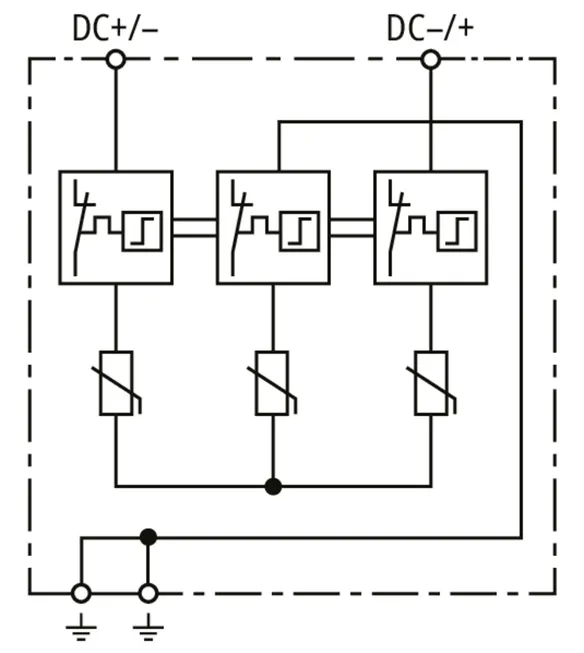

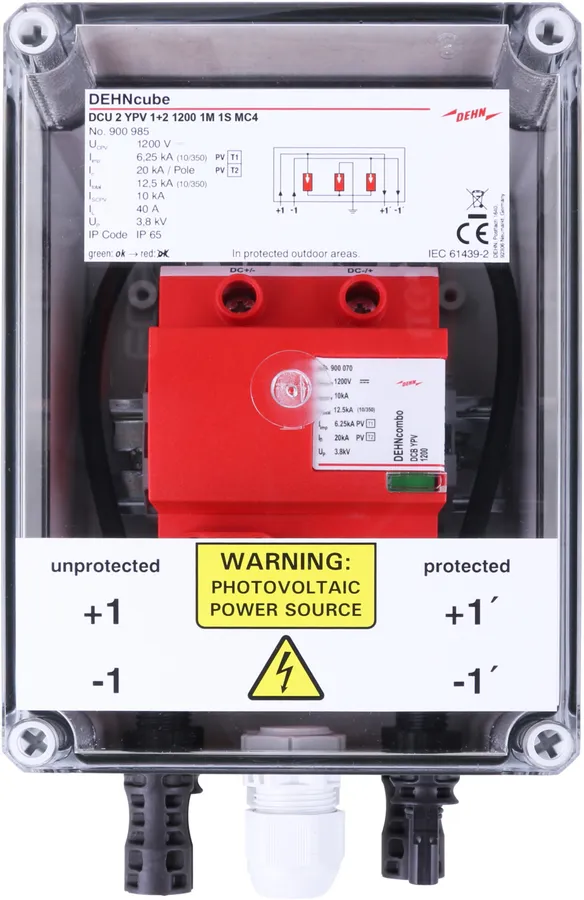

DEHNcube 2 YPV 1+2 1200 1M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting one MPP input and one string.
Art.-Nr. 900985
DCU 2 YPV 1+2 1200 1M 1S MC4
New
  • Loading
  •
  •
  •
item

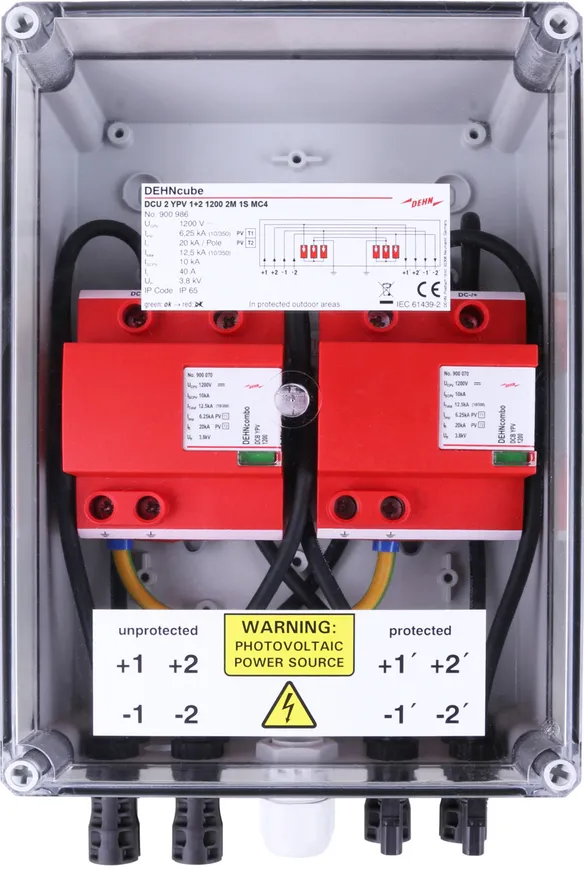

DEHNcube 2 YPV 1+2 1200 2M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and one string each.
Art.-Nr. 900986
DCU 2 YPV 1+2 1200 2M 1S MC4
New
  • Loading
  •
  •
  •
item

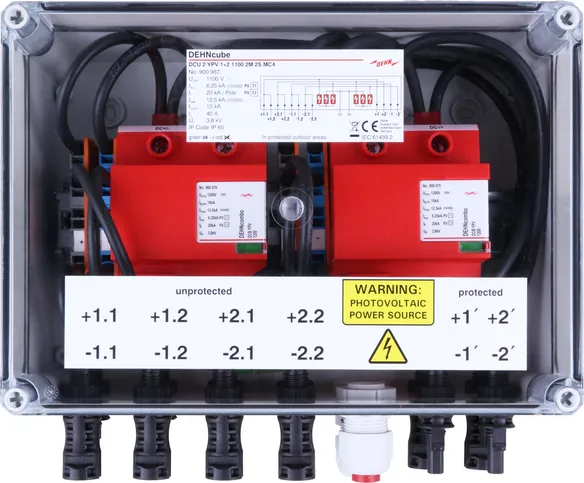

DEHNcube 2 YPV 1+2 1200 2M 2S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting two MPP inputs and two strings each.
Art.-Nr. 900987
DCU 2 YPV 1+2 1200 2M 2S MC4
New
  • Loading
  •
  •
  •
item

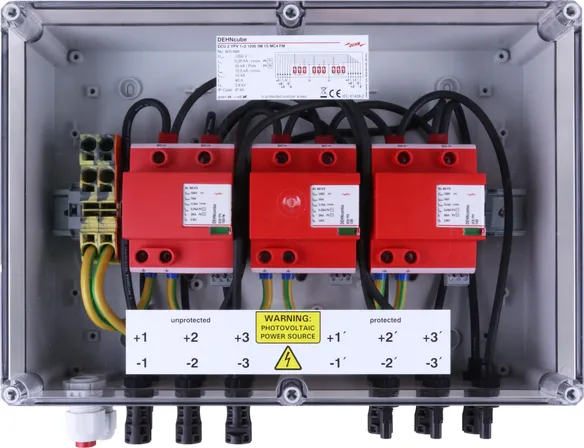

DEHNcube 2 YPV 1+2 1200 3M 1S MC4

Generator junction box for PV systems of up to 1200 V DC for protecting three MPP inputs and one string each.
Art.-Nr. 900988
DCU 2 YPV 1+2 1200 3M 1S MC4 FM
New
