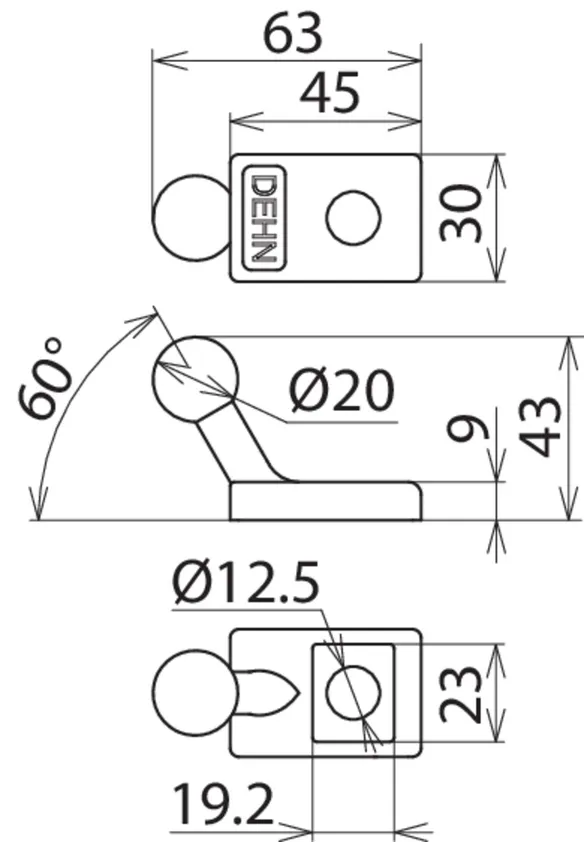

Angled with Terminal Lug
Art.-Nr. 706300
KFP 20 S AL 12
| Fixed ball point Ø | 20 mm |
| Bore Ø | 12.5 mm |
| Dimensions | 45 x 30 x 9 mm |
| Max. cable cross-section Cu | 50 mm² |
| Max. short-circuit current Ik 0.5 s | 14.0 kA |
| Max. short-circuit current Ik 1 s | 9.9 kA |

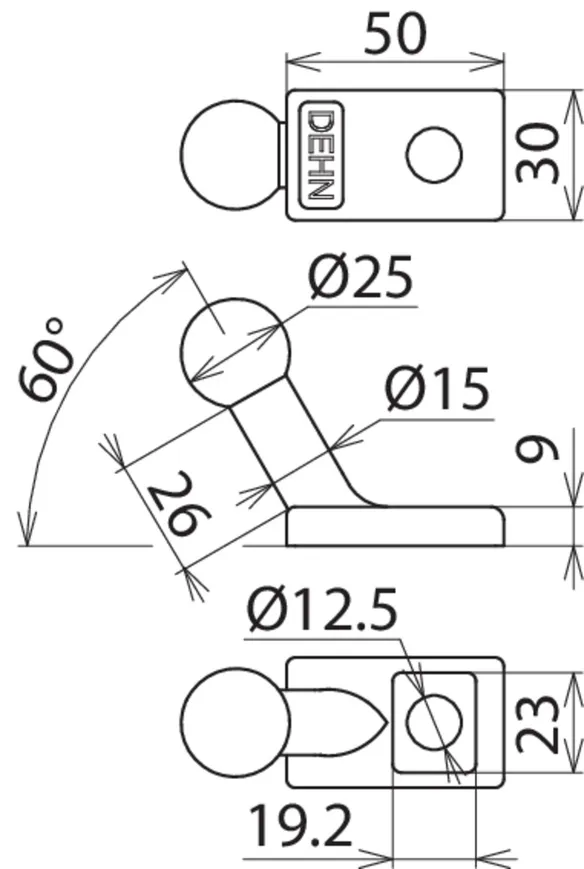

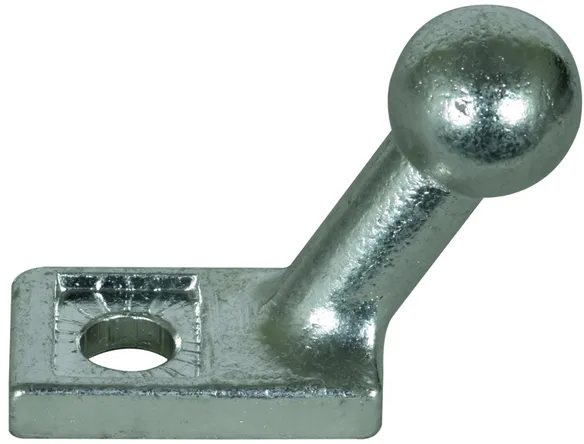

Angled with Terminal Lug
Art.-Nr. 756300
KFP 25 S AL 12
| Fixed ball point Ø | 25 mm |
| Bore Ø | 12.5 mm |
| Dimensions | 50 x 30 x 9 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

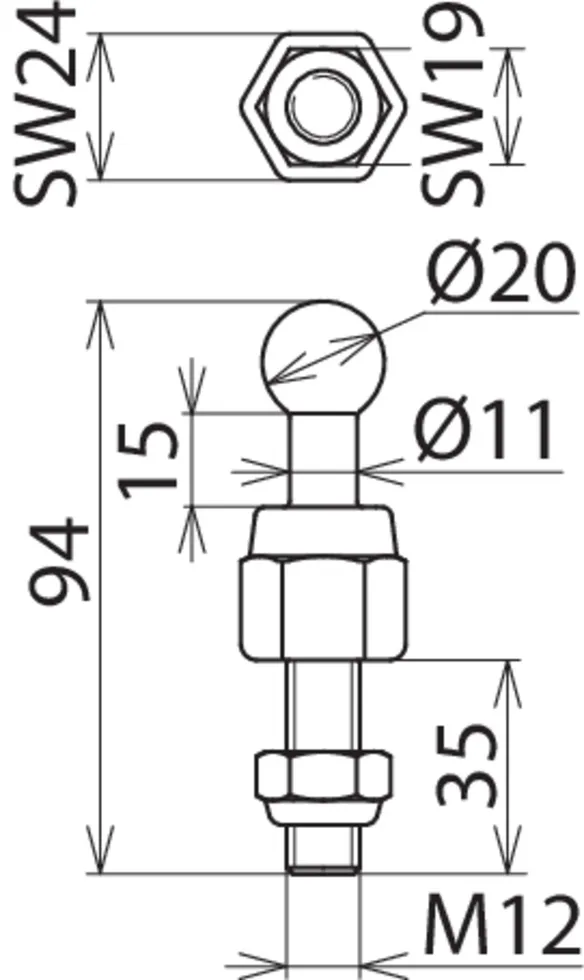

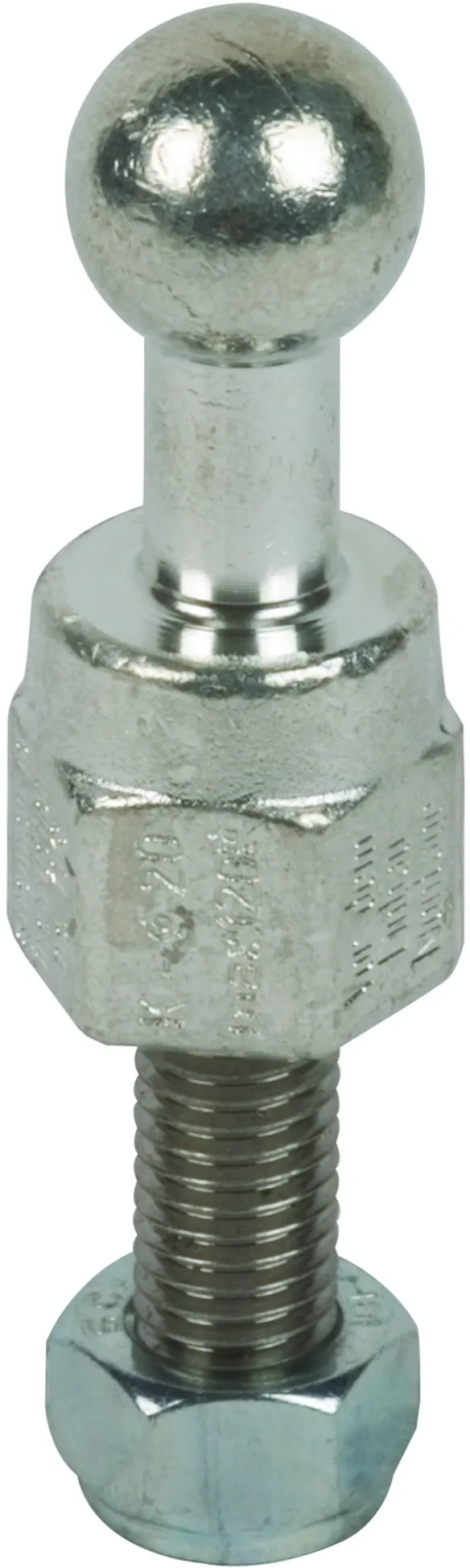

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 754235
KFP 20 M12 35 SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 x 35 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |

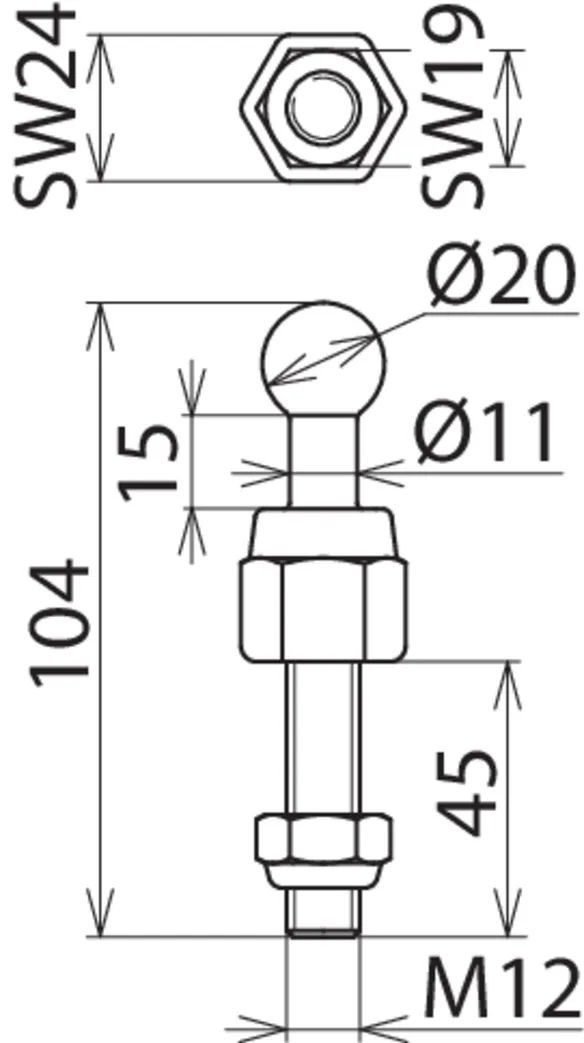

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 754238
KFP 20 M12 45 SN7078
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 x 45 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |

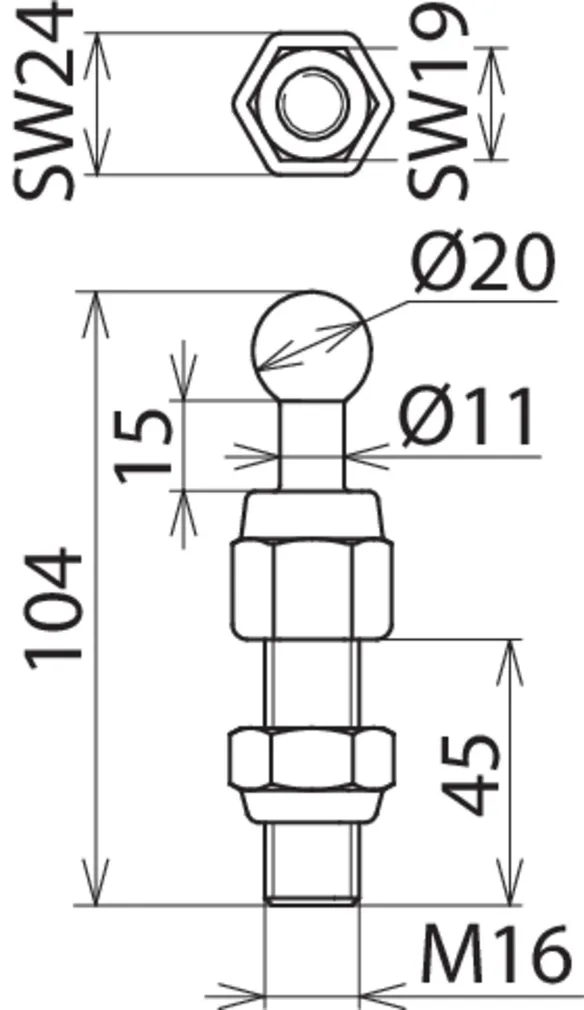

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 754645
KFP 20 M16 45 SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |

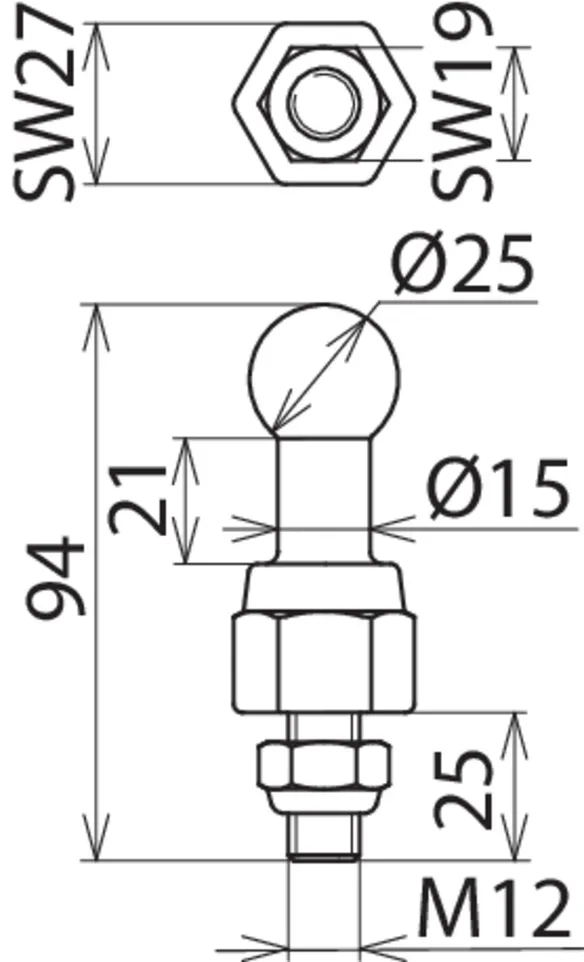

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 755225
KFP 25 M12 25 SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 25 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |

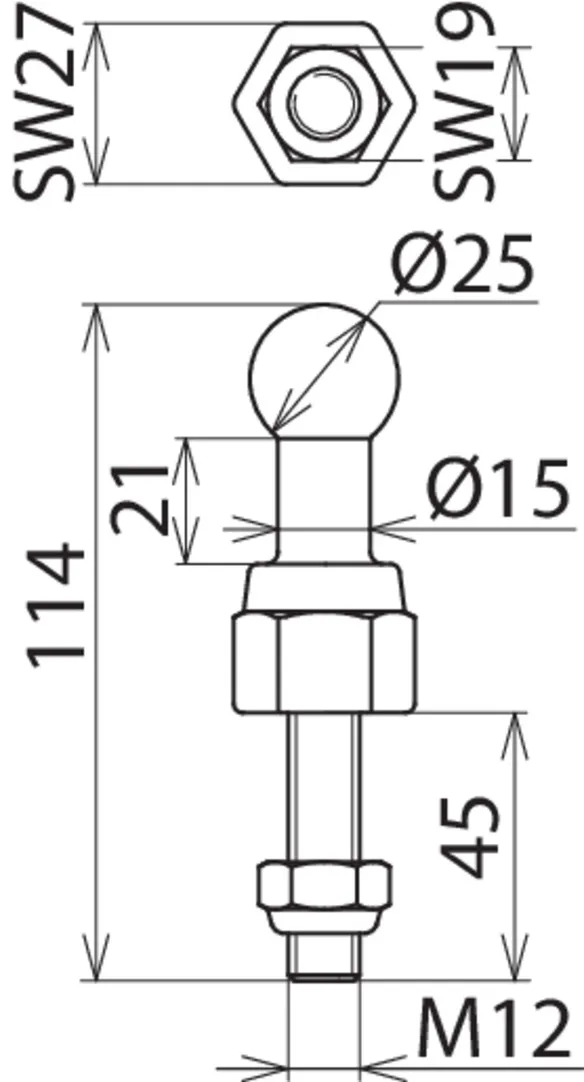

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 755245
KFP 25 M12 45 SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |

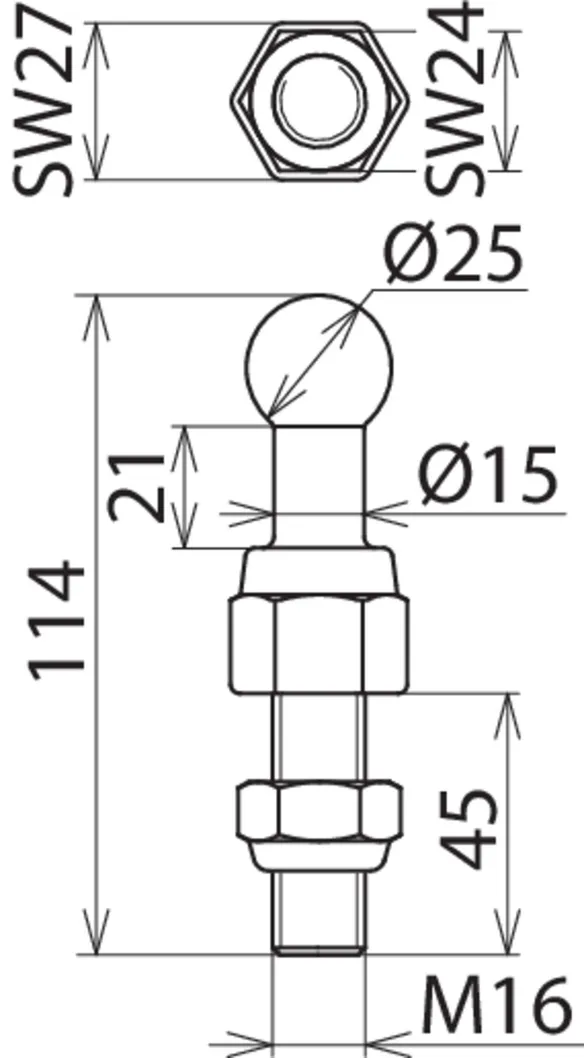

Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 755645
KFP 25 M16 45 SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |
Straight with Threaded Pin and Self-locking Nut
Art.-Nr. 755247
KFP 25 M12 45 SN7125
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |

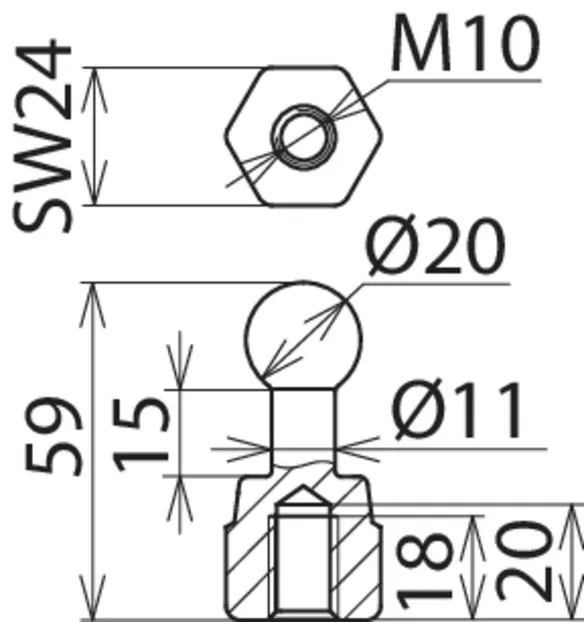

Straight with Female Thread
Art.-Nr. 754205
KFP 20 M10
| Fixed ball point Ø | 20 mm |
| Dimensions | M10 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |

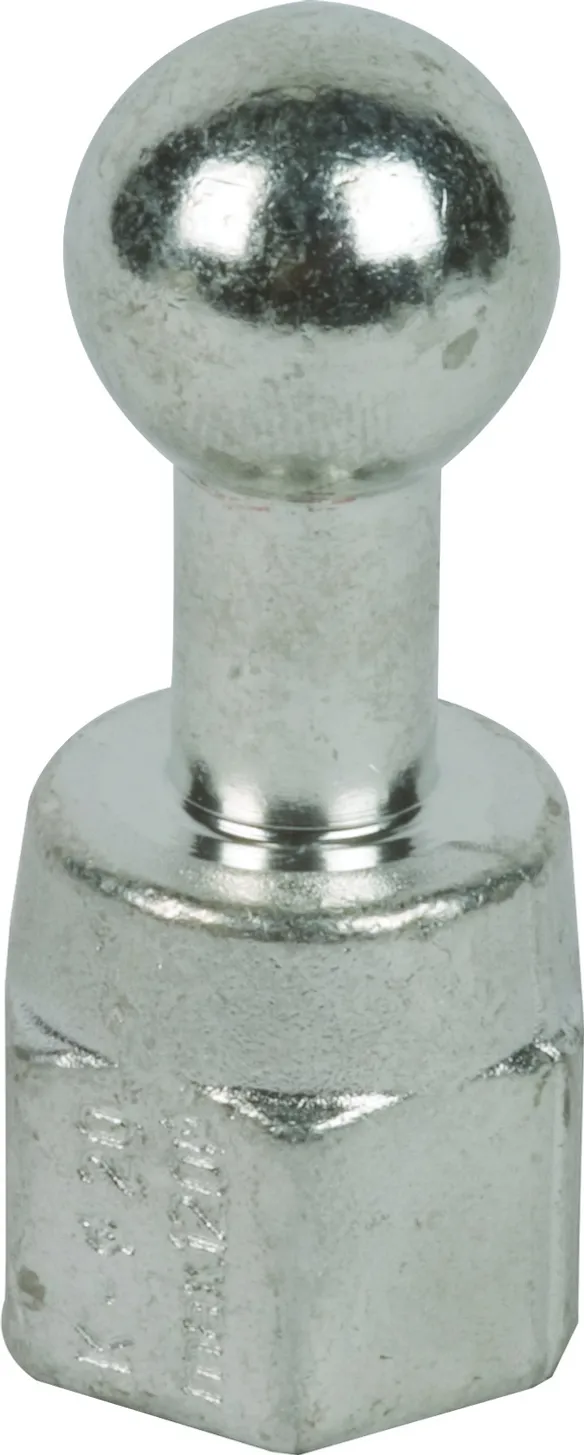

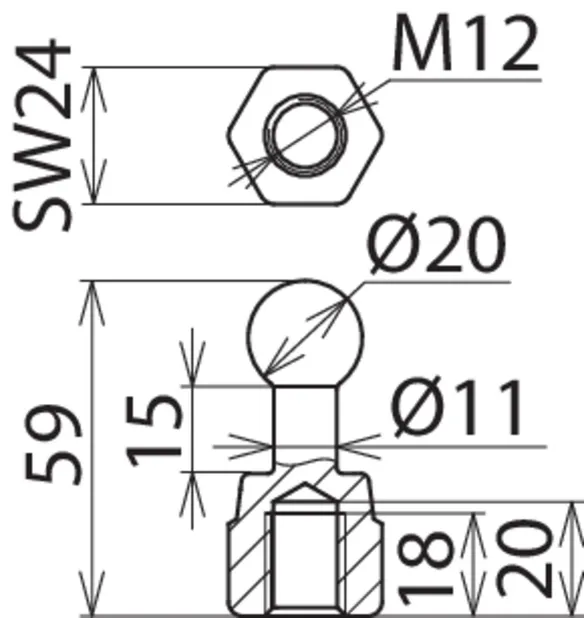

Straight with Female Thread
Art.-Nr. 754200
KFP 20 M12
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |
Straight with Female Thread
Art.-Nr. 754600
KFP 20 M16
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 120 mm² |
| Max. short-circuit current Ik 0.5 s | 33.5 kA |
| Max. short-circuit current Ik 1 s | 23.7 kA |

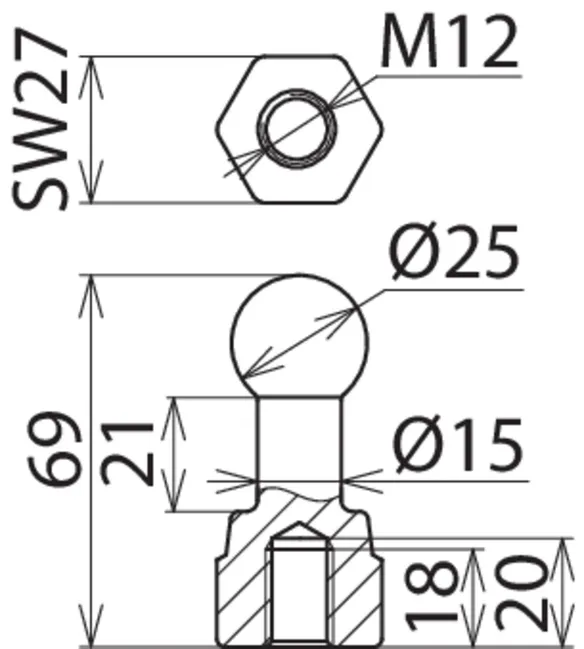

Straight with Female Thread
Art.-Nr. 755200
KFP 25 M12
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |

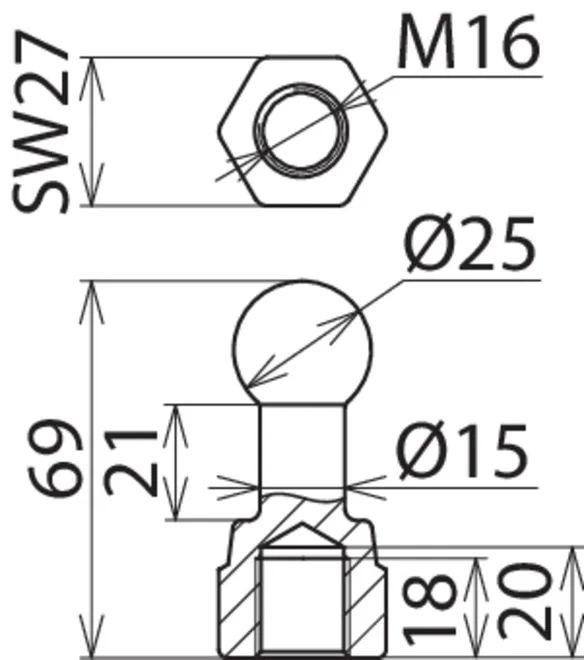

Straight with Female Thread
Art.-Nr. 755600
KFP 25 M16
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 150 mm² |
| Max. short-circuit current Ik 0.5 s | 42.0 kA |
| Max. short-circuit current Ik 1 s | 29.6 kA |

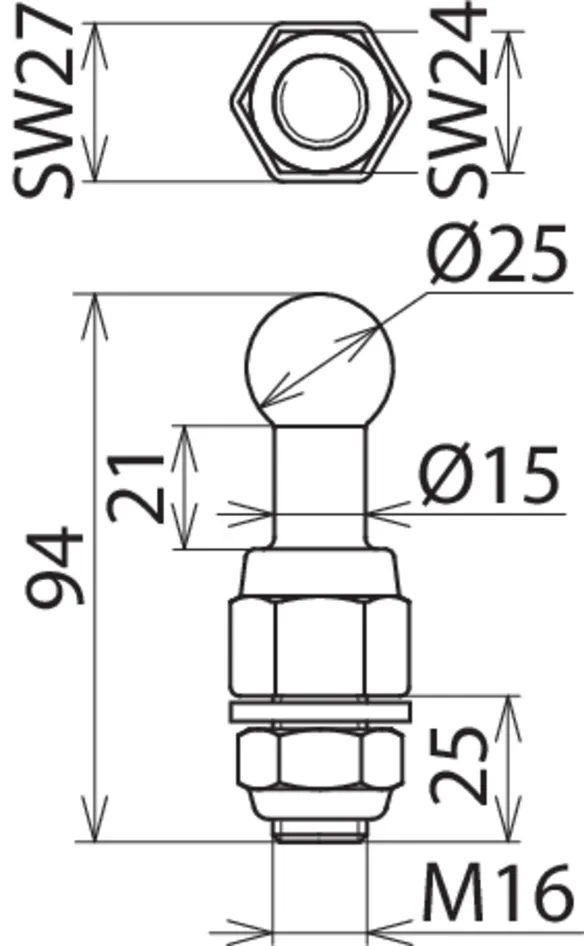

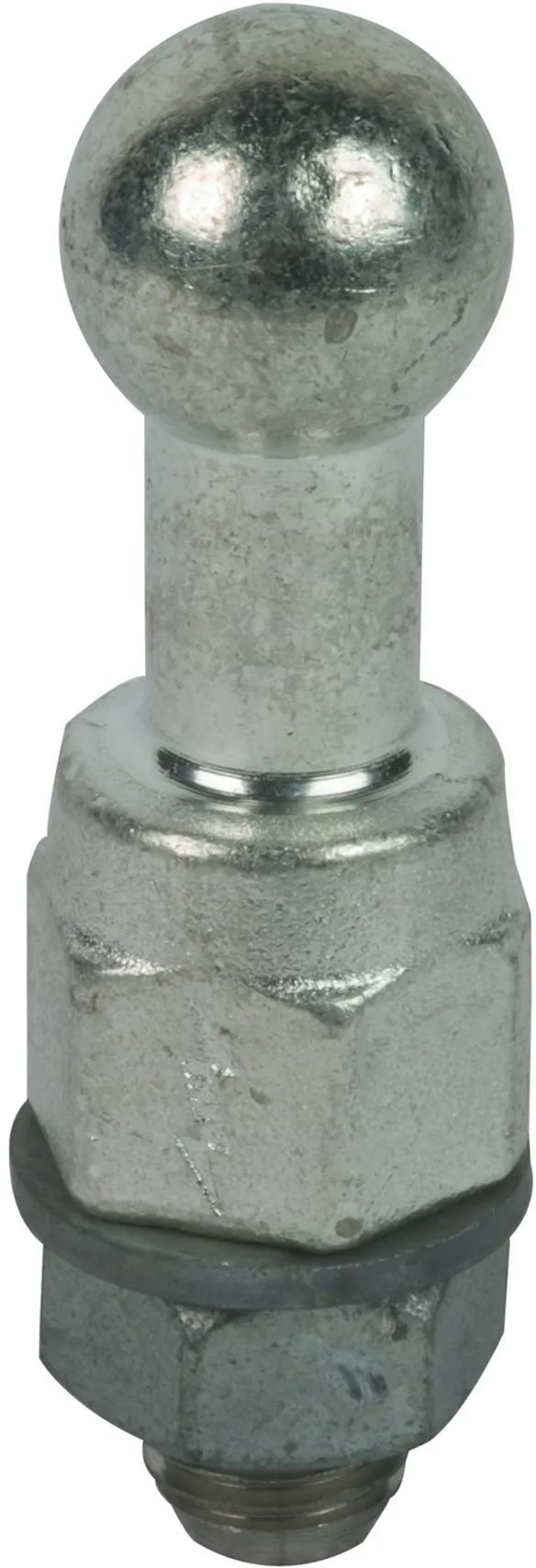

Straight with Threaded Pin, Nut and Washer
Art.-Nr. 755626
KFP 25 M16 25 SKM
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 25 mm |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 3 Ebgw 01.63 |
| DB Material No. | 157 541 |

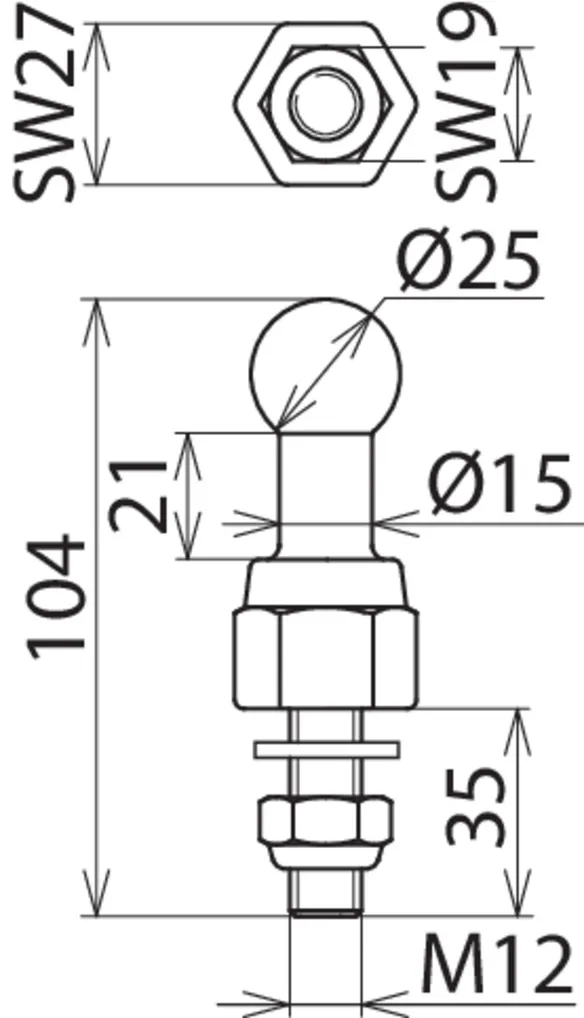

Straight with Threaded Pin, Nut and Washer
Art.-Nr. 755627
KFP 25 M12 35 SKM
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 35 mm |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 3 Ebgw 01.63 |
| DB Material No. | 622 014 |

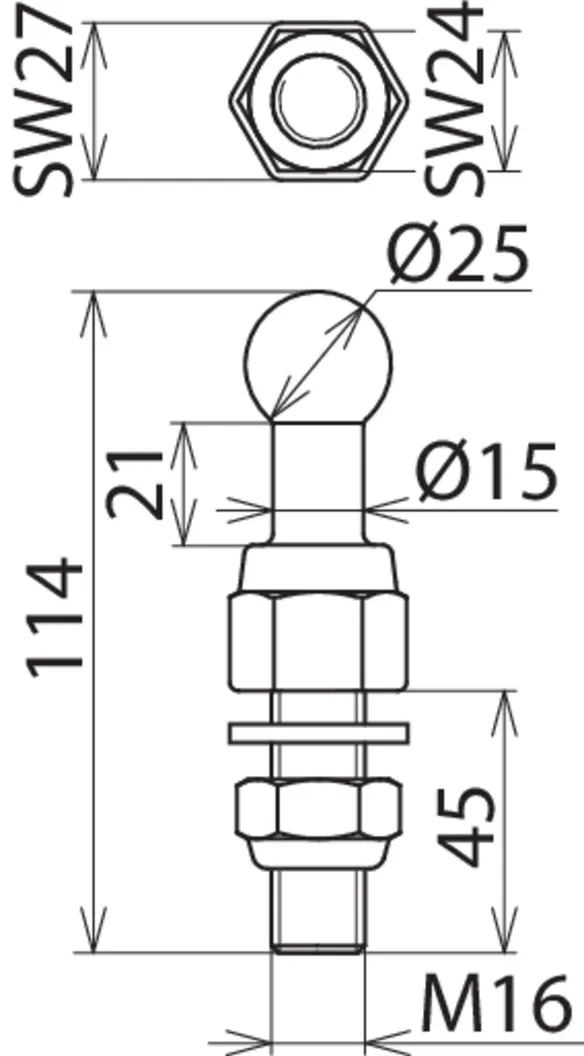

Straight with Threaded Pin, Nut and Washer
Art.-Nr. 755646
KFP 25 M16 45 SKM
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 45 mm |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 3 Ebgw 01.63 |
| DB Material No. | 157 542 |

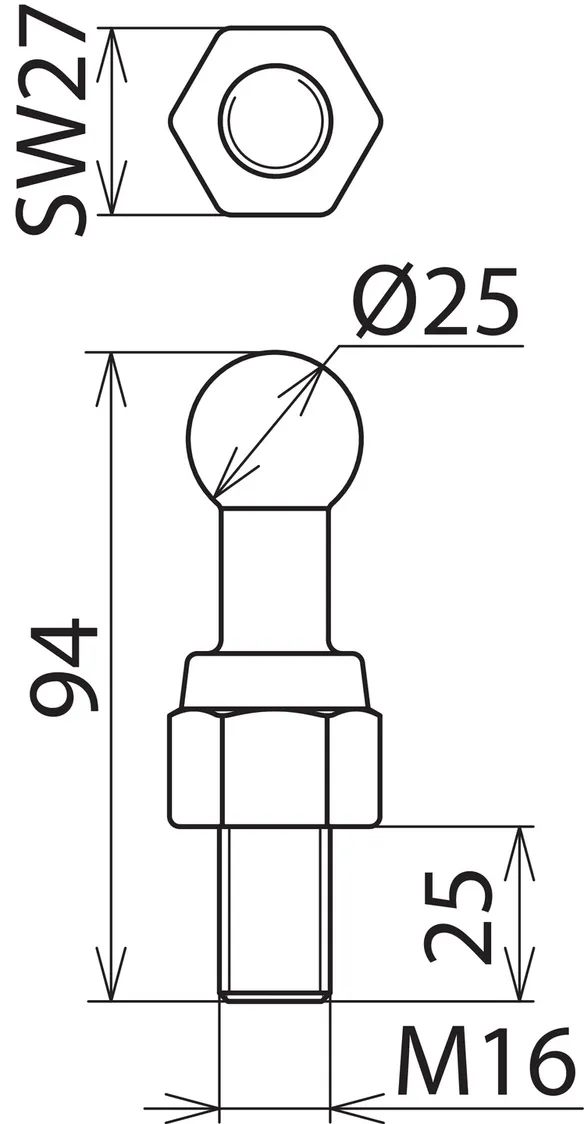

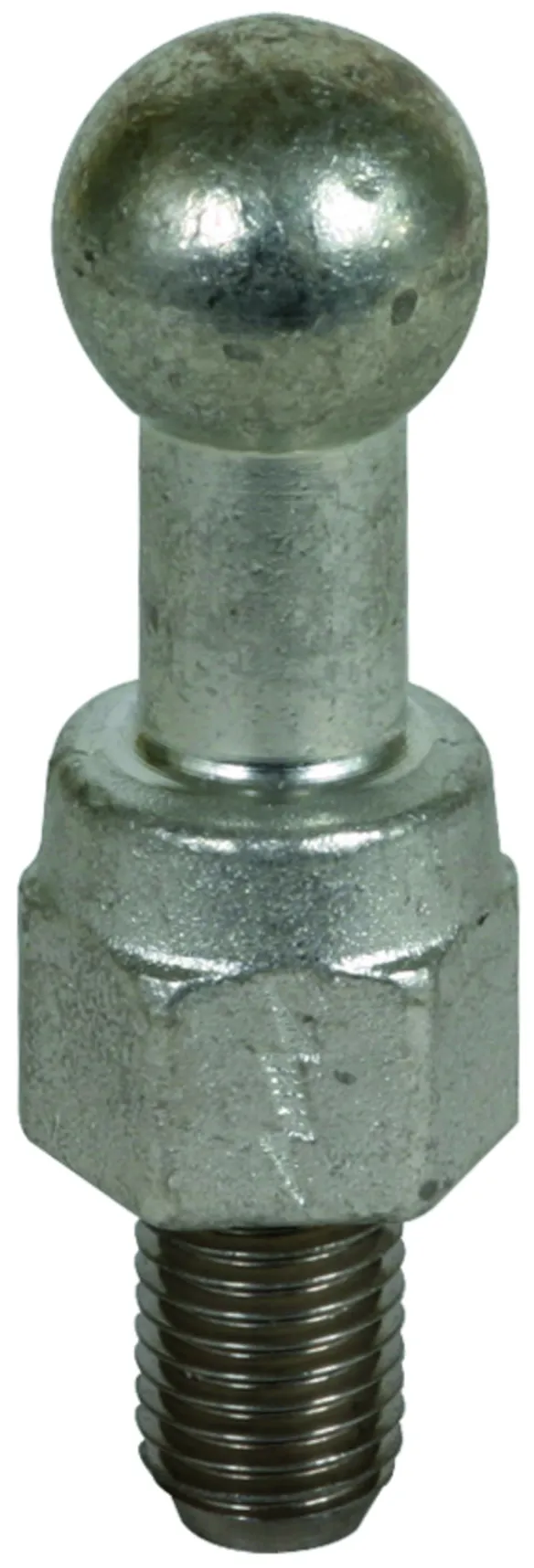

Straight with Threaded Pin
Art.-Nr. 755636
KFP 25 M16 25
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 25 mm |
| Max. short-circuit current Ik 0.06 s | 34.0 kA |
| DB drawing No. | 3 Ebgw 01.63 |
| DB Material No. | 609 426 |
Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725010
KFP 25 RL 10
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 10 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725012
KFP 25 RL 12
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 12 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725014
KFP 25 RL 14
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 14 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

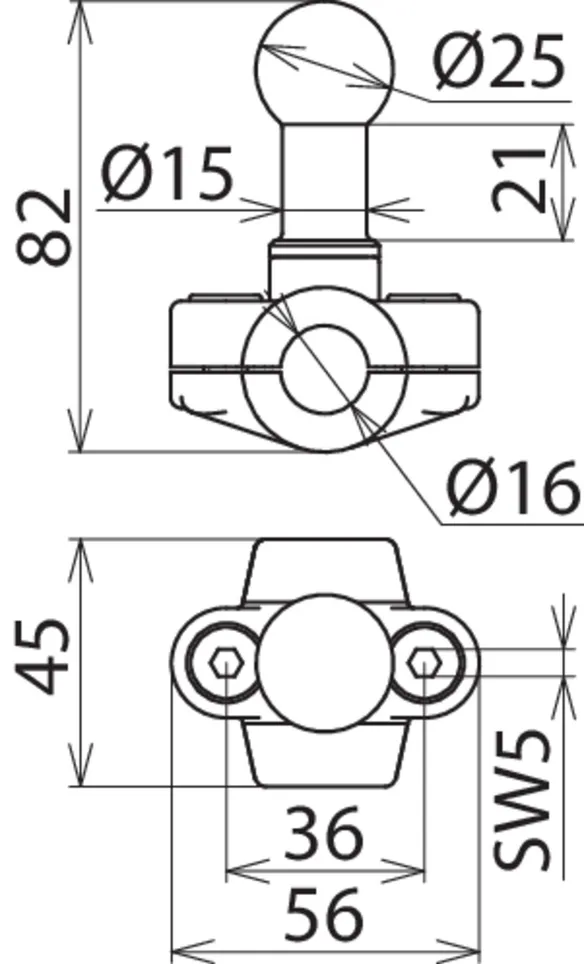

Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725016
KFP 25 RL 16
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 16 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

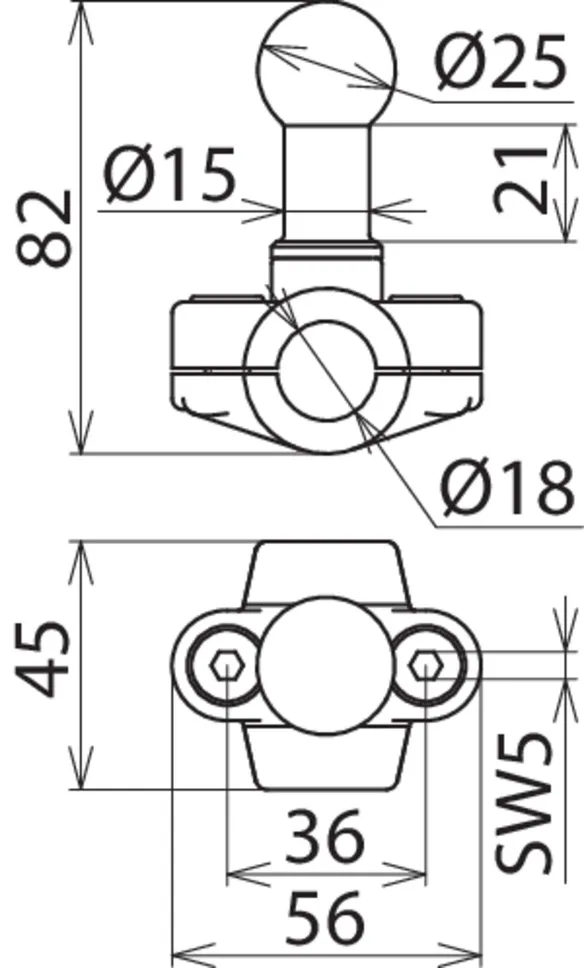

Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725018
KFP 25 RL 18
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 18 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

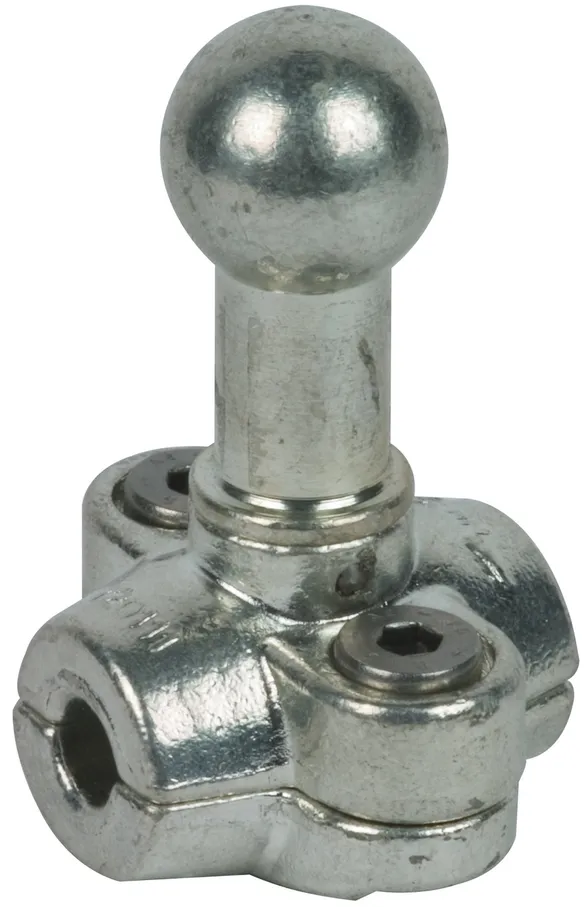

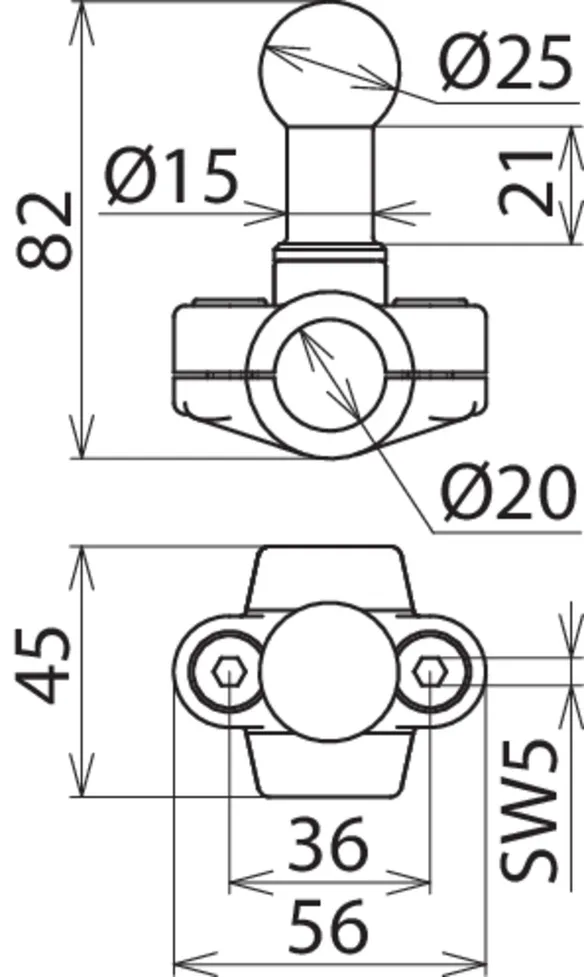

Straight with Round Conductor Half Shell for Round Copper Conductors
Art.-Nr. 725020
KFP 25 RL 20
| Fixed ball point Ø | 25 mm |
| For round conductor Ød | 20 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

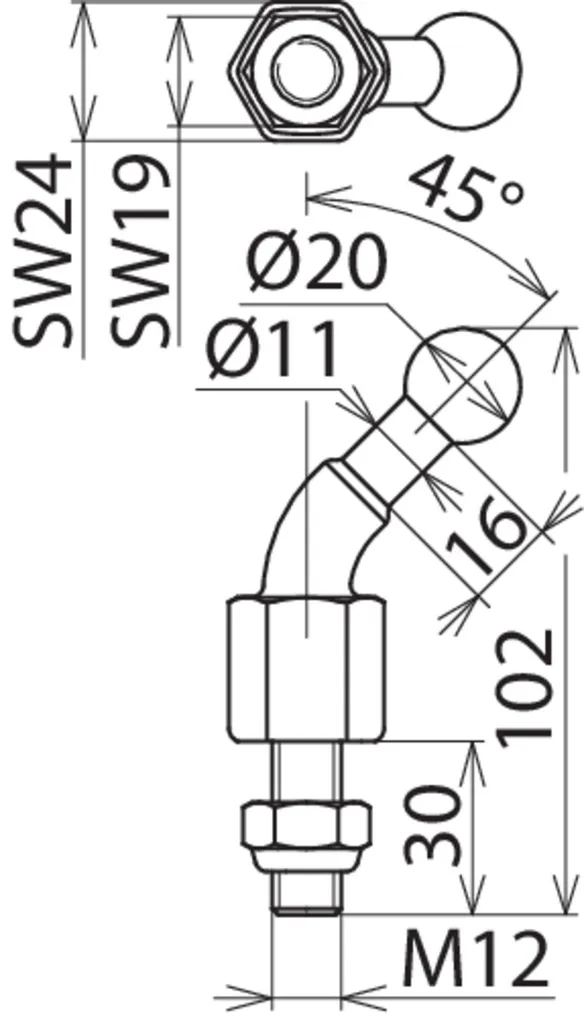

45° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 706239
KFP 20 W45M12 SN7024
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 x 30 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

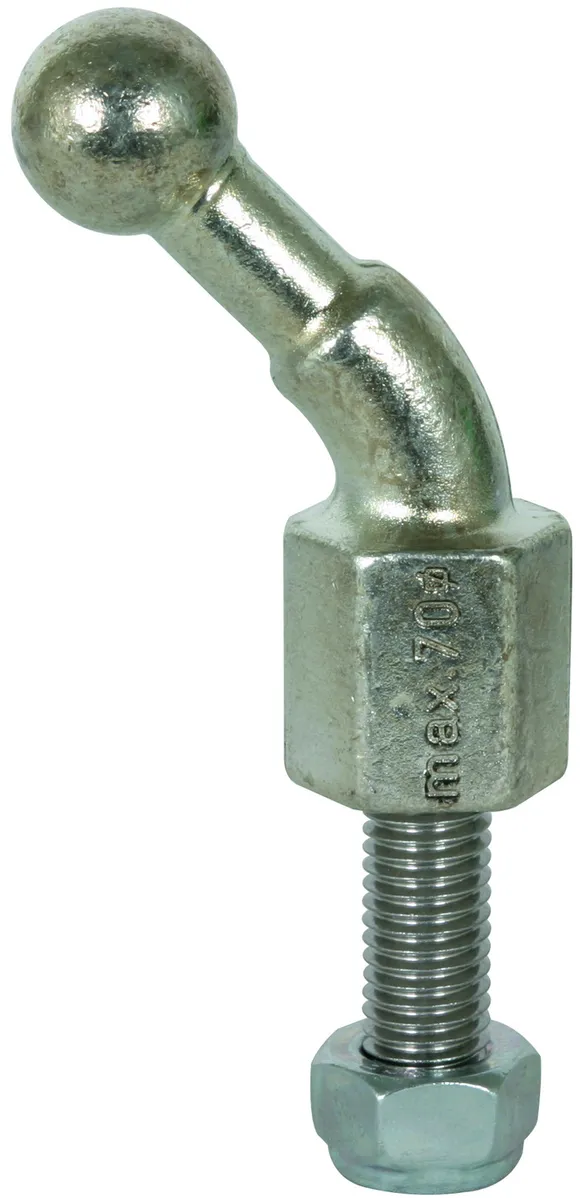

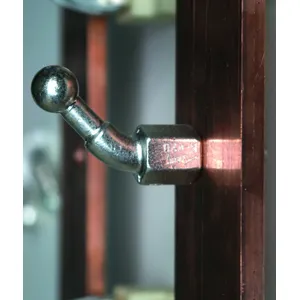

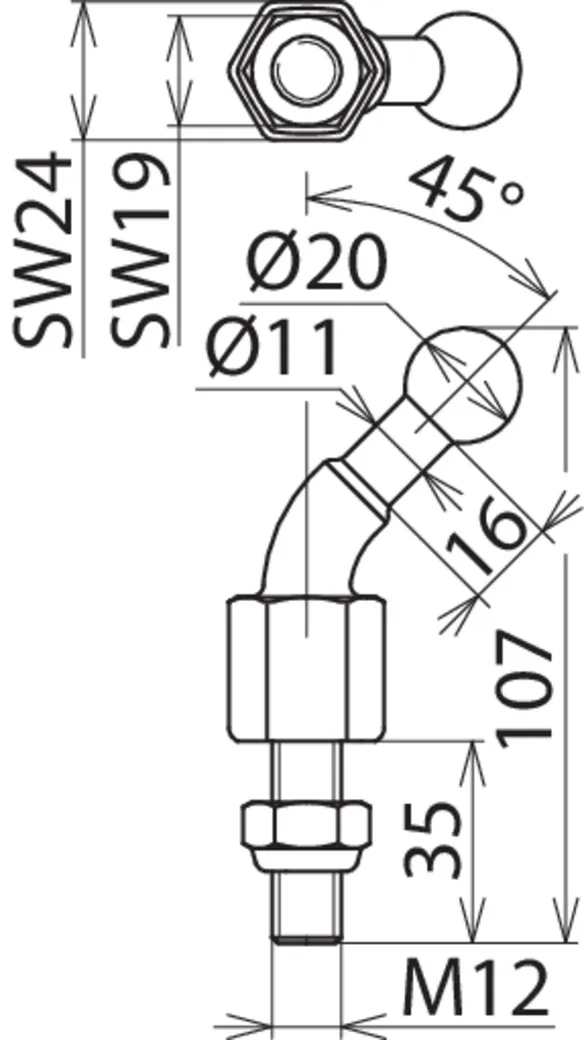

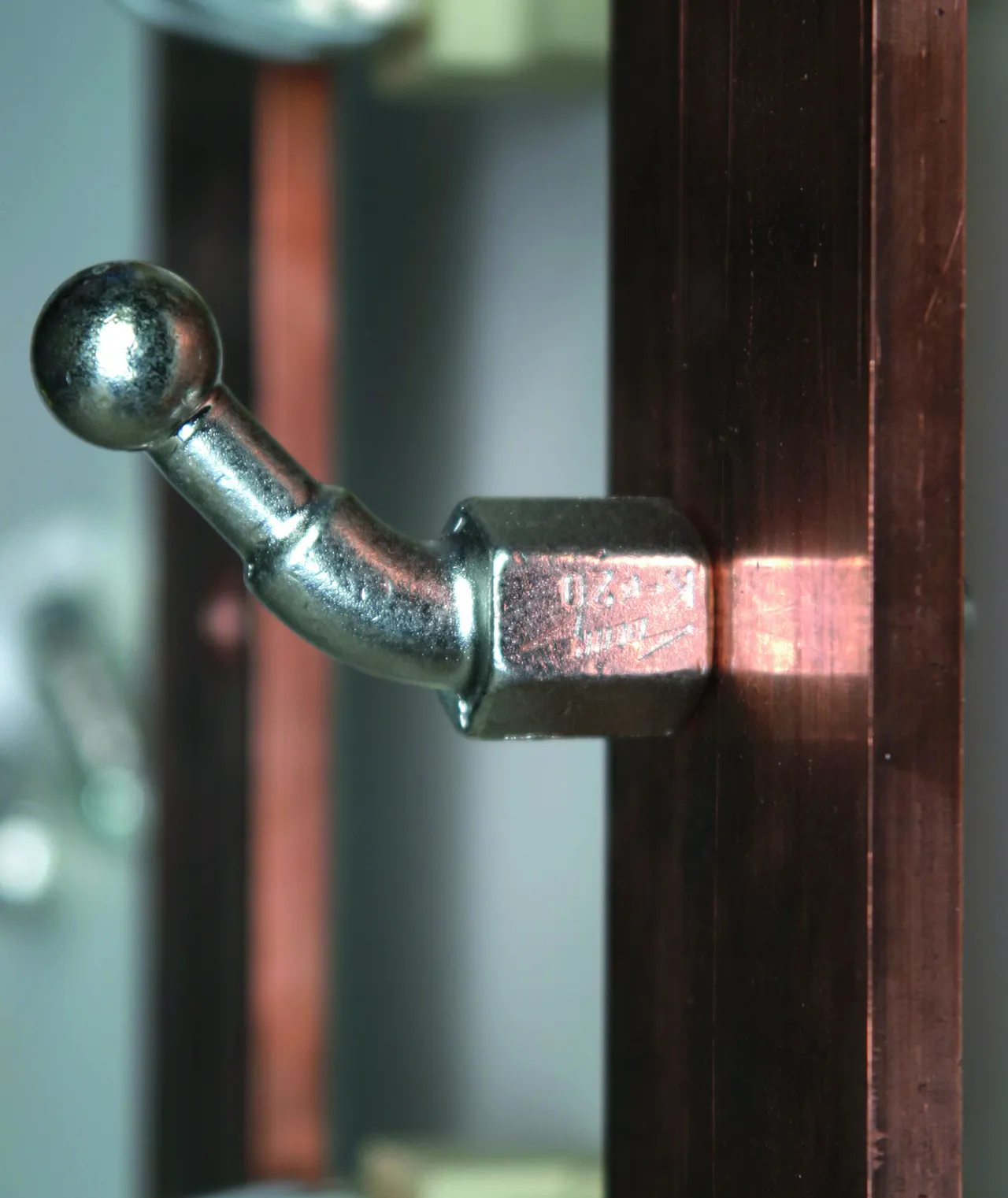

45° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 706235
KFP 20 W45 M12 35SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 x 35 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

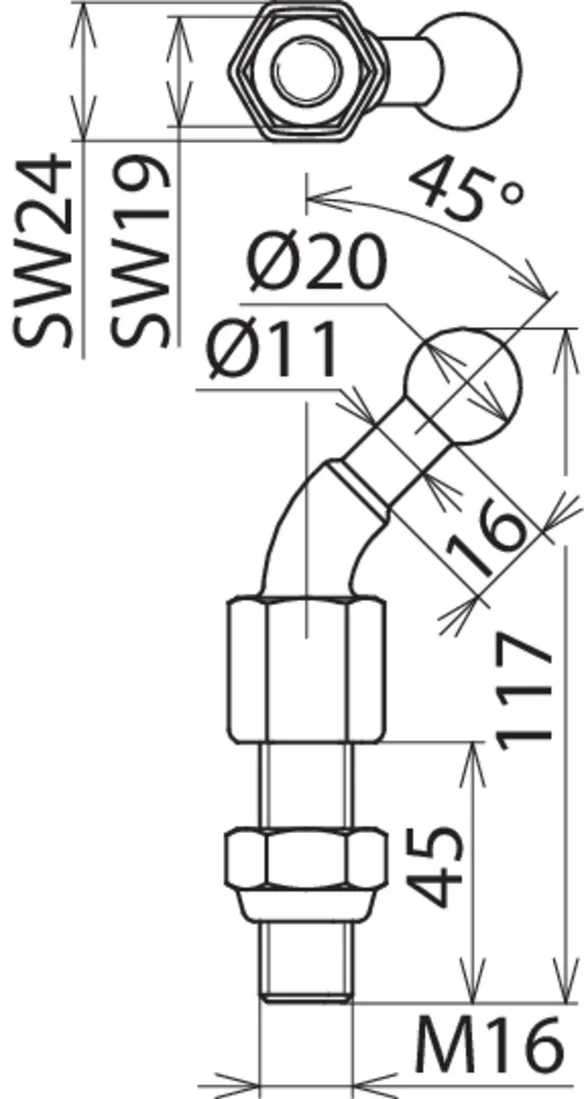

45° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 706645
KFP 20 W45 M16 45SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

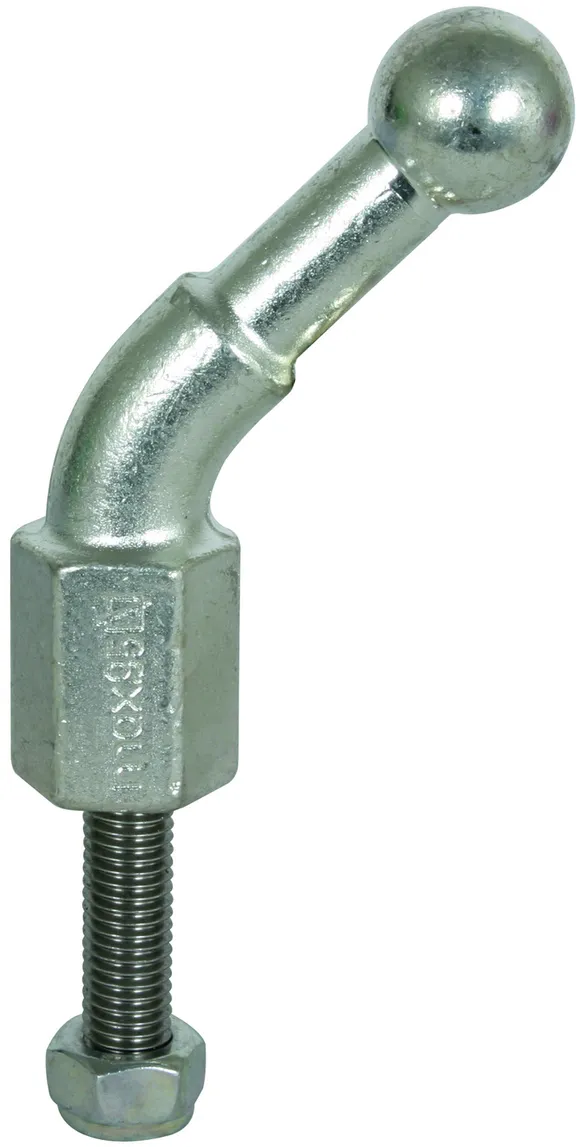

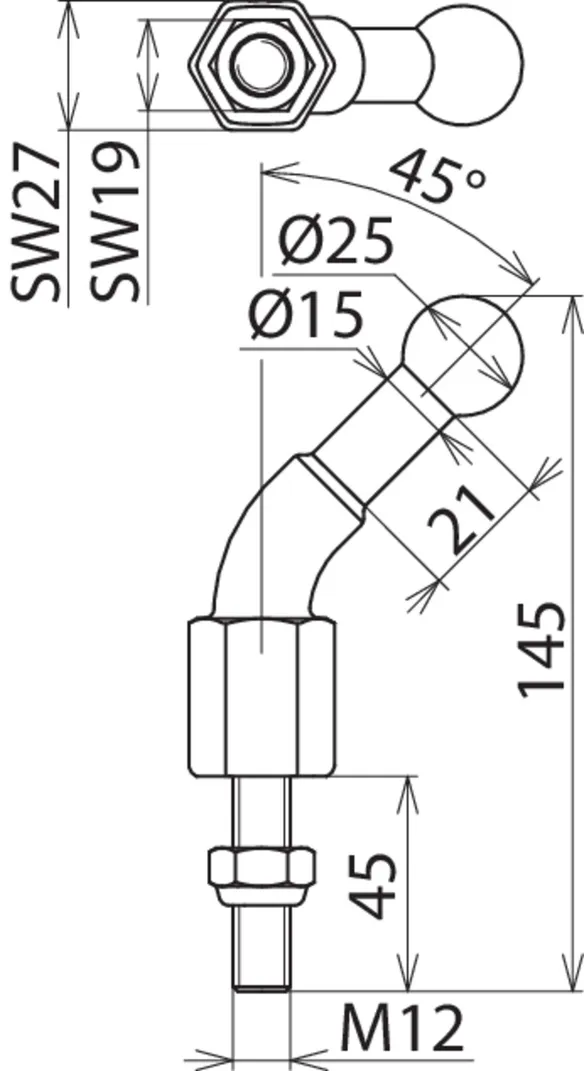

45° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 756245
KFP 25 W45 M12 45SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

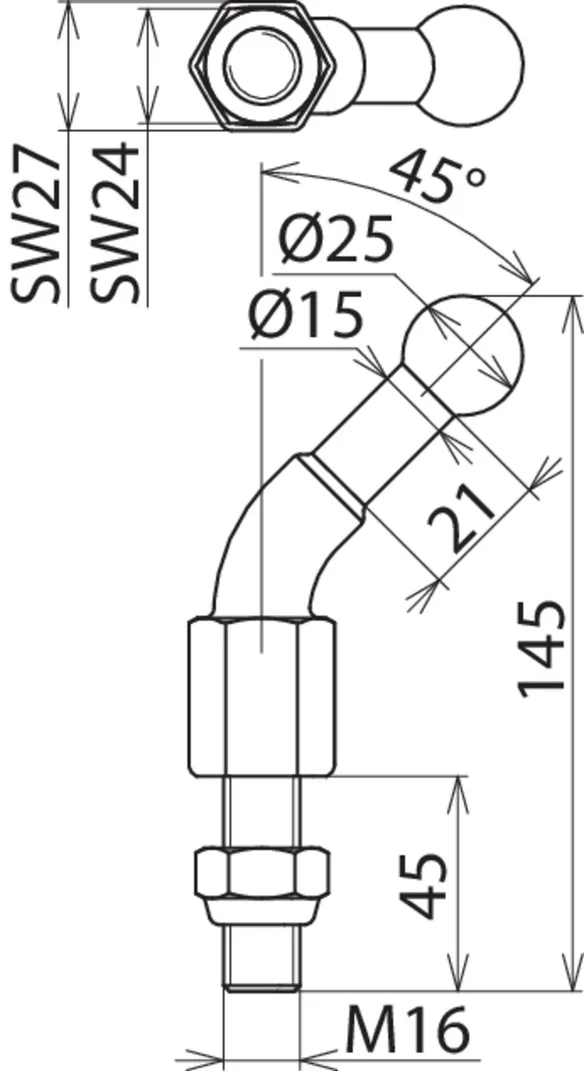

45° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 756645
KFP 25 W45 M16 45SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

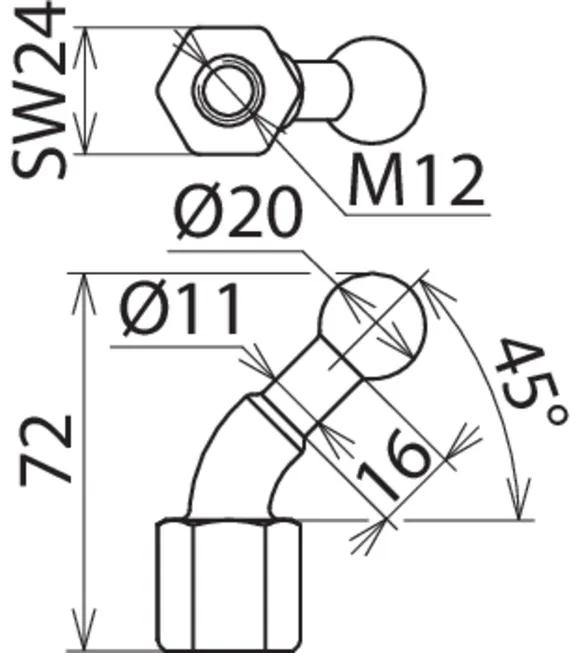

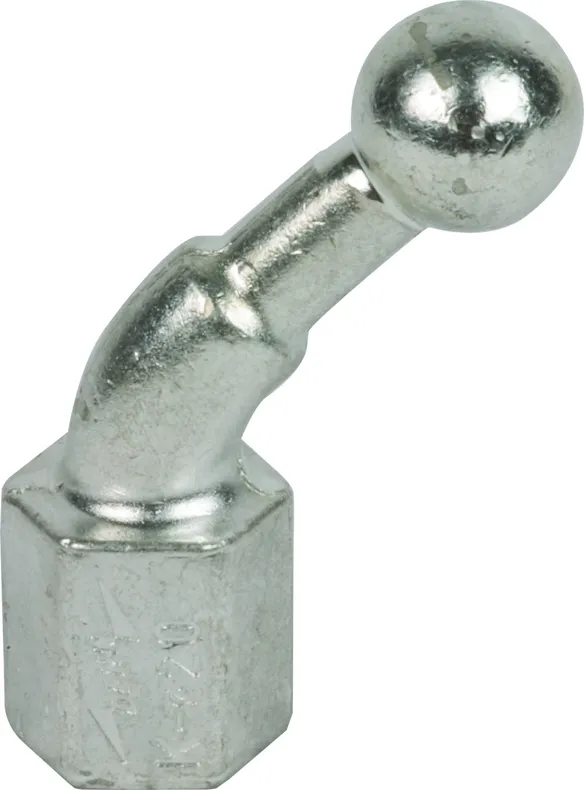

45° angled with Female Thread
Art.-Nr. 706200
KFP 20 W45 M12
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

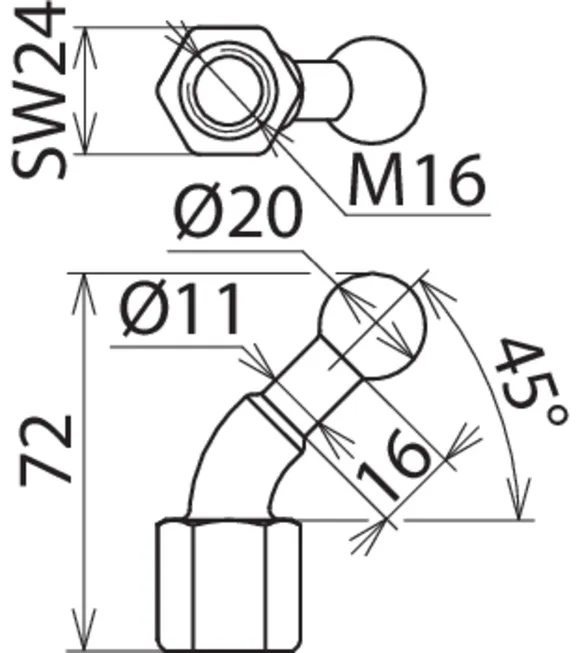

45° angled with Female Thread
Art.-Nr. 706600
KFP 20 W45 M16
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

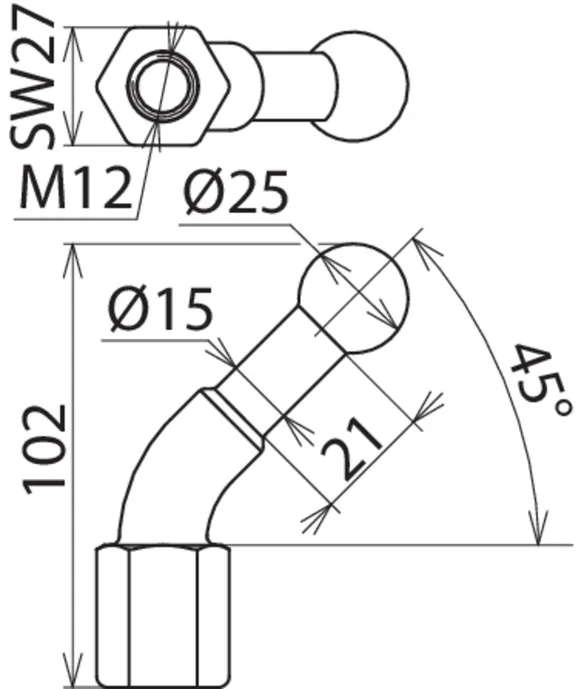

45° angled with Female Thread
Art.-Nr. 756200
KFP 25 W45 M12
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

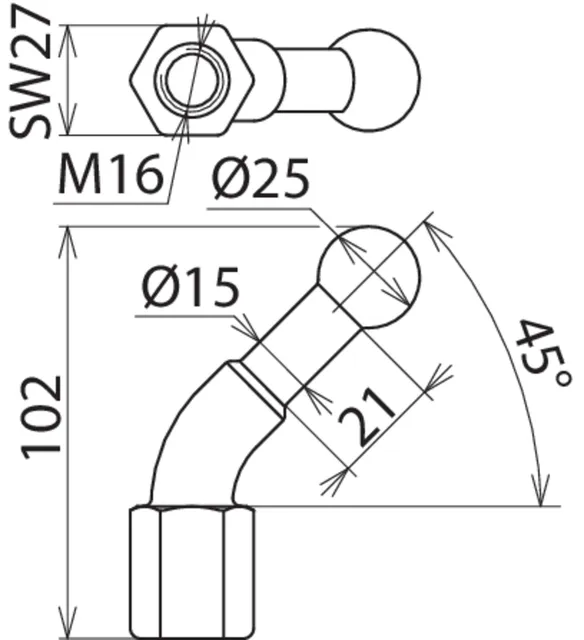

45° angled with Female Thread
Art.-Nr. 756600
KFP 25 W45 M16
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

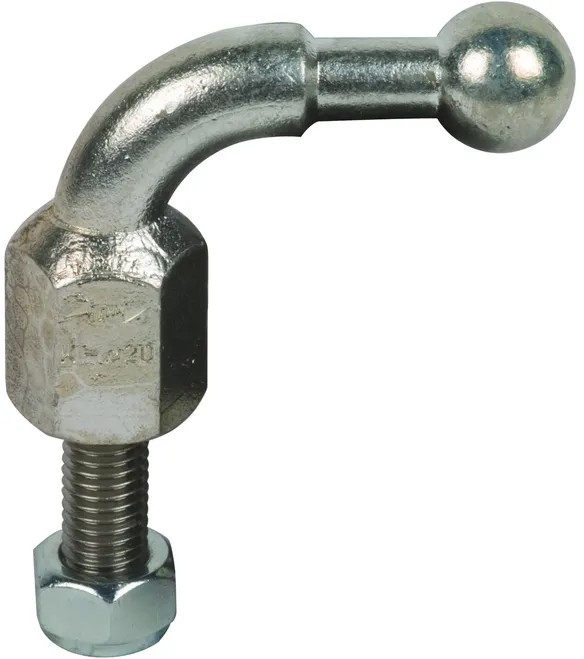

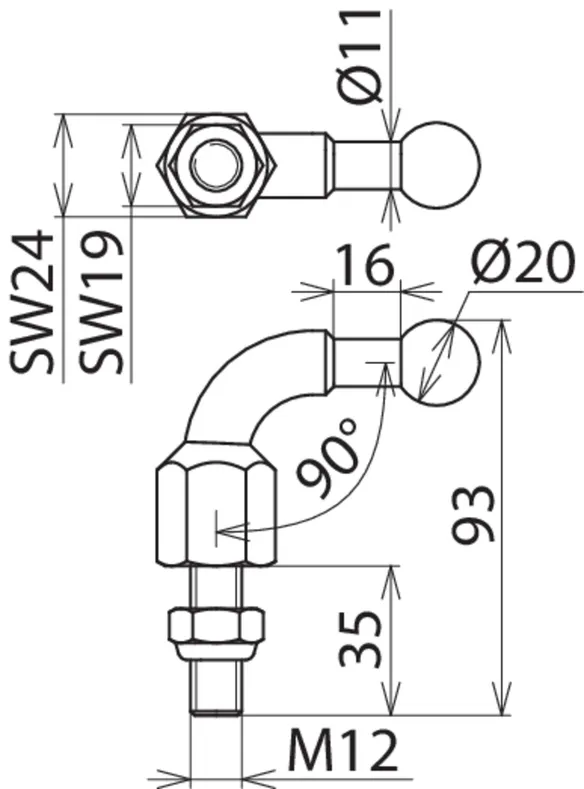

90° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 707235
KFP 20 W90 M12 35SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 x 35 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

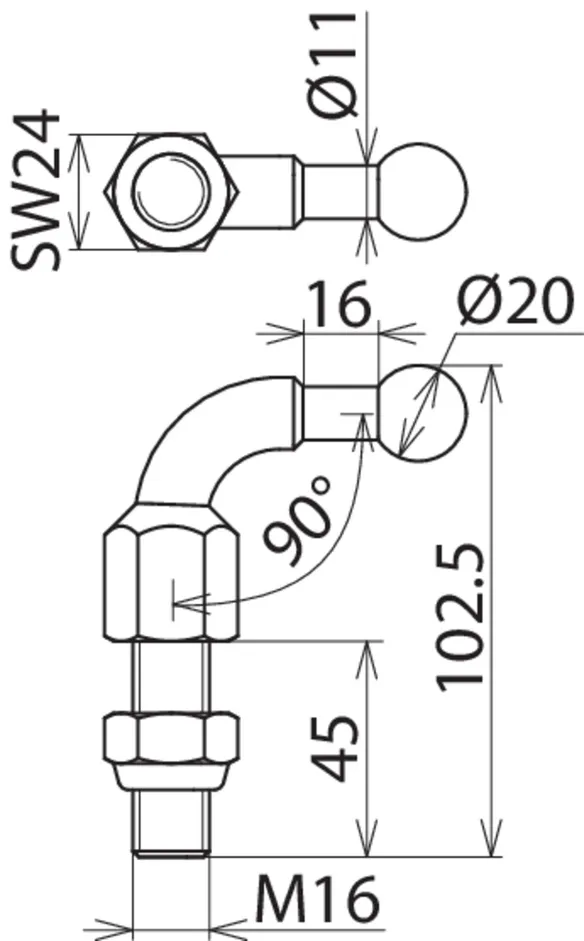

90° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 707645
KFP 20 W90 M16 45SSM
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

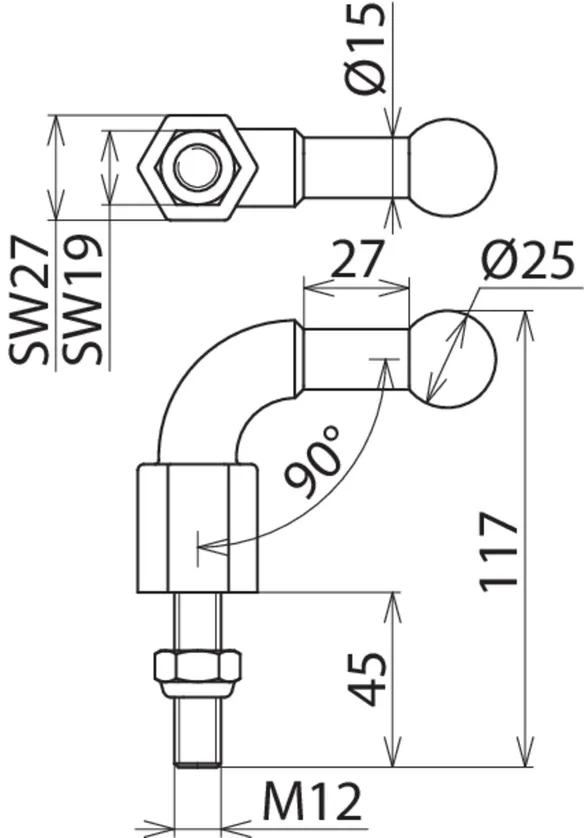

90° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 757245
KFP 25 W90 M12 45SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

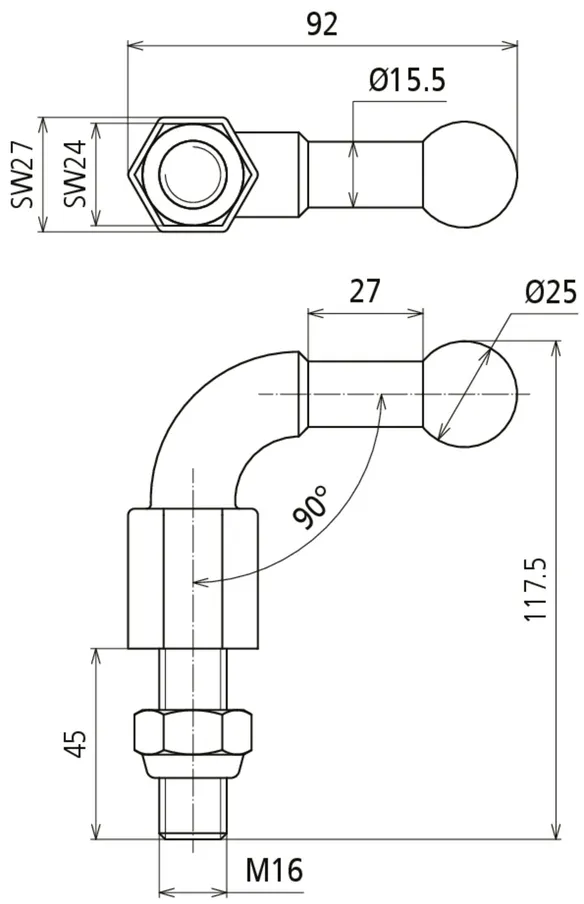

90° angled with Threaded Pin and Self-locking Nut
Art.-Nr. 757645
KFP 25 W90 M16 45SSM
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 x 45 mm |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

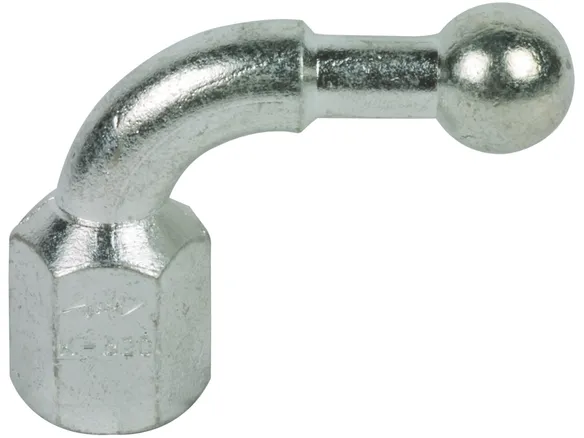

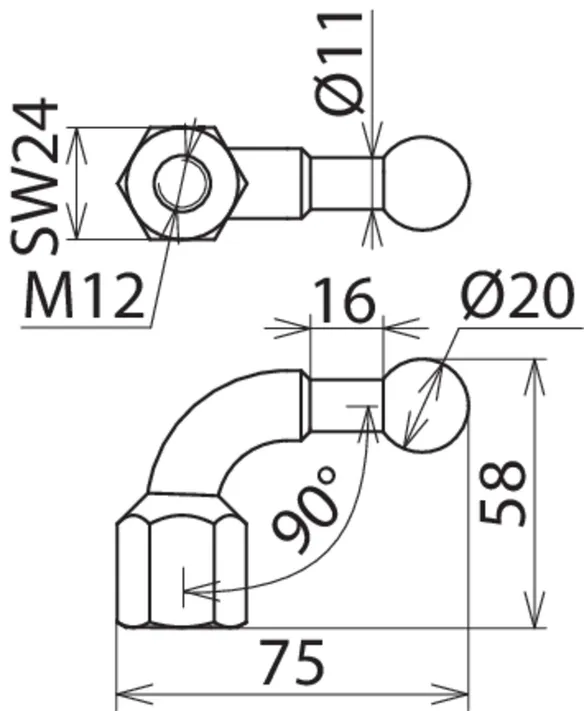

90° angled with Female Thread
Art.-Nr. 707200
KFP 20 W90 M12
| Fixed ball point Ø | 20 mm |
| Dimensions | M12 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |

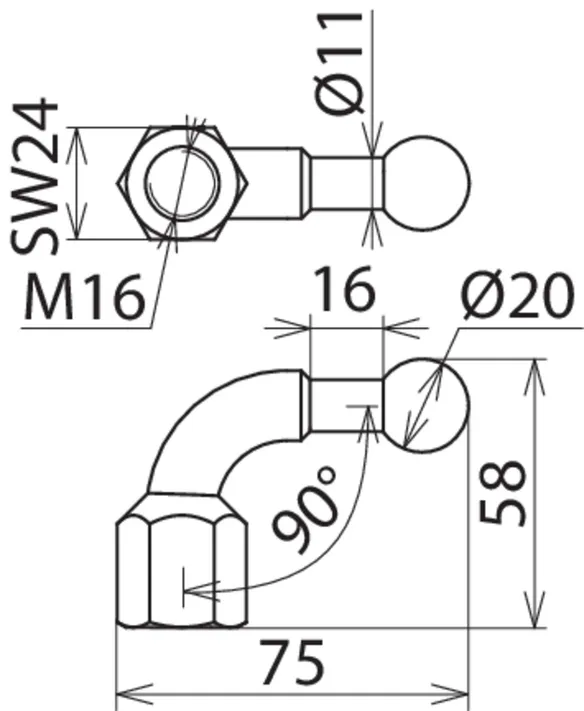

90° angled with Female Thread
Art.-Nr. 707600
KFP 20 W90 M16
| Fixed ball point Ø | 20 mm |
| Dimensions | M16 |
| width across flats | 24 mm |
| Max. cable cross-section Cu | 70 mm² |
| Max. short-circuit current Ik 0.5 s | 19.5 kA |
| Max. short-circuit current Ik 1 s | 13.8 kA |
90° angled with Female Thread
Art.-Nr. 757200
KFP 25 W90 M12
| Fixed ball point Ø | 25 mm |
| Dimensions | M12 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |

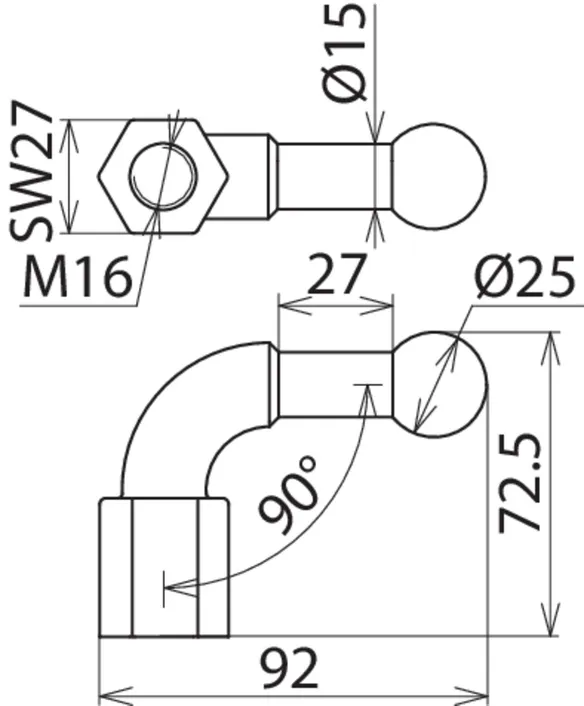

90° angled with Female Thread
Art.-Nr. 757600
KFP 25 W90 M16
| Fixed ball point Ø | 25 mm |
| Dimensions | M16 |
| width across flats | 27 mm |
| Max. cable cross-section Cu | 95 mm² |
| Max. short-circuit current Ik 0.5 s | 26.5 kA |
| Max. short-circuit current Ik 1 s | 18.7 kA |
