Concrete bases

For air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers from the DEHNiso spacer product line, e.g. for isolated ring conductors or for self-supporting air-termination rods in the tripod (only with a weight of 17 kg).

Note: Please contact us to find out whether the material of the roof conductor holder or base plate is compatible with the roof elements.

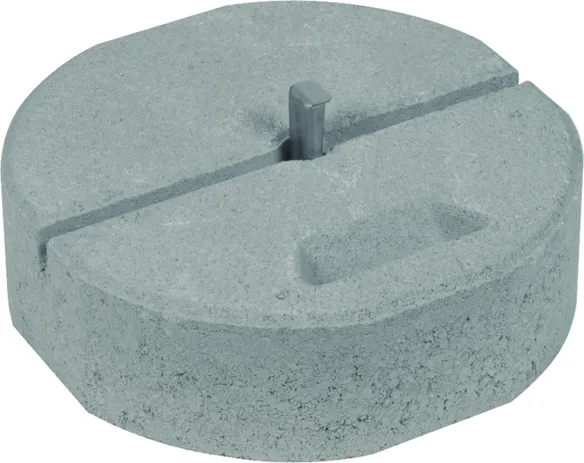

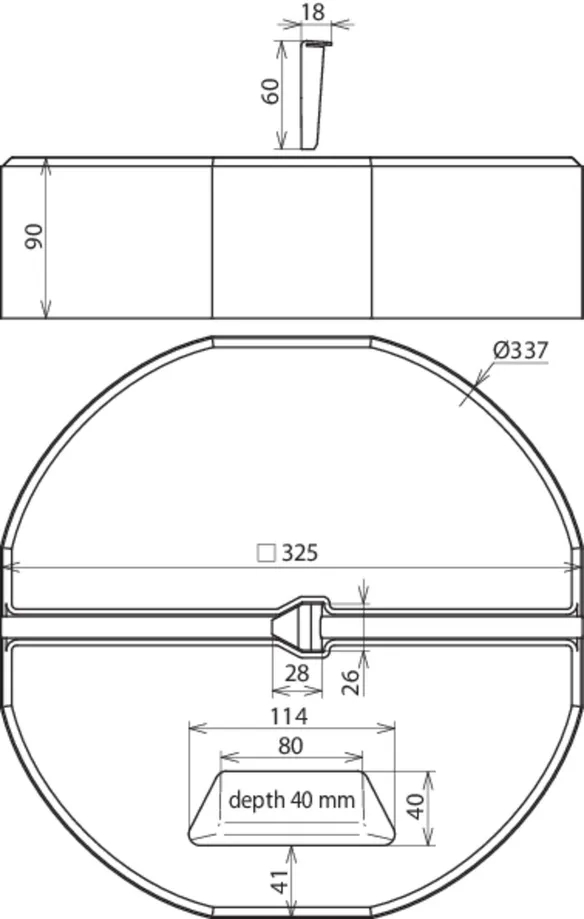

Weight 17 kg, with fixing wedge

Concrete base for air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors or for self-supporting air-termination rods with tripod. Stackable, for air-termination rods Ø16 mm, chamered, tapered, or DEHNiso spacers Ø16 mm.
Art.-Nr. 102010
BES 17KG KT16 D337 SET
  • Loading
  •
  •
item

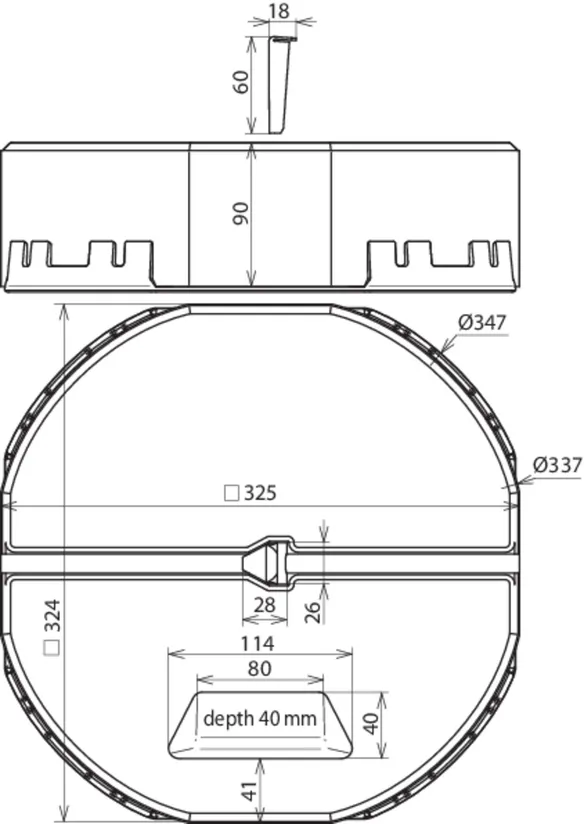

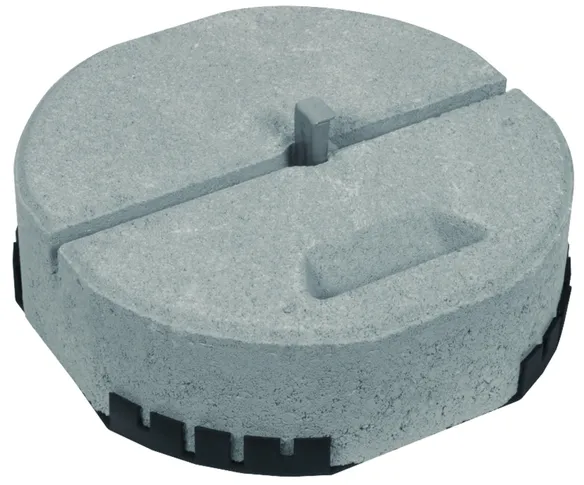

Weight 17 kg, concrete base with fixing wedge and adapted base plate

Concrete base for air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors or for self-supporting air-termination rods with tripod. Stackable, with adapted plastic base plate, for air-termination rods Ø16 mm, chamered, tapered, or DEHNiso spacers Ø16 mm.
Art.-Nr. 102340
BES 17KG KT16 ULP D337 SET
  • Loading
  •
  •
item

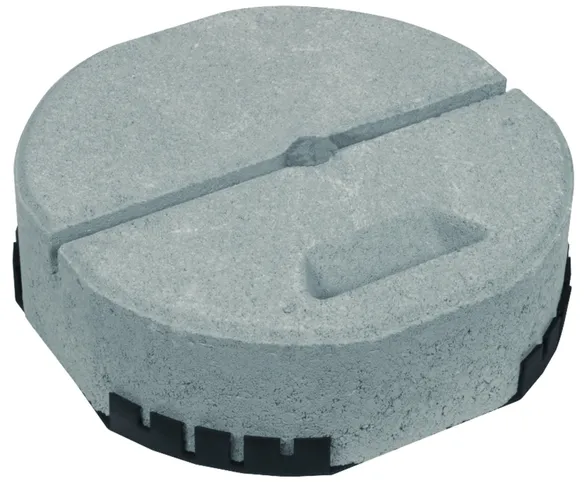

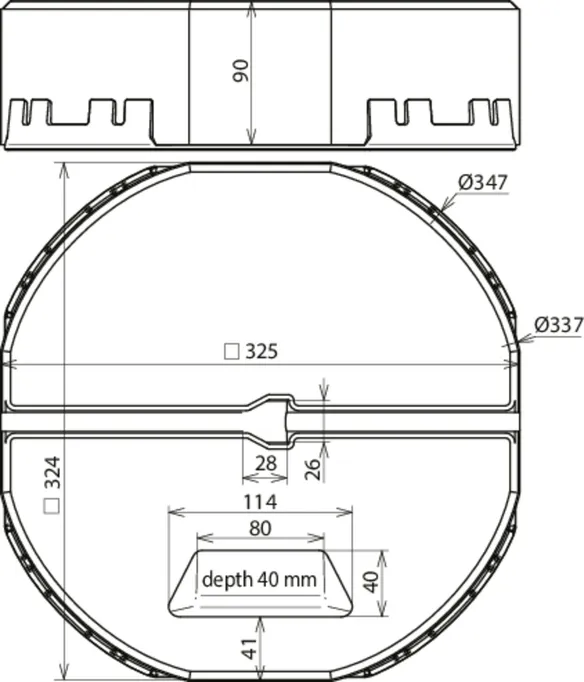

Weight 17 kg, concrete base with adapted base plate

Concrete base for air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors or for self-supporting air-termination rods with tripod. Stackable, with adapted plastic base plate, for air-termination rods Ø16 mm, chamered, tapered, or DEHNiso spacers Ø16 mm.
Art.-Nr. 102013
BES 17KG KT16 ULP D337
  • Loading
  •
  •
item

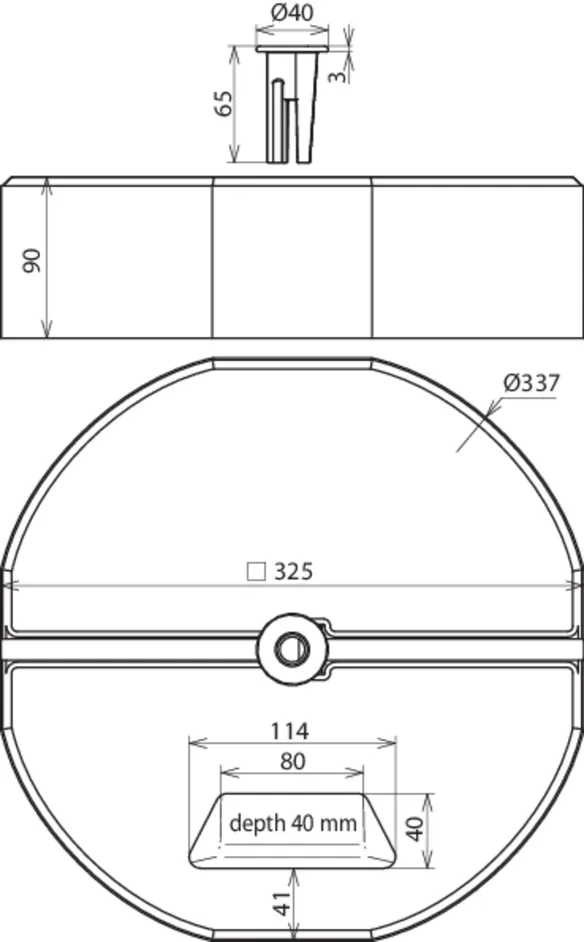

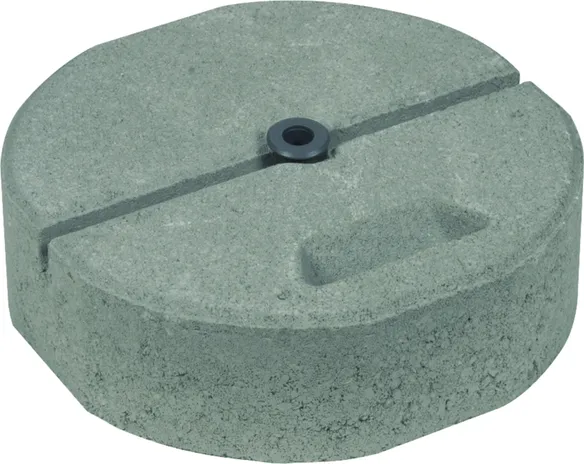

Weight 17 kg, with threaded adapter

Concrete base with threaded adapter for air-termination rods Ø16 mm with M16 thread, for protecting small roof-mounted structures on flat roofs.
Art.-Nr. 102002
BES 17KG M16 D337
  • Loading
  •
  •
item

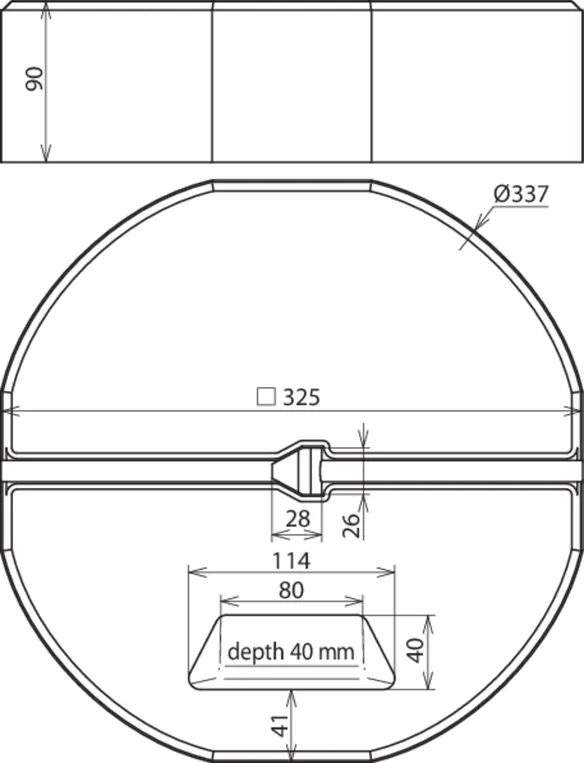

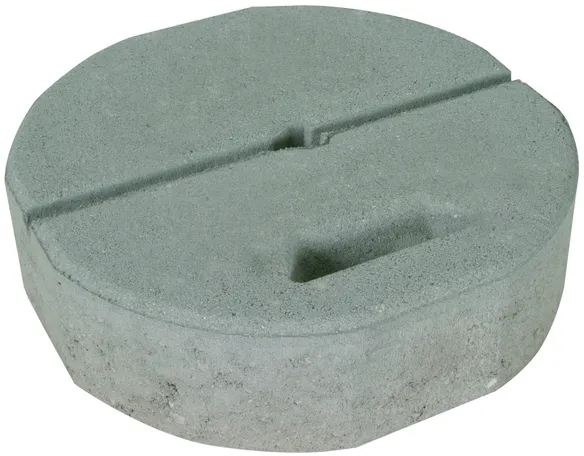

Weight 17 kg

Concrete base without wedge for the erection of tripods and four-legged stands with M16 base support rods (e.g. part no. 107 390 + 107 396 ...).
Art.-Nr. 102012
BES 17KG KT16 D337
  • Loading
  •
  •
item

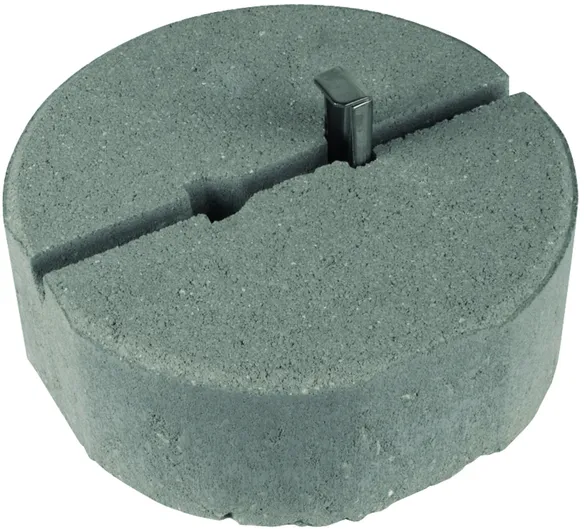

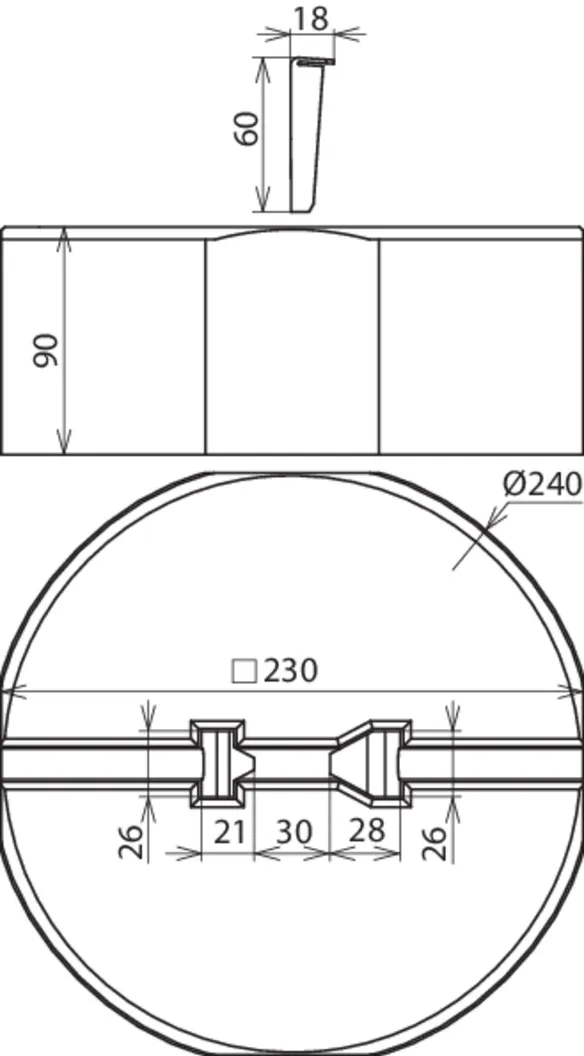

Weight 8.5 kg, with fixing wedge

Concrete bases for air-termination tips Ø 10 mm (length 1000 mm) for protecting small roof-mounted structures on flat roofs and for installing spacers, e.g. for isolated ring conductors with DEHNiso spacers Ø 16 mm, length up to 675 mm (distance 0.8 m).
Art.-Nr. 102075
BES 8.5KG KT10 16 D240 SET
  • Loading
  •
  •
item

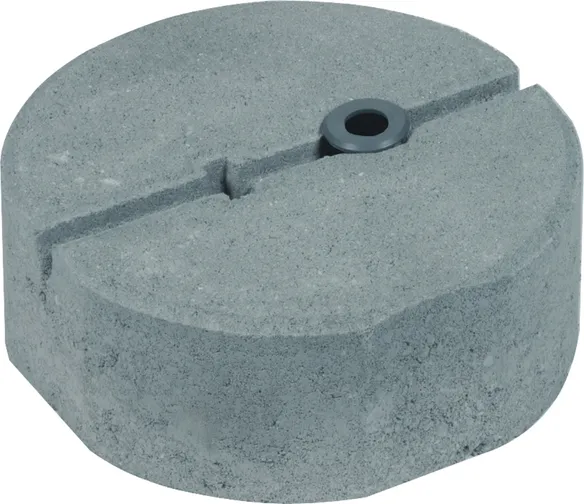

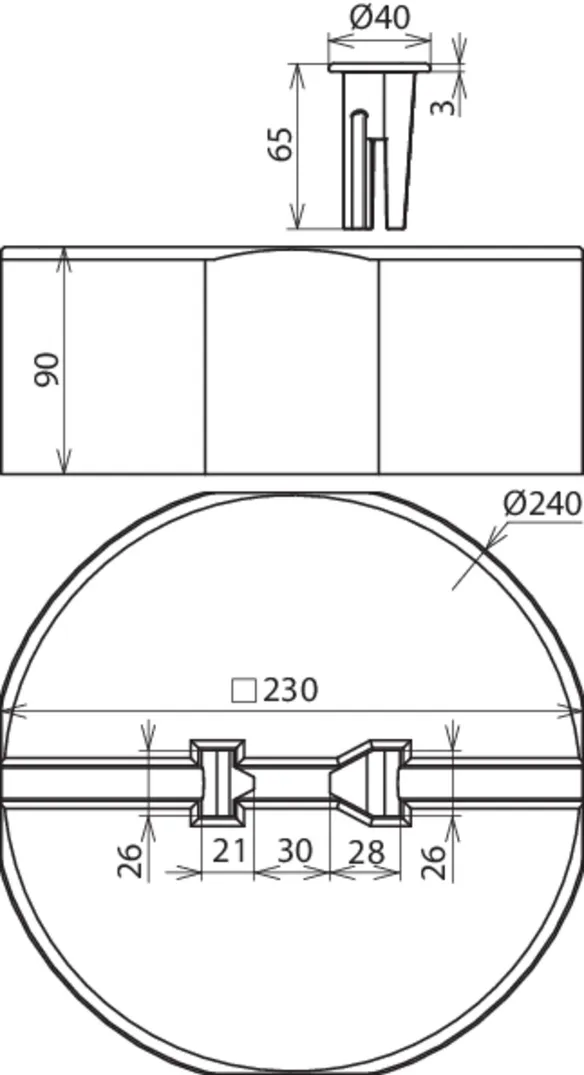

Weight 8.5 kg, with threaded adapter

Concrete base with threaded adapter for air-termination rods Ø16 mm with M16 thread, for protecting small roof-mounted structures on flat roofs and additional fixing e.g. with DEHNiso spacer.
Art.-Nr. 102003
BES 8.5KG M16 D240
